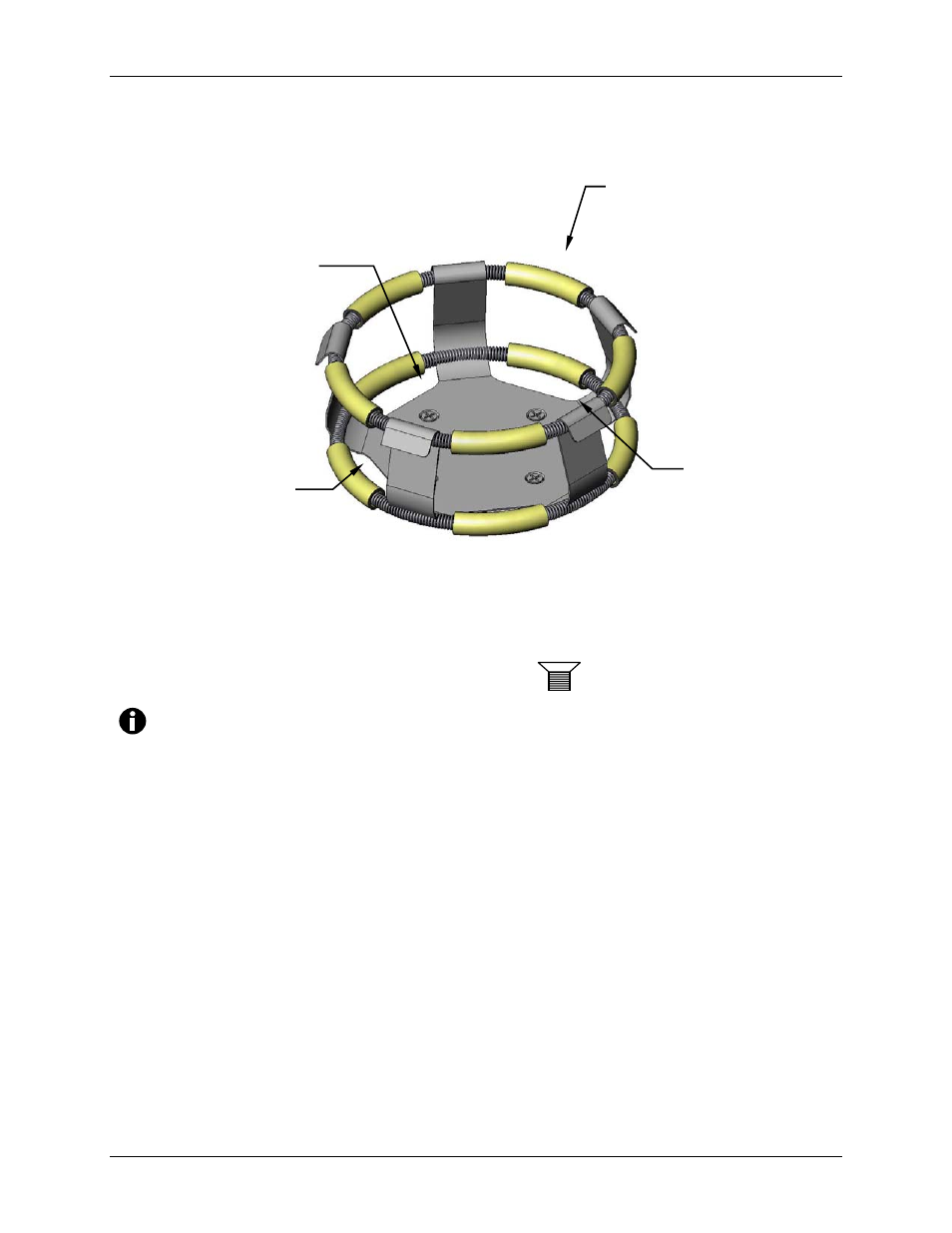

Figure 11a: 2- & 2.8-Liter Clamp Installation
Figure 11b: Clamp Fastener

The upper girdle secures the flask within the clamp, and the bottom girdle
keeps the flask from spinning.
7.3 Installing/Sliding out Platform
The I-26/I-26R is delivered with the subplatform bolted in place on the bearing housing.
The addition of a platform is required for shaker operation.
Installing a platform of any variety is very easy:
1. Remove the two knobs and washers on the front of the subplatform.
2. Using the side handles of the platform (see Figure 12), place the platform on the
guide strips on the flat of the open door.
3. Push it toward the rear of the unit, aligning the bottom of the platform with the top of
the subplatform, and making sure the sides are squared up with the subplatform sides.
4. When it is fully inserted and mated to the subplatform, replace the washers and knobs
on the subplatform.
UPPER GIRDLE
WITH GIRDLE
TUBES
LOWER
GIRDLE WITH
GIRDLE TUBES
CLAMP
MOUNTING
HOLES (5)
CLAMP BODY
(LEGS AND BASE)
