I-26/26R Incubator Shakers M1324-0050

Operating Manual

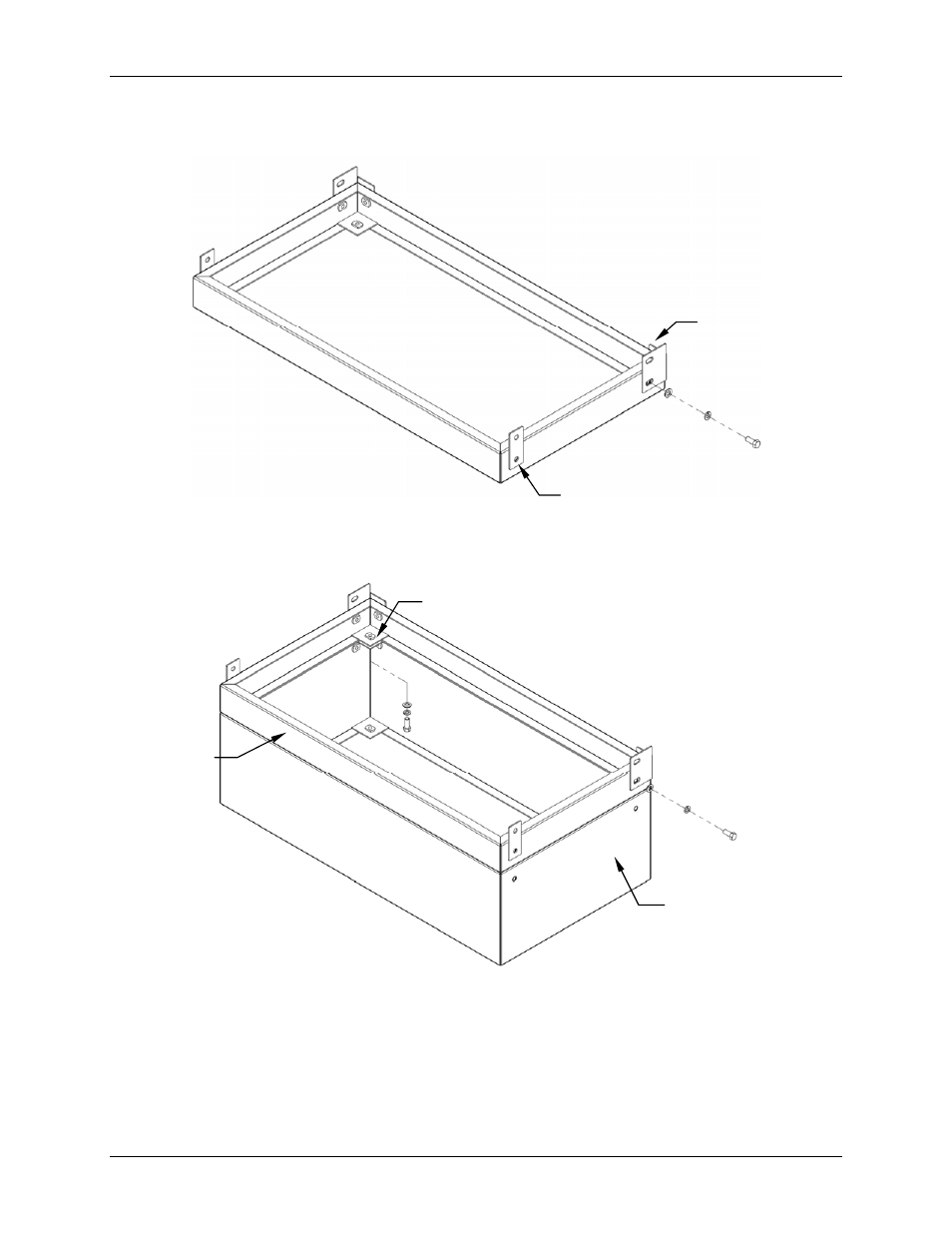

Figure 3a: Optional Short Base, 10.2 cm (4 in)


Figure 3b: Optional Tall Base, 43.2 cm (17in)

4. As shown in Figures 3a-b, depending on the height of your base, install the front side

braces and rear corner braces on the base with the hardware provided, matched to the
holes in the base.

REAR CORNER
BRACE

FRONT SIDE BRACE

33 cm (13 in) BASE

10.2 cm (4 in)

BASE

BASE MATING SUPPORTS
