2.3 Main illustration

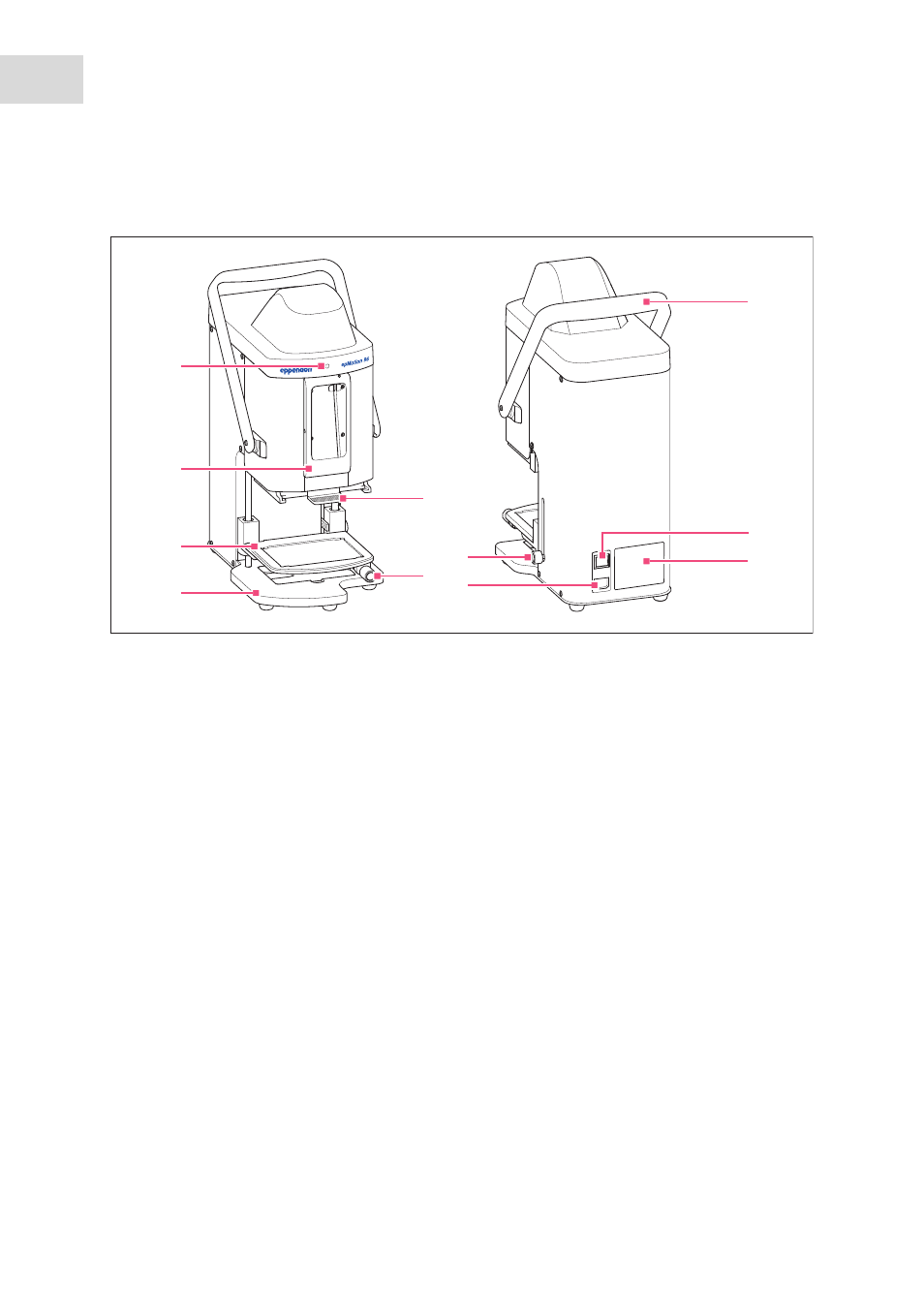

Abb. 2-1: Front and rear view
Fig. 2-1: Front and rear view
1 Status lamp
Green – pipetting device is activated
Blue – pipetting device is in operation
Red – pipetting device has stopped, awaits
confirmation
2 Docking station
For Apple iPod touch
3 Lifting table
4 Base
With adapter for 384-well plate
5 Loading frame
Bracket for tray with epT.I.P.S Motion Reloads
6 Locking handle
Fix the lifting table in working position
7 Locking handle
Fix the stop for lifting table
Fix the stop for the automatic dosing unit
8 Mains/power connection
With bracket for micro fuses
9 Lever
Locking or unlocking loading frame with 
pipette tips
10 Mains switch On/Off
11 Name plate
