Aerovent IM-201 13

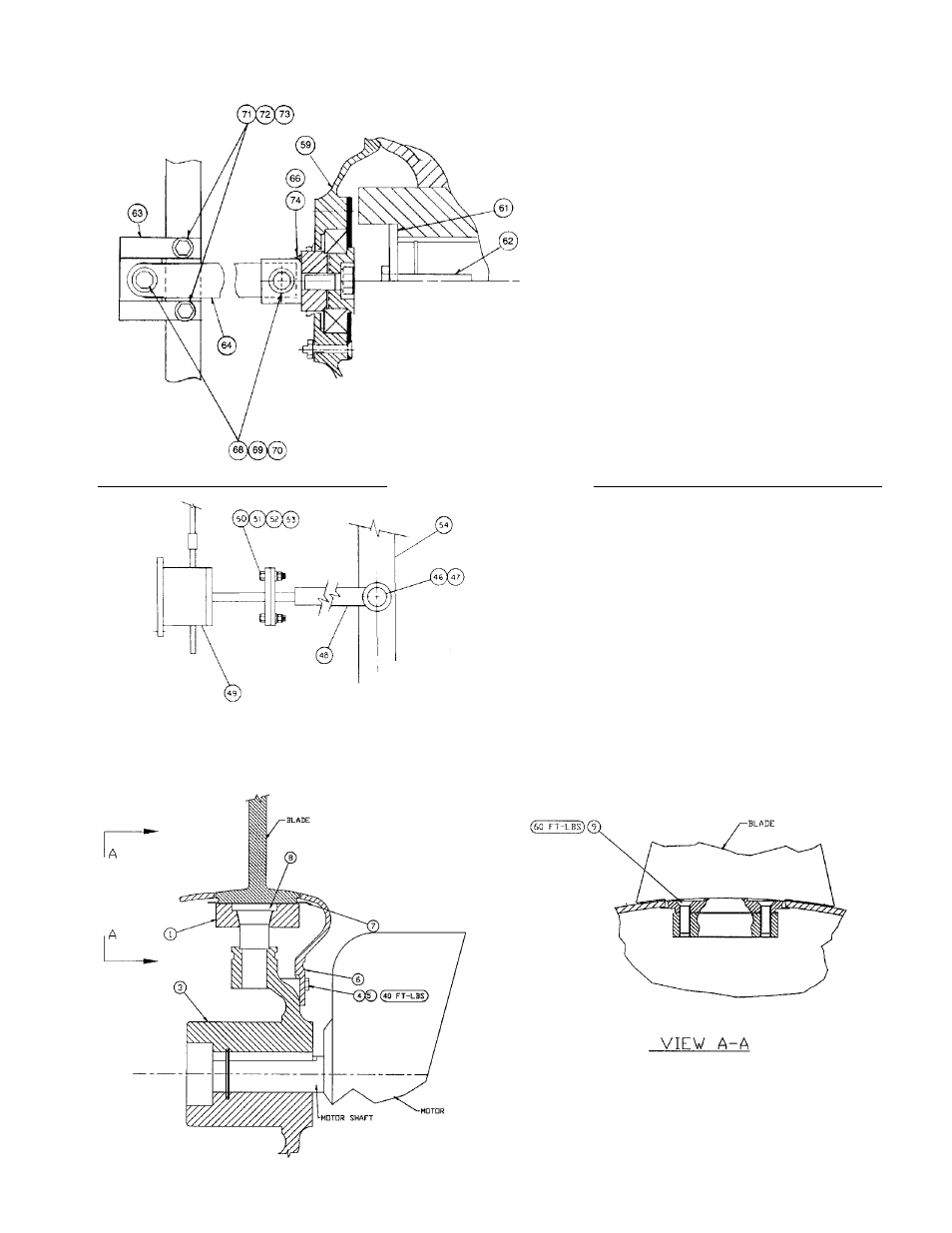

AXICO ® FPMC IMPELLER MODIFICATIONS
AXICO ® FPDA IMPELLER PARTS
1. BLADE RETAINER
P/N F201328
2. BLADE
3. HUB
4. HEX HEAD SCREW
5. LOCK WASHER
6. FAIRING
7. AIR SEAL
8. BLADE SHAFT
IF 050 OR 080 HUB: P/N F20132701
IF 063 HUB: P/N F20132702
9. BLADE BOLT: P/N F10022241
46 PIN F1004306
47 COTTER PIN
48 CLEVIS F10031508
49 JACTUATOR F100653
50 BOLT 1 ⁄
4
-20 x 1.25 F10032310
51 NUT 1 ⁄
4
-20 F10032403
52 WASHER 1 ⁄
2
F10044603
53 LOCKWASHER 1 ⁄
4
F10044703
54 BAR F201092
FPMC WITH BAR
59 COVER, 5 OR 6 HUB F301407
COVER, 8 HUB F301408
61 WASHER
62 BOLT
63 BEARING HOLDER
64 ACTUATOR LINK
66 GREASE
68 BOLT
69 NUT
70 WASHER
71 BOLT
72 NUT
73 WASHER
74 FITTING, GREASE
BAR
JACTUATOR FPMC
