Im-205, Fiberglass propeller assembly instructions

background image

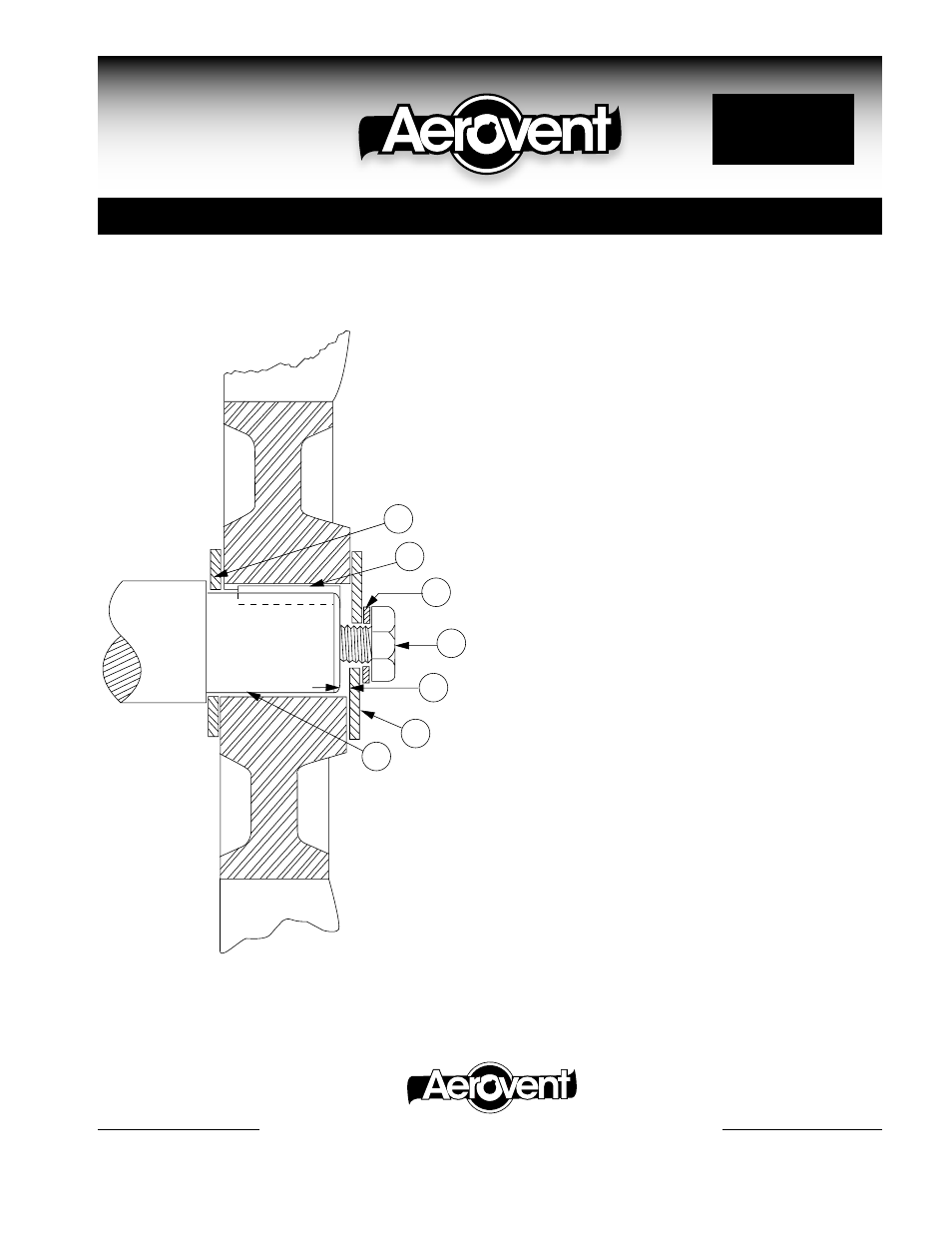

PARTS
A - Flat Washer — Stainless steel
B - Shaft Key — Stainless steel
C - Lock Washer — Stainless steel
D - Hex Head Bolt, R.H. Thread — Stainless steel
E -

1

8

" Minimum Gap — Between end of shaft and

washer
F - Flat Washer — Stainless steel
G - Shaft Turndown —

1

8

" on shaft diameter through

3

4

";

1

4

" on shaft diameter 1" and larger.

ASSEMBLY
1. 10 ga. stainless steel washer (A) must be placed on shaft.
2. Insert key in keyway.
3. Align keyway in propeller hub with key on shaft, and push

propeller onto shaft.

4. Place second stainless steel 10 ga. washer on shaft. Must

have

1

8

" minimum gap. If gap is less than

1

8

", add a second

washer (A).

5. Place stainless steel lock washer (C) on hex head. Bolt and

tighten securely.

6. Rotate propeller by hand to check tip clearance of propel-

ler blades to fan housing.

Fiberglass Propeller Assembly Instructions

A

B

C

D

E

F

G

©1997 Aerovent

General Installation, Operation and Maintenance Instructions For Aerovent Products

IM-205

June 1997
