12 Aerovent IM-201

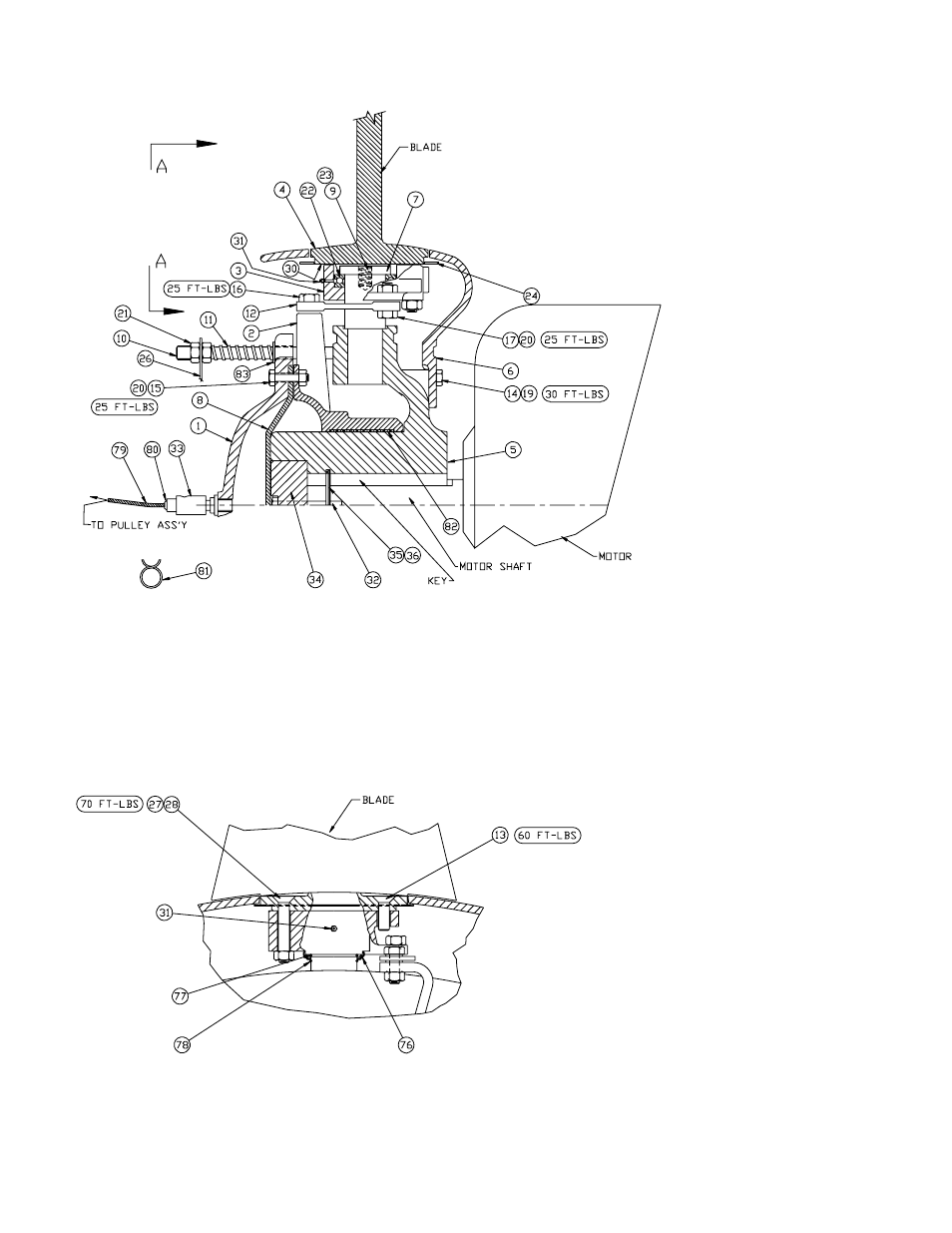

AXICO ® FPAC IMPELLER PARTS
1. DIAPHRAGM COVER
2. SPIDER
3. BEARING HOUSING
4. BLADE
5. HUB
6. HUB FAIRING
7. SHAFT BLADE
8. DIAPHRAGM
9. PLUNGER
10. STUD
11. SPRING
12. LINK
13. SOC HD SCR
14. HEX HD SCR
15. HEX HD SCR
16. HEX HD SCR
17. HEX HD SCR
19. LOCK WASHER
20. HEX NUT
21. HEX NUT
22. BLADE BEARING
23. SPRING
24. AIR SEAL
26. PLATE
27. SOC HD C’SK SCR
28. NUT
30. GASKET
31. GREASE FITTING
32. ROTOR BOLT
33. ROTORY UNION
34. HUB WASHER
35. SNAP RING
36. THRUST WASHER
76. GREASE SEAL
77. WIRE SEAL
78. O-RING
79. CABLE ASS’Y
80. PAN HD SCR
81. HOSE CLAMP
82. TEFLON SLEEVE
83. OILITE BUSHING
DWG.: 101236
