18
1.

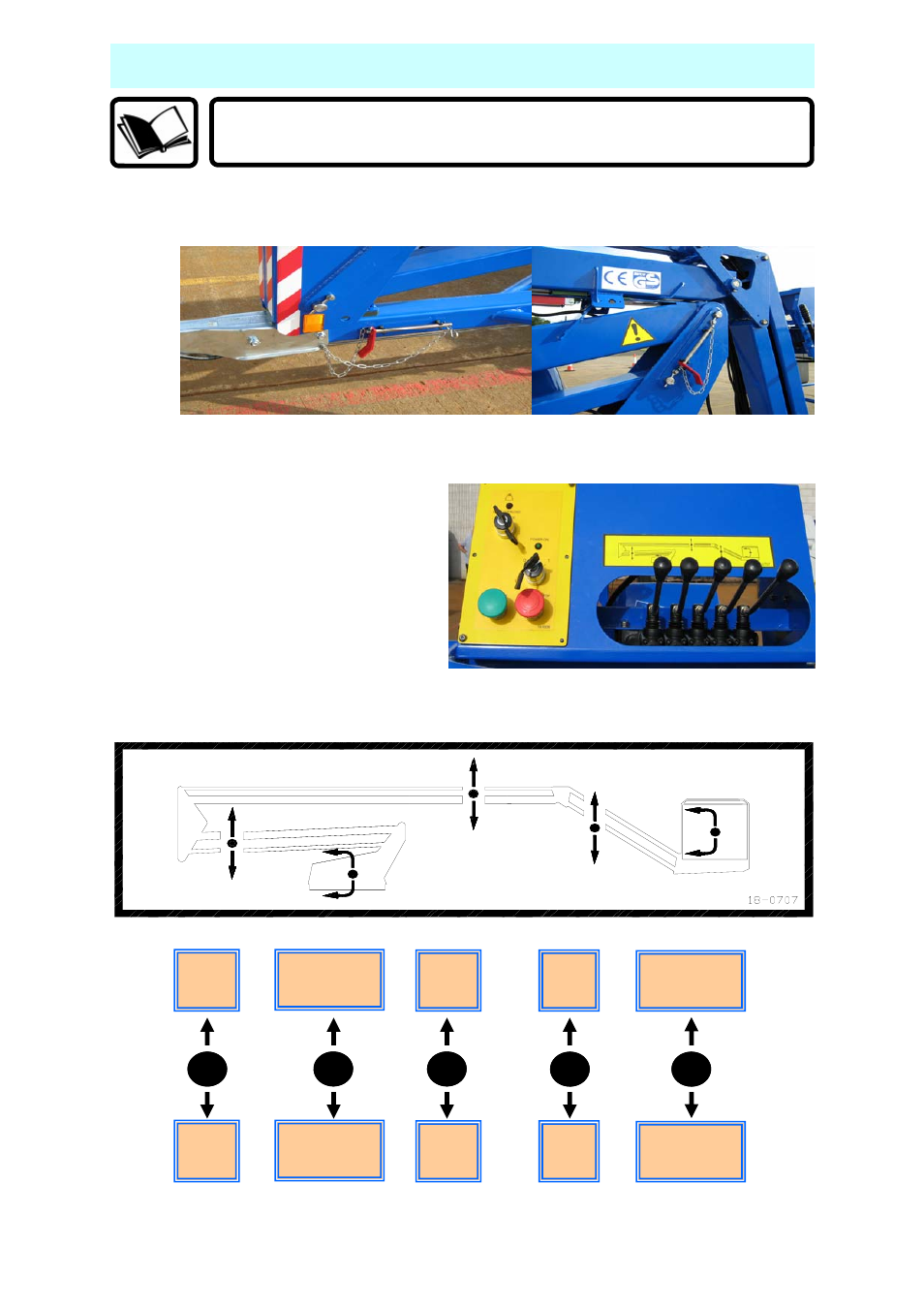

Remove and correctly stow the Transit Pins, from both the Upper and Lower
Booms.
2.
At the Ground Control Station, turn the key to ‘Basket’ (See point #6.)
3. Climb into the basket. Check
that all Emergency Stop Switches
are released (twisting release).
The platform may now be raised,
lowered or slewed in any
direction by operating the
control levers at the basket,
whilst depressing the motor run
button (DEADMAN).
4.
Explanation of the Basket Control Station, Directional Control Levers
Lower
Flick
Slew
Basket
Lower
Upper
Lower
Lower
Slew
Turret
Raise
Flick
Slew
Basket
Raise
Upper
Raise
Lower
Slew
Turret
EXTENDING STRUCTURE
The SET-UP section of this manual MUST be completed before
extending the structure.
