7
Fold Down Guardrails
This procedure is only for passing through doorways.
Guardrails must be returned to proper position before
using the machine.
Fold Down Procedure (Figure 6)
Note: When performing the following procedures
retain all fasteners.
1. Place controller on platform.
2. Starting at the front of the platform, remove nuts,
bolts and washers from the top of the front guardrail.
Fold the front guardrail down onto the platform.
3. Close and latch the gate.
4. Remove nuts, bolts and washers from the top of the
rear guardrail. Fold the rear guardrail down onto the
platform being careful to keep gate latched at all
times.
5. Remove nuts, bolts and washers from the top of the
side guardrails and from the slideout deck midrail. Lift
up and fold one side guardrail in so it rests on the
deck. Repeat with other side guardrails.
Erection Procedure
1. Raise side guardrails making sure each is pushed
down to secure the guardrail in the vertical position.
2. Install bolts, washers and nuts between the side
guardrails, tighten securely.
3. Raise rear guardrail assembly, aligning holes and
install bolts, washers and nuts. Tighten securely.
4. Raise front guardrail, aligning holes and install bolts,
washers and nuts. Tighten securely.
5. Hang controller from front guardrail.
6. Before operating work platform check that all fas-
teners are in place and properly torqued.
Before operating machine, guardrails must be
securely fastened in their proper position.
Double Deck Fold Down Procedure
(Figure 7)
NOTE: When performing the following procedures
retain all fasteners.
1. Place controller on platform.
2. Starting at the front; slide out deck, remove hardware
from top front corners of guardrails. Remove hardware
from the slide out deck side guardrail midrails. Also
remove hardware from the top of the sockets that
hold the slide out deck side guardrails to the deck.
Fold the side guardrails down onto the platform.
3. Follow step 2 to fold the front side guardrails on the
rear slide out deck.
4. Unlatch the gate so the left side guardrails can be
folded down in two separate pieces. Also remove the
hardware opposite the gate latch on the right side
guardrail so it can be separated into two pieces.
5. Lift up and fold side guardrails in so they rest on the
deck.
6. Lift up and fold front guardrail in so it rests on the
deck. Repeat for rear guardrail.

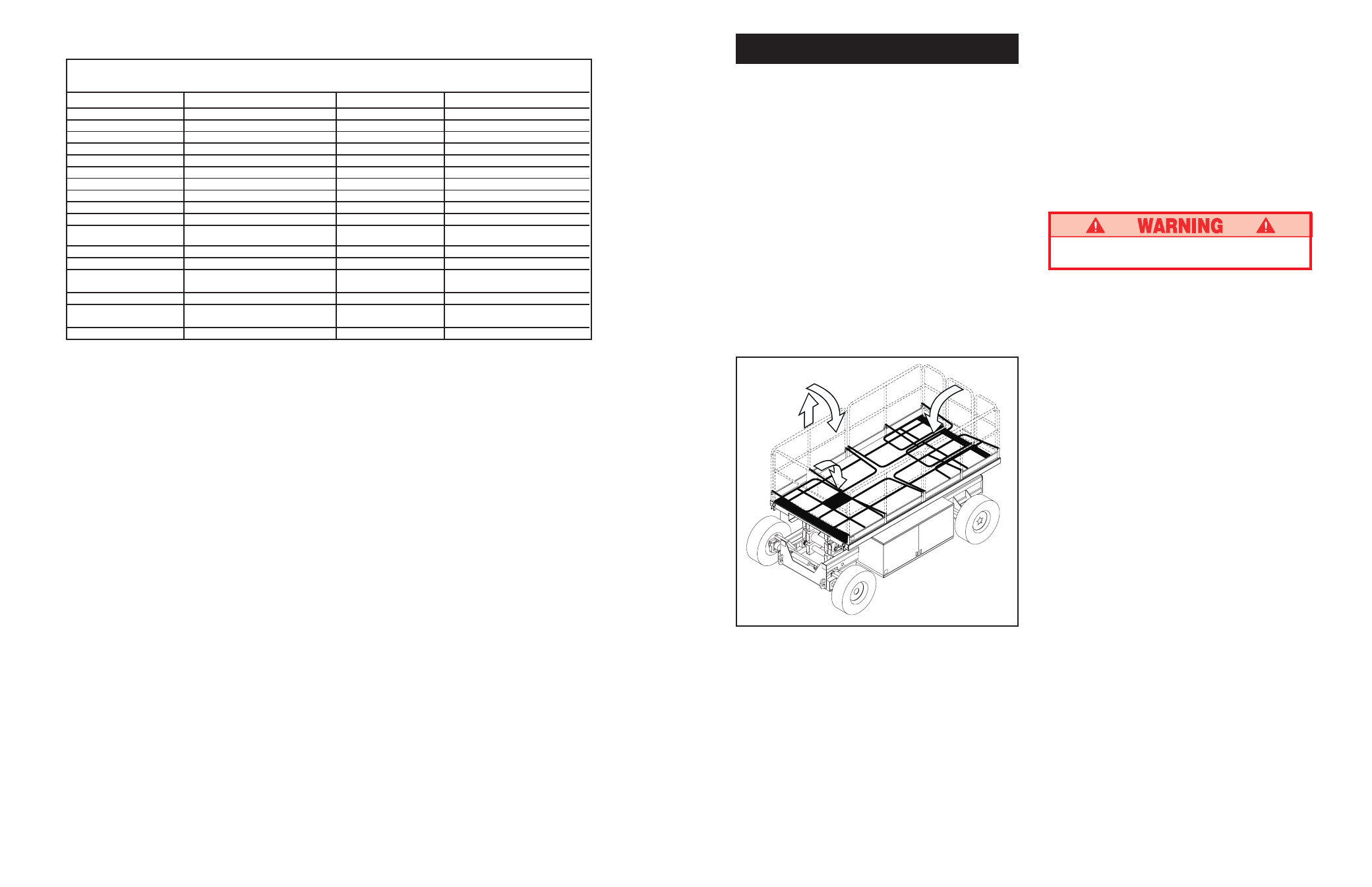

Figure 6: Fold Down Guardrails
42
UPRIGHT HYDRAULIC SCHEMATIC LX ELECTRIC & BI-ENERGY
PART NO. 67446-000
BRAKES FREINS Bremsen FRENOS
815 ORIFICE ORIFICE 815 Blende 815 ORIFICIO 815
LEFT GAUCHE links IZQUIERDA
RIGHT DROITE rechts DERECHA
SUCTION STRAINER CRÉPINE D’ASPIRATION Ansaugsieb FILTRO DE ASPIRACIÓN
TEST PORT PRISE D’ESSAI Prüfanschluß PUERTO DE PRUEBA
STEER DIRECTION Lenkung DIRIGIR
BRAKE RELEASE DESSERRAGE DES FREINS Bremsbetätigung QUITAR EL FRENO
BRAKE APPLY SERRAGE DES FREINS Bremse anziehen COLOCAR EL FRENO
BRAKE VALVE BLOCK BLOCAGE DE SOUPAPE DE FREIN Bremsventilblock BLOQUE DE VÁLVULA DE FRENO
PRESSURE SWITCH MANOSTAT Druckschalter INTERRUPTOR DE PRESIÓN
27.6 BARS (400 PSI) 27,6 bars (400 lb/po²) 27,6 bar (400 PSI) 27,6 bars (400 lb/plg 2 )
PUMP POMPE Pumpe BOMBA
MAIN RELIEF DÉCHARGE, PRINCIPALE Überdruck-Hauptventil ALIVIO PRINCIPAL
MAIN VALVE BLOCK BLOCAGE, SOUPAPE PRINCIPALE Hauptventilblock BLOQUE DE LA VÁLVULA
PRINCIPAL
RETURN FILTER FILTRE DE RETOUR Rücklauffilter FILTRO DE RETORNO
STEERING RELIEF DÉCHARGE, DIRECTION, Lenkentlastung ALIVIO DE LA DIRECCIÓN
103 BARS (1500 PSI) 103 bars (1500 lb/po²) 103 bar (1500 PSI) 103 bars (1500 lb/plg 2 )
LIFT CYLINDER VÉRIN DE LEVAGE Hubzylinder CILINDRO DE ELEVACIÓN
ENGLISH FRANÇAIS GERMAN SPANISH
