Section 2 - Service and Repair Outrigger Cylinder (Optional)
067448-003 LX31/LX41 Electric Work Platform Page 2-31

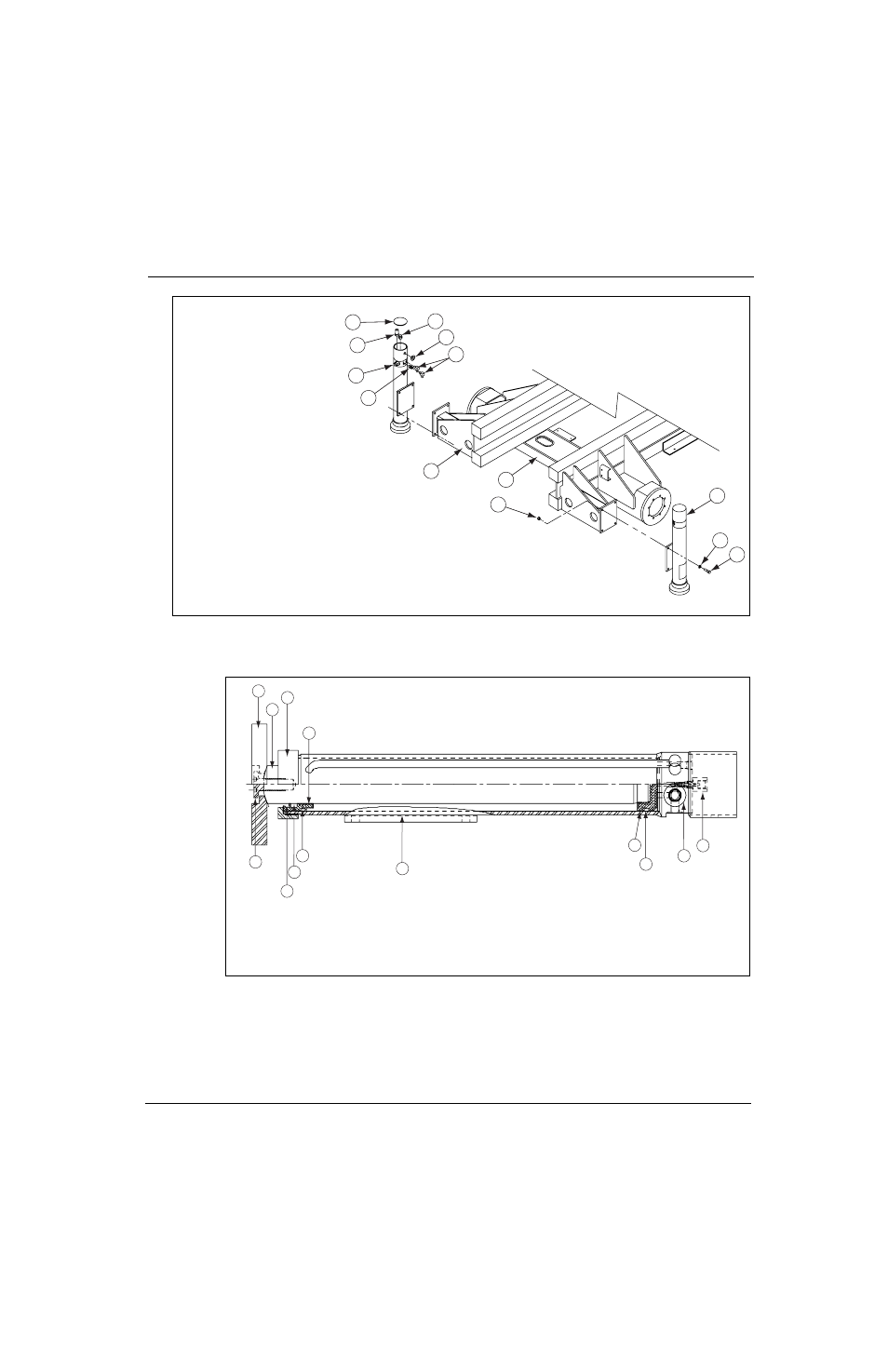

Figure 2-25: Outrigger Cylinder Installation
Figure 2-26: Outrigger Cylinder Cross Section
1 3
2
4
5
12
13
8
6
9
7
11
10
1 Plug
2. Pressure Switch (Outrigger Down Sensor)
3. Ball Switch (Outrigger Up Sensor
4. Cap Plug
5. Fitting 90°
6. Chassis Weldment
7. Capscrew
8. Outrigger Support Weldment
9. Outrigger Cylinder
10. Hex Nut
11. Washer
12. Counterbalance Valve
13. Fitting
6
8
1
7
2
5
4
9
10
11
12
13
3
1 Barrel Assembly
2. Rod
3. Piston
4. Seal Retainer
5. Head Cap 6. Sensor Assembly
7. Foot Pad
8. Counterbalance Valve
9. Foot Pad Bolt
10. Rod Wiper
11. Rod Seal
12. Static Seal #1
13. Piston Seal
