Blocking The Elevating Assembly Section 2 - Service and Repair
Page 2-8 067448-003 LX31/LX41 Electric Work Platform
2-3 B LOCKING T HE E LEVATING A SSEMBLY
W A R N I N G ! !
Never perform service on the machine in the elevating assembly area while platform is elevated without first
blocking the elevating assembly.
DO NOT stand in elevating assembly area while deploying or storing the brace.

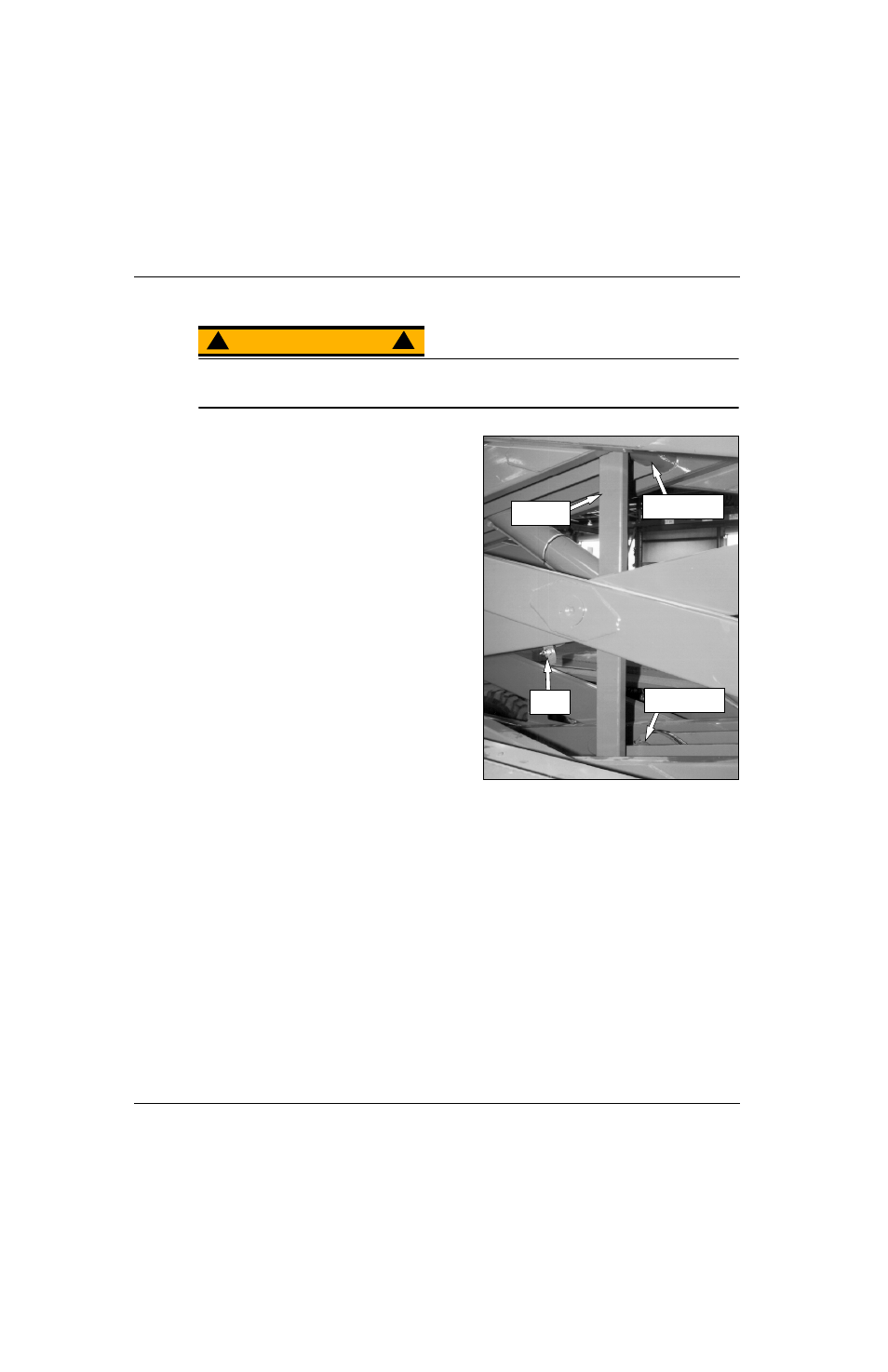

Figure 2-2: Blocking Elevating Assembly
I N S T A L L A T I O N
1. Place the machine on a firm level surface.
2. Pull the Platform Emergency Stop Switch ON.
3. Turn the Chassis Key Switch to CHASSIS.
4. Press the Raise Button and elevate the work plat-
form until the maintenance brace can be rotated to
the vertical position.
5. From the left side of the machine, disengage the
locking pin securing the brace. Rotate the mainte-
nance brace counterclockwise until it is vertical
and between the two elevating assembly center
pivots.
6. Press the Lower Button and gradually lower the
platform until the brace is supporting the platform.
R E M O V A L
1. Using the Chassis Controls, gradually elevate the
work platform until the maintenance brace clears
the two elevating assembly center pivots.
2. Rotate maintenance brace clockwise until the lock-
ing pin engages.
3. Press the Lower Button to completely lower the platform.
Upper Elevating
Assembly Pivot
Maintenance
Brace
Locking
Pin
Lower Elevating
Assembly Pivot
