Maintenance
B A T T E R Y M A I N T E N A N C E

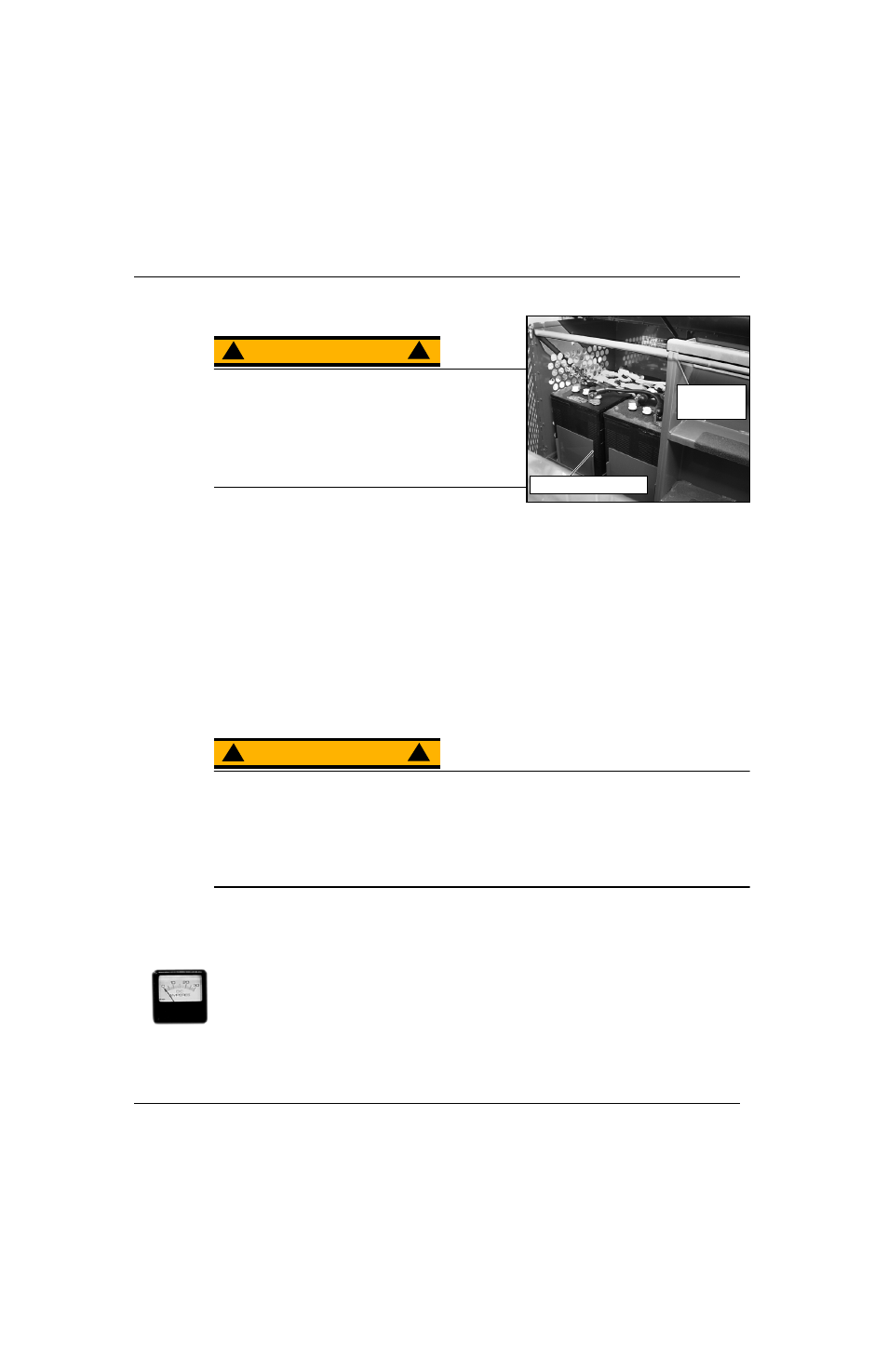

Figure 10: Battery Location
The batteries are located in the Control Module.
W A R N I N G ! !
Hazard of explosive gas mixture. Keep sparks, flame, and
smoking material away from battery.
Always wear safety glasses when working with batteries.
Battery fluid is highly corrosive. Thoroughly rinse away any
spilled fluid with clean water.
Always replace batteries with UpRight batteries or
manufacturer approved replacements weighing
48 kg (106 lbs.) each.
Check battery fluid level daily, especially if the machine is
being used in a warm, dry climate.
If the electrolyte level is lower than 10 mm ( 3 / 8
in.) above plates, add distilled water ONLY. Do not use tap
water with high mineral content; it will shorten battery life.
When night temperatures fall below 18°C (65°F), batteries charged in unheated areas should be charged
as soon after use as possible. Under such conditions a four hour charge cycle once a week in the early
afternoon will improve the state of charge and battery life.
The battery and cables should be inspected regularly for signs of cracks in the case, electrolyte leakage
and corrosion of the terminals. Inspect the cables for worn spots or breaks in the insulation and for broken
cable terminals.
Refer to the Service Manual to extend battery life and for complete service instructions.
B A T T E R Y C H A R G I N G
Charge the batteries at the end of each work shift or sooner if the batteries have been discharged. Dis-
charging a deep cycle battery to less than 1.75 Volts per cell can cause permanent damage.
W A R N I N G ! !
Charge batteries only in a well ventilated area.
Do not charge the batteries when the machine is near a source of sparks or flames.
Permanent damage to the batteries will result if the batteries are not immediately recharged after
discharging.
Never leave the battery charger operating for more than two days.
Never disconnect the cables from the batteries when the charger is operating.
Keep the charger dry.
1. Check the battery fluid level. If the battery fluid level is lower than 10 mm ( 3 /
8
in.) above the plates add
distilled water only.
2. Connect an extension cord (1,5 mm ² [12 gauge] minimum conductor diameter; 15 m (50 ft.) maximum
length) to the charger plug located in the control module behind the ladder.
3. The charger turns on automatically after a short delay.
• The charging current is displayed on the ammeter.
• The charging current drops off as the batteries charge.
• When fully charged, the ammeter shows “0” current.
4. The charger shuts off automatically.
NOTE: The battery charger circuit must be used with a GFI (Ground Fault Interrupt) outlet.
NOTE: DO NOT operate the machine while the charger is plugged in.
Eight 6 Volt Batteries
Battery Charger
located behind
ladder
