Page 14 067449-002 LX Electric Work Platform - Operator Manual

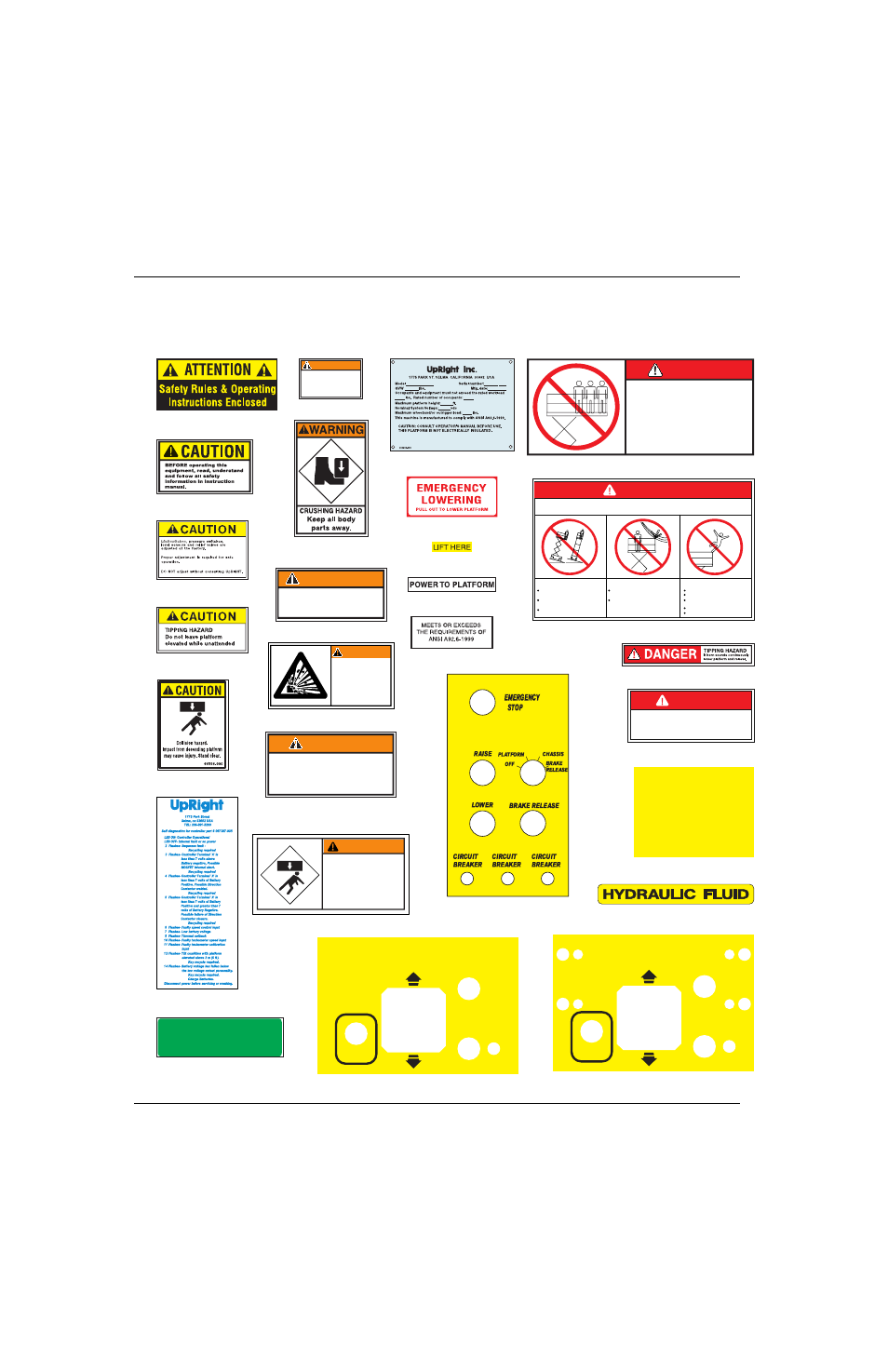

Labels
L ABELS
These labels shall be present and in good condition before operating the machine. Be sure to read, under-
stand and follow these labels when operating the machine.
010076-001 1
066555-000 3
066551-002 4
066556-000 5
067365-000 6
MAXIMUM WHEEL
AND/OR OUTRIGGER
LOAD 3900 LBS.
101252-013
LX31: 101252-013
LX41: 101252-014 7
066554-000 2
061205-005 14
TIP-OVER HAZARD
DANGER
Failure to read, understand and obey the following safety rules
will cause death or serious injury
DO NOT elevate or drive elevated on
slopes or soft ground
DO NOT drive into holes or over
drop offs
No more than two persons or 500 Lbs. on
slide out platform
ELECTROCUTION HAZARD
DO NOT operate within ten feet of power
lines. THIS MACHINE IS NOT INSULATED.
Look up, down and around for electrical
wires
FALL HAZARD
DO NOT climb on guardrail
Make sure gate is closed
and secure
DO NOT use ladders or scaffolding on platform
Make sure guardrails are fastened securely
DO NOT climb down scissors.
066550-009 20
066551-003 21
DANGER
TIP-OVER HAZARD
BATTERIES ACT AS COUNTERWEIGHT
EACH REPLACEMENT BATTERY MUST
WEIGH 120 LBS. (54 Kg.) OR MORE.
062562-002 22
MAINTENANCE BRACE
DEPLOY
TO STORE
The work platform must be on firm level surface.
Use chassis controls to elevate platform until the
brace can be rotated to the vertical position.
Pull the locking pin to release the brace. Rotate
the brace until it is vertical and between the two
scissor center pivot tubes
Use chassis contols to lower platform until the
brace is supporting the elevating assembly.
Use chassis controls to elevate platform until the
brace clears the two scissor center pivot tubes.
Rotate brace until the locking pin engages.
Lower platform.
066561-001 23
061197-000 24
067369-001 25
EMERGENCY
STOP
HIGH
SPEED LOW
SPEED
LIFT DRIVE
LOWER REV.
RAISE FWD
067642-012 26
WARNING
CRUSHING HAZARD
KEEP CLEAR OF
PLATFORM
LOWER PLATFORM
COMPLETELY BEFORE
SERVICING MACHINE
066568-000 13
066558-000 15
061515-000 16
068639-000 17
061220-002 18
066556-001 9
Outrigger Option
WARNING
068641-003
Do not turn chassis control switch
to the brake release position and
press the brake release button to
disengage the brakes without
restraining the machine from rolling.
068641-003 10
Explosive gas is
generated when
charging batteries.
Do not expose to
sparks or flames.
WARNING
066552-000 11
MAXIMUM DISTRIBUTED
PLATFORM LOAD 2000 LBS.
OR 5 OCCUPANTS
MAXIMUM SIDE LOAD 300 LBS.
WARNING
101250-009
LX31: 101250-008
LX41: 101250-009 12
LH FRT
EXTEND
RETRACT
LH AFT
EXTEND
RETRACT
RH FRT
EXTEND
RETRACT
RH AFT
EXTEND
EMERGENCY
STOP
RETRACT
HIGH
SPEED LOW
SPEED
OUTRIGGER
LIFT DRIVE
LOWER REV.
RAISE FWD
067642-010 Outrigger Option 26
066562-001 8
TIPPING HAZARD
Check tire pressure daily.
Pressure must be maintained
at 65 P.S.I. (4,4 Bar) lug tire
at 75 P.S.I. (5,2 Bar) highway
WARNING
066562-001
101251-001 19
DANGER
TIP-OVER HAZARD
MAXIMUM DISTRIBUTED LOAD
500 LBS. OR 2 OCCUPANTS
ON EXTENDED DECK
MAXIMUM SIDE LOAD 100 LBS.
