Section 2 - Service and Repair Steering Cylinder
067448-003 LX31/LX41 Electric Work Platform Page 2-27
2-12 S TEERING C YLINDER
R EMOVAL

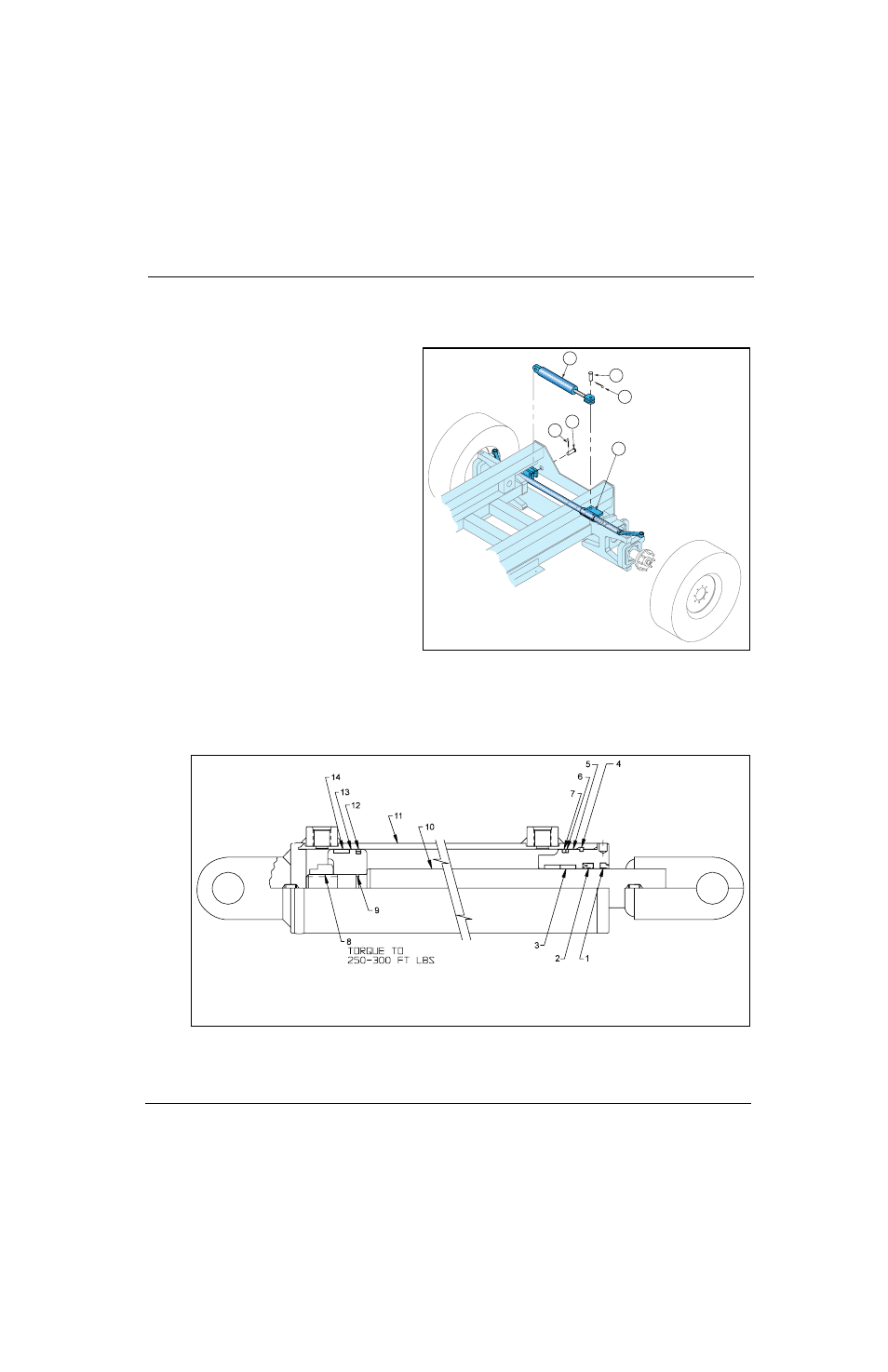

Figure 2-21: Front Axle Assembly, 4WD
1. Remove and cap the hoses. Mark
them for reference.
2. Remove the hair pin retainers from
the clevis pins at each end of the
cylinder.
3. Remove the clevis pins.
4. Remove the cylinder from the chas-
sis.
S EAL R EPLACEMENT
Refer to “Cylinder Repair” in the Gen-
eral Information section, and
Figure 2-22.
I NSTALLATION
1. Align the ends of the cylinder with
the mounts on the chassis.
2. Install the clevis pins.
3. Install the hair pin retainers into the
clevis pins at each end of the cylin-
der.
4. Install the hoses, noting their orientation markings from disassembly.
Figure 2-22: Steering Cylinder Cross Section
2
3
3
2
4
1
1 Steer Cylinder
2. Clevis Pin
3. Hair Pin Retainer
4. Steering Clamp
1 Rod Wiper
2. Rod Seal
3. Wear Ring (2 required)
4. Retaining Ring 5. Head
6. Backup Ring
7. O-ring
8. Locknut 9. O-ring
10. Rod Weldment
11. Tube Weldment
12. Piston Seal
13. Piston
14. Wear Ring
