AUTOMATIC HEIGHT SENSOR ADJUSTMENTS:
1. There are two height sensor locaĆ
tions.
Front sensor for GRADING.
Rear sensor for POURING.

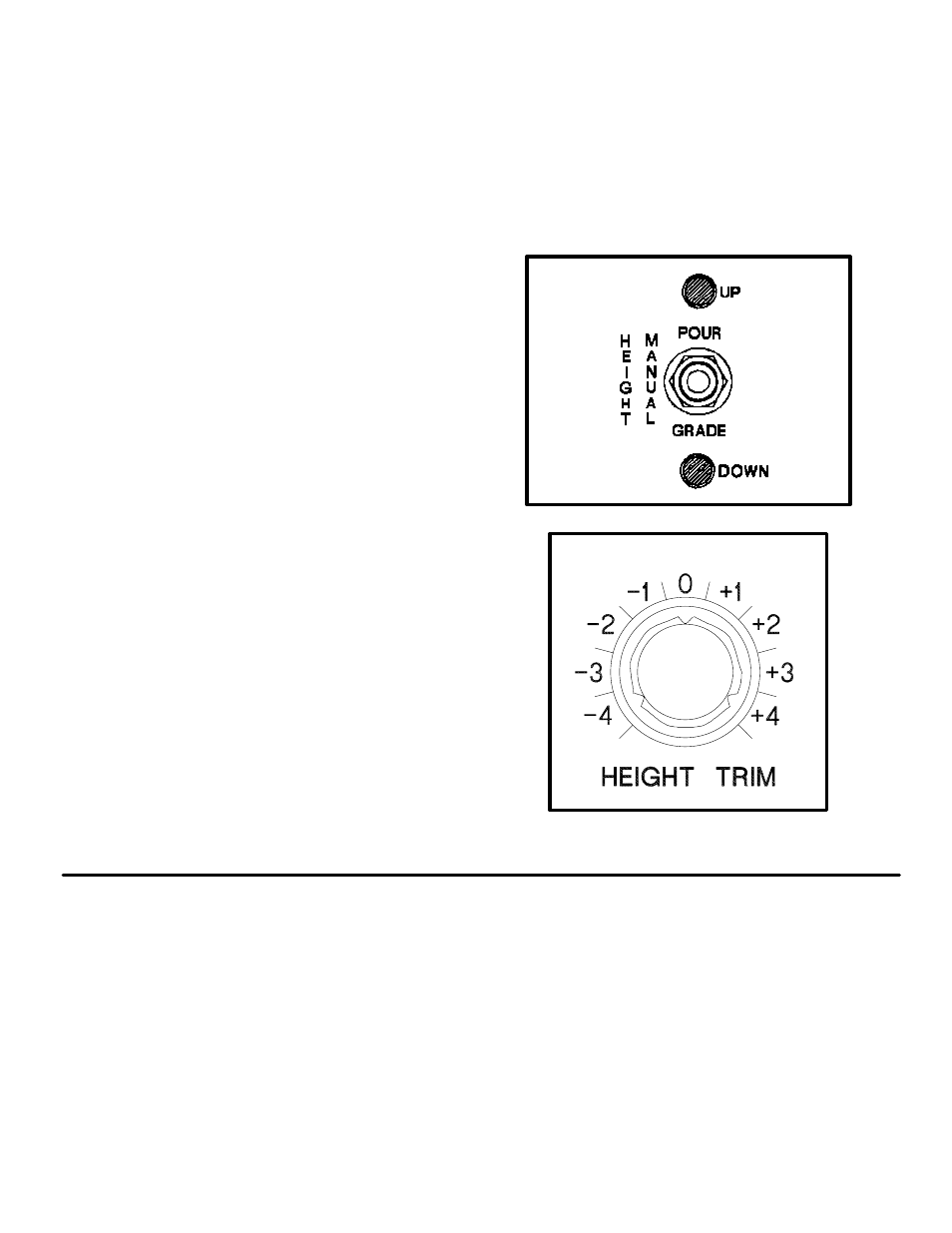

2. Check the Height Pour-Manual-
Grade indicator lamps. If neither
lamp glows, then height is
zeroed" and requires no further
adjustment.
3. If a lamp glows, adjust the Height
Trim potentiometer on the control
panel until both lamps are off.
When the wand is in a suitable
position and both indicator lights
are off the Height sensor is set.
Gently rotate the Height Trim Pot
Knob Lock clockwise. Note the
physical position of the machine
and sensor assembly for future refĆ
erence.
4. Turn the Auto Power switch off.
