25
SET-UP AND POURING INSTRUCTIONS
JOB SITE SET-UP FOR APĆ
PLICATIONS USING SIDE
DRIVE UNIT (24" AND
LARGER).

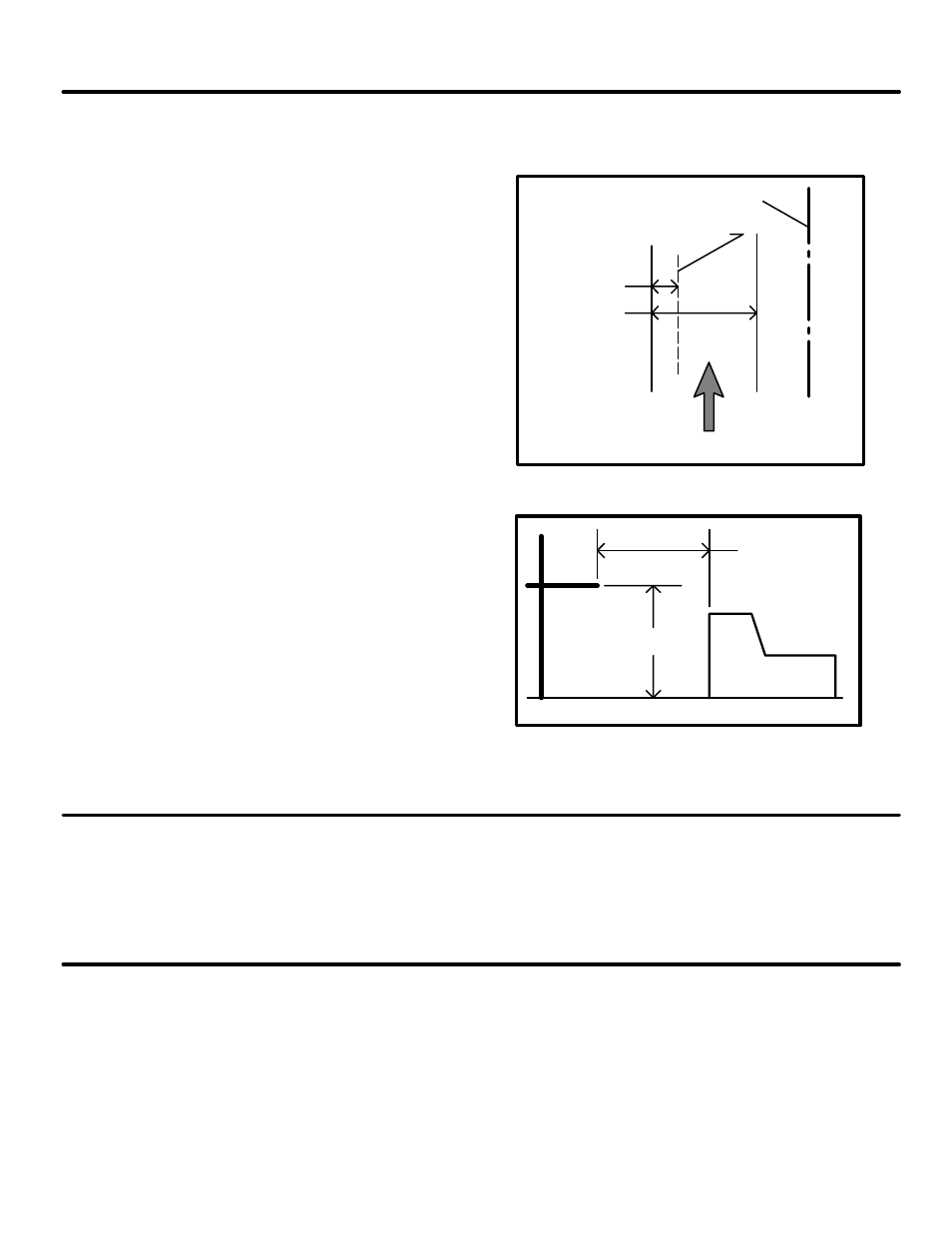

1. The road bed for the paver must be
graded up to approximately 10'
wide (depending on hopper size).
Begin about 2' outside the curb
edge to about 8' towards the center
of the roadway. The grading
should be approximately 8' beĆ
yond the curb end point. Grade
must be flat within approximately
1/2". Compacting the grade will
help provide traction for the paver.
ROAD CENTER LINE
CURB OUTSIDE EDGE
2'
8'
PAVER TRAVEL DIRECTION
2. Standard stakes, arms and string
line are suitable for the paver. The
string line should be set up approxĆ
imately 18" to 24" left of the curb
line (to the outside of the roadway)
and 18" to 24" above the grade.
Pull the string as tight as possible.
This will ensure the most accurate
operation of the paver's on-board
computer sensor system.
18"-24"
18"-24"
CURB & GUTTER POUR
NOTE: Recommended stringline setup for 24" hopper or above is 20" x 20"
MACHINE SET-UP:
1. Start the paver engine. (See Starting the Engine", page 16.)
2. Flip Main Power and Hydraulic Power ON.
3. Check all hydraulic functions.
