29
2. Flip the steering sensor selector
switch to front sensor and check
Steering Auto-Manual indicator
lamps. If neither lamp glows, then
the front steering sensor is
zeroed" and requires no further
adjustment. Proceed with adjustĆ
ing the rear steering sensor.
3. If a lamp glows, manually rotate the
front steering sensor wand slightly.
If the lamp turns off within about
1/2" of rotation, do not adjust the
sensor and proceed with adjusting
the rear steering sensor.
4. If the wand requires more than 1/2"
of rotation, loosen the wand countĆ
er balance weight and turn the senĆ
sor pot shaft with a screw driver
while gently holding the wand
against the string line. If the lamp
turns off within about 10_ of shaft
rotation, tighten wand weight and
proceed. If the pot shaft requires
more than 10_ of rotation move
the sensor in or out of the socket as
required and readjust wand and
pot shaft. When the wand is in a
suitable position and both indicaĆ
tor lights are off, the front steering
sensor is set. Note the physical poĆ
sition of the machine and sensor
assembly for future reference. ProĆ
ceed with adjusting the rear steerĆ
ing sensor.

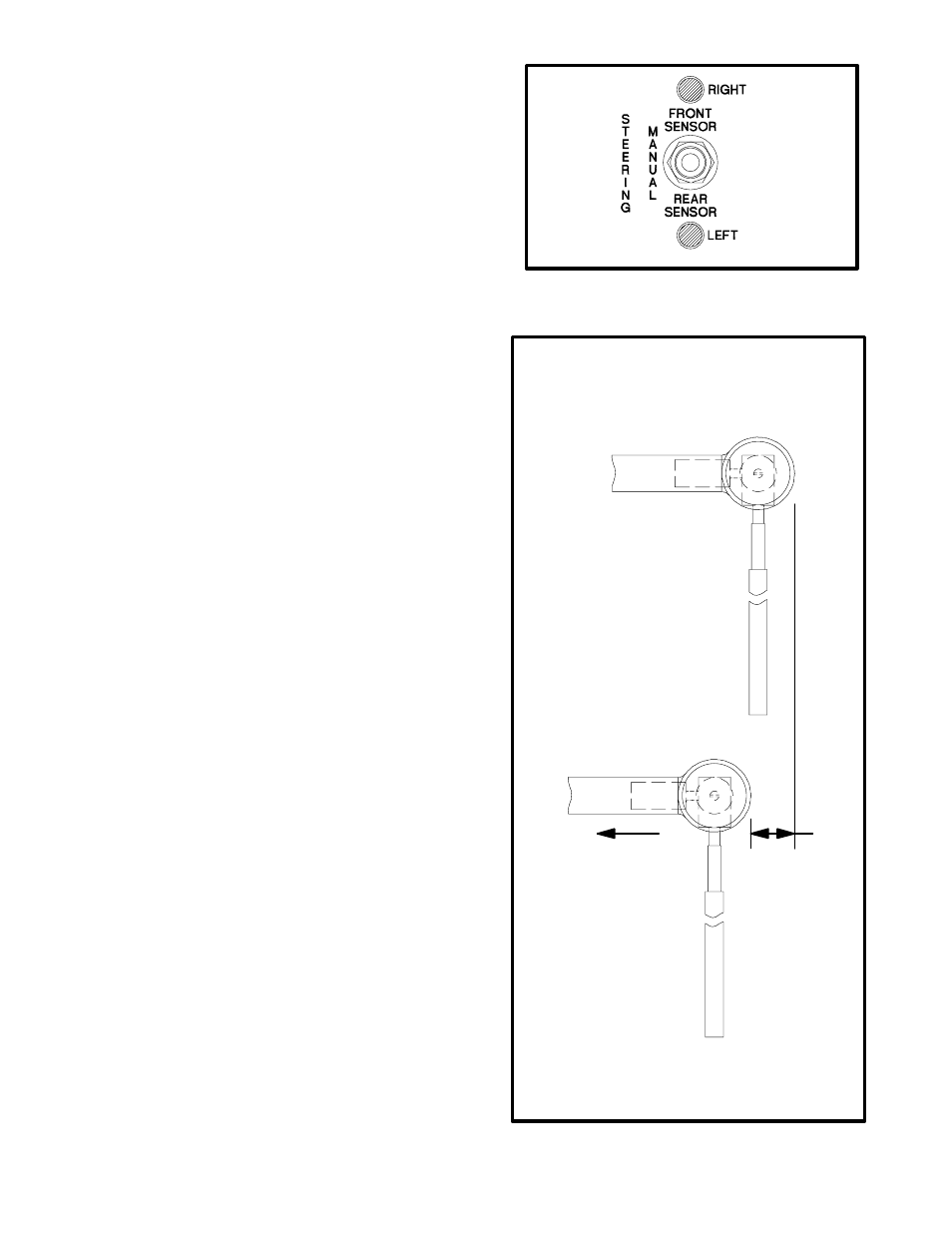

5. Flip the steering sensor selector
switch to rear sensor and repeat
steps 2, 3 and 4 for the steering
sensor. Note that once the rear
steering sensor is zeroed, the enĆ
tire sensor should be slid an addiĆ
tional 1" into socket (i.e. away from
the string line.)
1"
FRONT STEERING SENSOR
REAR STEERING SENSOR
MOVE IN
