26
JOB SITE SET-UP FOR APĆ
PLICATIONS USING CURB
ONLY (12" HOPPER):

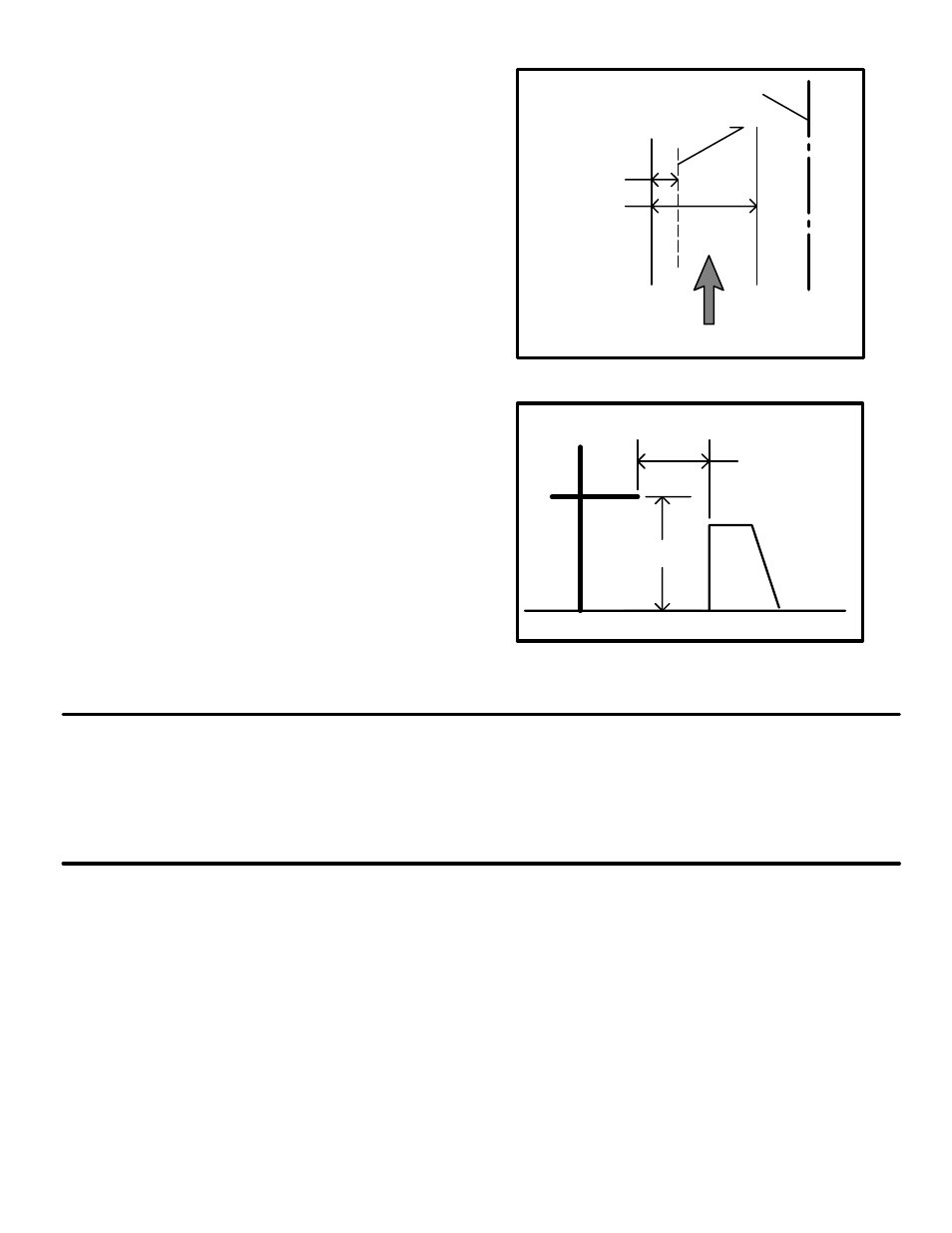

3. The road bed for the paver must be
graded approximately 6' wide. BeĆ
gin about 18" outside the curb
edge to about 6' towards the center
of the roadway. The grading
should be approximately 10' beĆ
yond the curb end point. Grade
must be flat within approximately
1/2". Compacting the grade will
help provide traction for the paver.
ROAD CENTER LINE
CURB OUTSIDE EDGE
18"
6'
PAVER TRAVEL DIRECTION
4. Standard stakes, arms and string
line are suitable for the paver. The
string line should be set up approxĆ
imately 6"-12" left of the curb line
(to the outside of the roadway) and
18" to 24" above the grade. Pull the
string as tight as possible. This will
ensure the most accurate operaĆ
tion of the Paver's on-board comĆ
puter sensor system.
6"-12"
18"-24"
CURB ONLY POUR
CURB & GUTTER POUR
NOTE: Recommended stringline setup for 12" hopper is 8" x 20"
MACHINE SET-UP:
4. Start the paver engine. (See Starting the Engine", page 16.)
5. Flip Main Power and Hydraulic Power ON.
6. Check all hydraulic functions.
