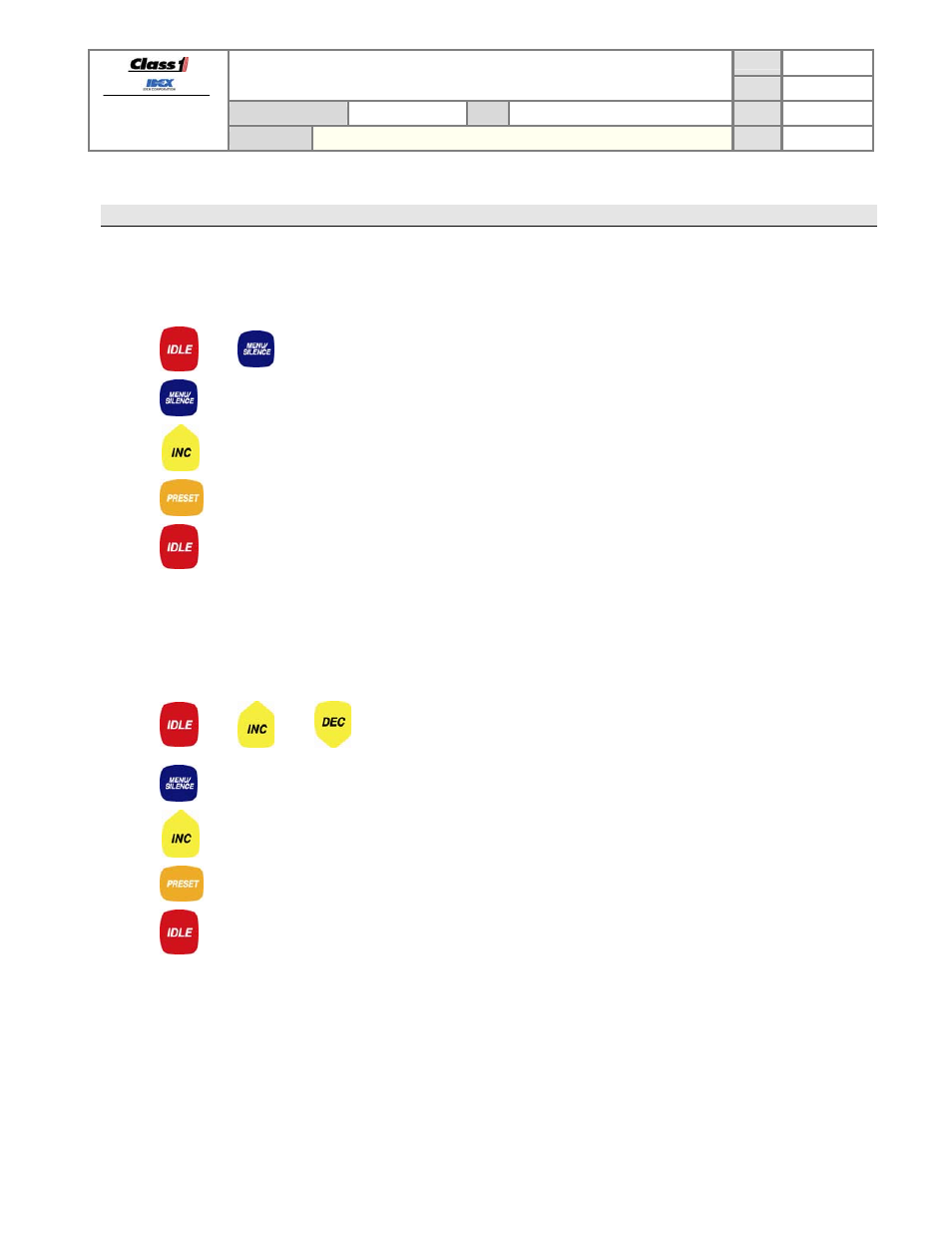

6. Configuration
6.1. Configure the unit of measure
The TPG+ can be configured for English (PSI, ºF) of Metric (kPa or bar, ºC) units of measure.
Follow the sequence below to set the unit of measure for the TPG+.
+ Display shows MENU 04 SECS and begins counting down. Continue holding IDLE and
MENU until the display shows *SETUP MENU* (4 seconds).
ONCE The display shows the menu item: UNITS: XXX/ºX.
ONCE Press the INC switch to select the desired unit of measure: PSI/ºF, kPa/ºC, or bar/ ºC.
ONCE
Press the PRESET switch once. The display shows ---STORED---. The unit of
measure has been saved.
ONCE
Press the IDLE switch once. The display shows —EXITMENU— and then restarts
normal operation.
6.2. Select pressure transducer range: 300 PSI (default) or 600 PSI
Normally the default 300 PSI transducer is sufficient for most pump applications but if a higher pump pressure range
is required the TPG+ can be programmed to use a 600 PSI transducer.
Follow the sequence below to select the desired pressure transducer range.
+ or
Enter menu level 3 by pressing and holding the IDLE switch while entering
the following password.
INC, DEC, DEC, INC, DEC, DEC, INC, INC
Toggle the MENU/SILENCE switch until the display shows XDCR= XXX.
(XXX = 300 or 600)
Press the INC switch to select the desired pressure transducer range (300 or 600).
ONCE
Press the PRESET switch once. The display shows --- STORED---. The pressure
transducer range has been saved.
ONCE
Press the IDLE switch once. The display shows —EXITMENU— and then restarts
normal operation.
