5. Governor Control Setup Menu
5.1. Engine
compatibility
The factory default settings of the TPG+ make it “out of the box” ready to operate a Cummins engine programmed
with the Emergency Vehicle Calibration. Typically, for the default configuration no values will require modification,
other than changing the desired engine rpm, high-idle rpm and pump pressure preset values.
The governor is capable of controlling any engine that allows J1939 PGN0 (Torque Speed Control) messages from a
unique source address. These engines include various Detroit Diesel DDEC engines, Mercedes Benz (MBE)
engines, Volvo, and others. The Scania engine allows control by proprietary J1939 messages and is supported by
the TPG. In cases where an engine does not support data link control, the TPG+ can be configured to control the
engine with an analog signal coupled to the engine remote PTO throttle input.
Contact Class 1 or visit our website (www.class1.com) for a complete engine compatibility list.
5.2. Enter the setup menu
The setup menu allows access to the configuration and calibration screens. The setup menu may be accessed
anytime the TPG+ is in
idle mode (see section 3.3.1).
There are 4 set up menus available: menu level 1 (basic setup menu), menu level 2, menu level 3 and menu level 4
(factory menu). All configurations and calibrations are saved in non-volatile memory and will not be lost with power
disruptions.

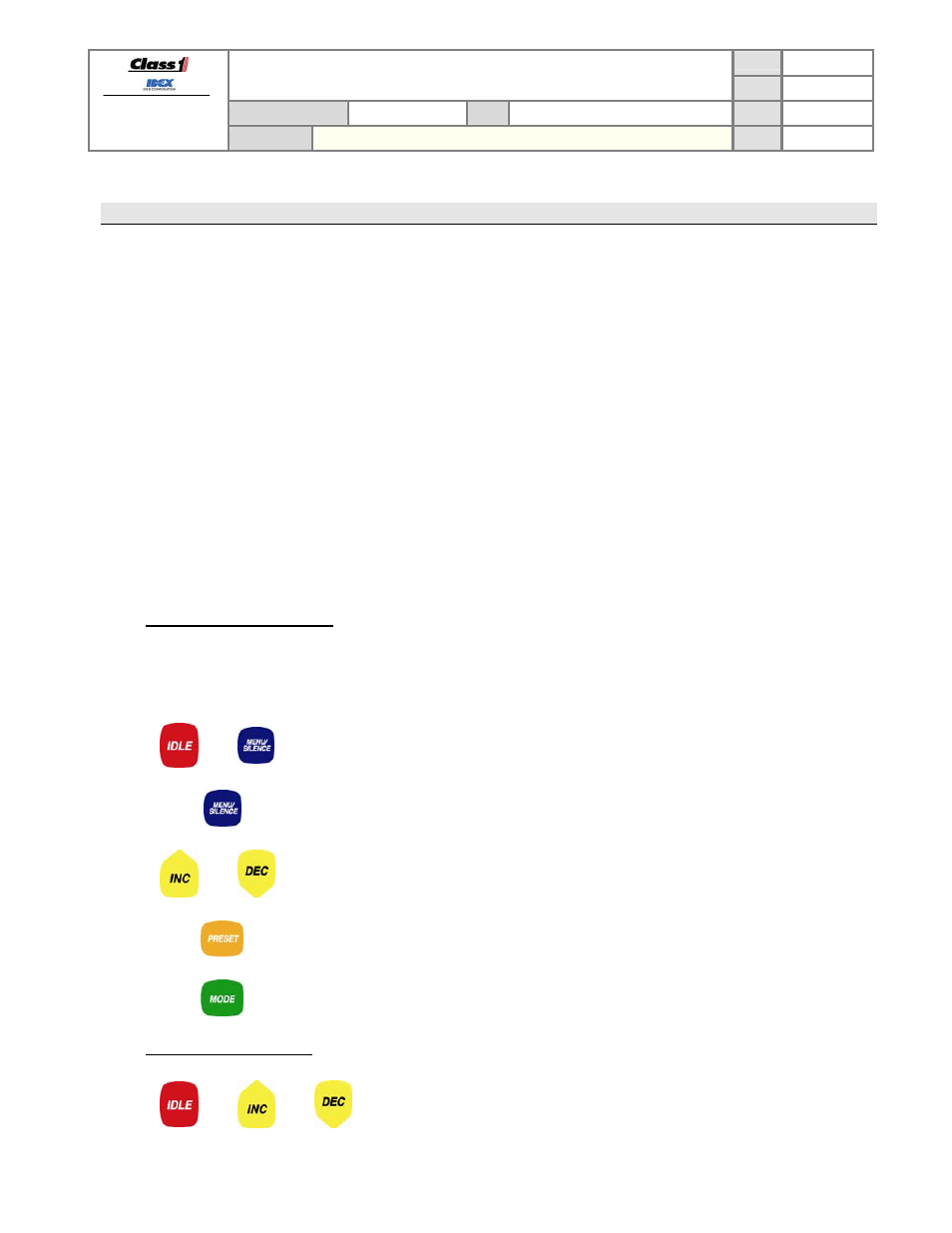

Standard menu level access
The standard menu level access method allows entry into menu levels 1, 2, or 3 only. Use the Direct menu level
access method to enter menu level 4. Once a menu level has been selected, subsequent menu access will always
enter that menu level and a system re-power is required to reset the first entry menu level.
+
Display shows MENU 04 SECS and begins counting down. Continue holding IDLE and MENU
until the display shows *SETUP MENU* (4 seconds) and then release the switches. (If menu level
2 or menu level 3 is desired continue to hold the switches until the display shows the desired menu
level then release).
Press the MENU switch to cycle through the available setup menu items.
or Press the INC or DEC switches to modify the current menu item.
Press the PRESET switch to store the configured menu item. The display will show ---STORED---.
Press the MODE switch to exit the setup menu. The display will show --EXITMENU-- and then
resume normal operation.
Direct menu level access
+ or
Enter a password while at idle to direct access a menu level.
INC, DEC, DEC, INC, DEC, DEC, DEC, INC = menulevel 1
INC, DEC, DEC, INC, DEC, DEC, INC, DEC = menulevel 2
INC, DEC, DEC, INC, DEC, DEC, INC, INC = menulevel 3
INC, DEC, DEC, INC, DEC, INC, DEC, DEC = menulevel 4
