26

CAT Wiring

Connector

DT06-4S

(C4)

T

erminal

Sockets

Position

Wire Color

Description

4-1

RED

+ 12 VDC

4-2

Black

Ground

3

Plug

NC

4

Plug

NC

Connector

DT06-12S (C12)

T

erminal

Sockets

Position

Wire Color

Description

1

Red

NC

2

White

OEM Interlock

3

White

High Idle

4

Brown

CA

T

ID

Input 12 VDC

5

Black

Sensor Ground

6

Red

Sensor V

oltage

7

White

Sensor Signal

8

Y

ellow

Control Signal

9

Black

NC

10

White

PT

O Interlock

1

1

Orange

Enable Input

12

Blue

Enable Output

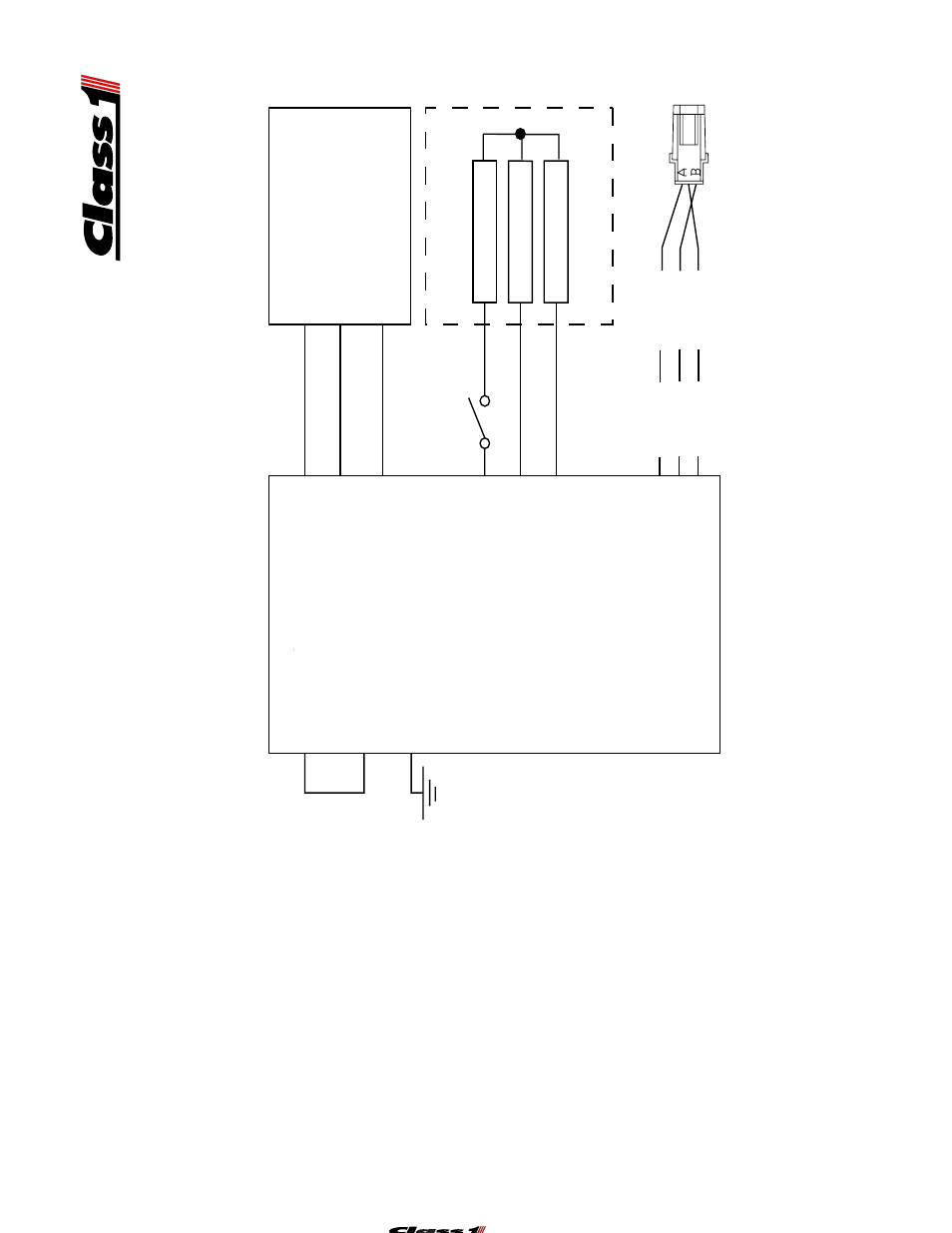

Pressure Governor

12 VDC

C4-1

CAT ID

C12-4

C4-2

Ground

PWM Signal

C12-8

Enable Input

C12-11

Enable Output

C12-12

12 VDC

Pump Engaged

OEM Interlocks

FAST IDLE

High Idle C12-3

Throttle Ready C12-2

Pump Engaged C12-10

CAT ECM Terminals

68 Remote Accelerator

03 Input Sensor Common

56 PTO ON/OFF

Throttle Ready

ECU Power

High Idle Switch

Sensor Ground C12-5

Sensor V

oltage C12-6

Sensor Signal C12-7

A

Black

Ground

B Red

+5 VDC

C White

Signal

T

ransducer

Connector

Important

: This governor utilizes the CAT ID input at terminal 12-4 to ensure proper operation.

Any questions should be directed to Class1 Support at 1-800-533-3569

Caterpillar Wiring
