PSI Transducer

%ODFN*URXQG

5HG9'&

:KLWH6LJQDO

%

%

%

%ODFN*URXQG
5HG9'&
:KLWH6LJQDO

$
%

&

7UDQVGXFHU&RQQH

Shielded Cable

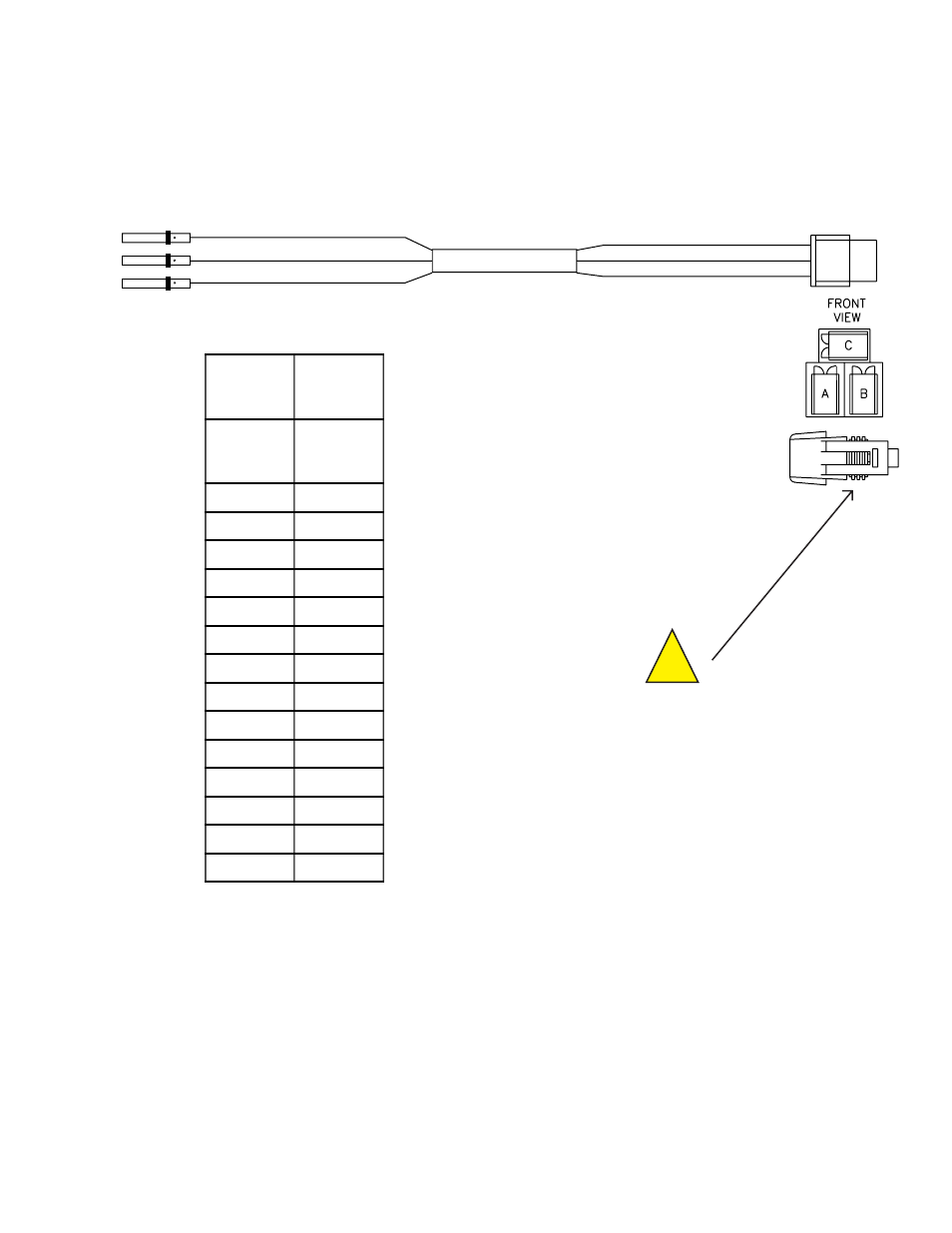

Pressure Transducer cable and connector.

100581

P165-5276

300 PSI

True

Pressure

Transducer

Voltage

Low mV

0-22

680

23-34

988

35-44

1168

45-54

1307

55-64

1427

65-74

1567

75-84

1708

85-94

1846

95-104

1988

105-114

2105

115-124

2243

125-134

2384

135-144

2522

145-154

2664

Make certain that the
weather seal is in place
before inserting into the
transducer.

!

WARNING

Pressure Transducer
Locate the pressure transducer where it can read pump discharge pressure without
turbulence.
A ‘tee’ at the Master Discharge Gauge would be a good location, this should also
serve to reduce vibration and shock to the transducer. Threads are 1/4 NPT and a
sealant should be applied prior to installation. When tightening the transducer, apply
torque to the 1-1/4” hex flange of the transducer, not the body.
Every effort should be made to eliminate the chance for moisture entering the trans-
ducer connector including immediate connection of the transducer harness connec-
tor after installation.
