Power Distribution Center

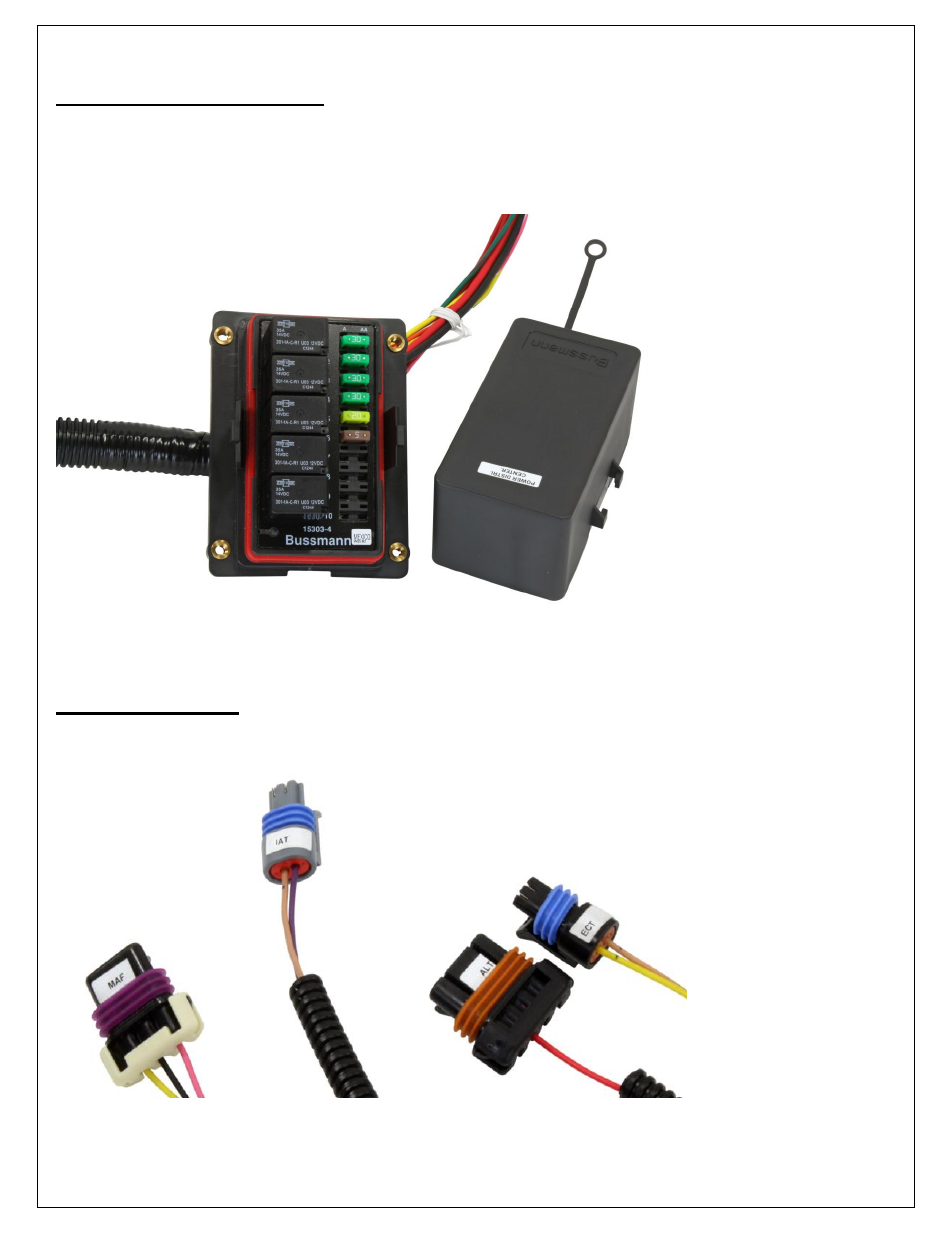

Included in the harness is a Bussmann Power Distribution Center (PDC), pre-populated with the required relays and fuses
for correct operation of the harness. The PDC comes with a bundle of flying leads that need to be properly wired as part of
the installation. Flying leads include switched ignition, battery power and ground, and switched power to Fuel Pump and
Coolant Fans 1 & 2.

Connector Labels

All connectors come labeled to assure proper installation and reduce setup time.
