Page 15 10-2340 Rev 05 121012
# of Flashes Fault Corrective Action
1 UEGO sensor heater open
Check sensor cable for
broken wires/shorts
2 Virtual Ground (VM) Error
3 Nernst Cell (UN) Error
4 Pump current (IP) Error
5 UEGO sensor heater time out
6 UEGO sensor heater short
7 System voltage below 10 volts dc
Check electrical system
for good connections
and proper function
When there is no UEGO sensor connected to a particular channel, the Status LED of
that channel will remain on solid and the Ready LED will turn off after a few minutes.
The remaining channels with UEGO sensors connected will function properly.
When the exhaust back pressure kit (30-2064) is used, the 4 CH UEGO controller will
monitor exhaust back pressure. (NOTE: The 4 CH UEGO controller is designed to
work with a specific AEM pressure sensor. Do not use any sensor other than the
one included in the Exhaust Back Pressure Kit.) If a pressure sensor error is
detected, the 4 CH UEGO controller turns off all Ready LEDs and flashes Status LEDs,
starting with CH1 and ending with CH4. The analog output voltage level for all 4
channels switches to approximately +5V to signify an error.
SERIES 2 EMS AEM TUNER CONFIGURATION FOR
AEMnet
Tuner Setup (Must use 01v22 firmware or newer)
In the AEMTuner EMS software, go to Wizards -> Setup Wizard. Under Wizard types,
click on Setup: CAN Receive. Choose a configuration and click Apply. There are
currently 4 configuration types available: MODE 1 + EBP Sensor, MODE 1 + MODE 2,
TABLE 4. Error Codes

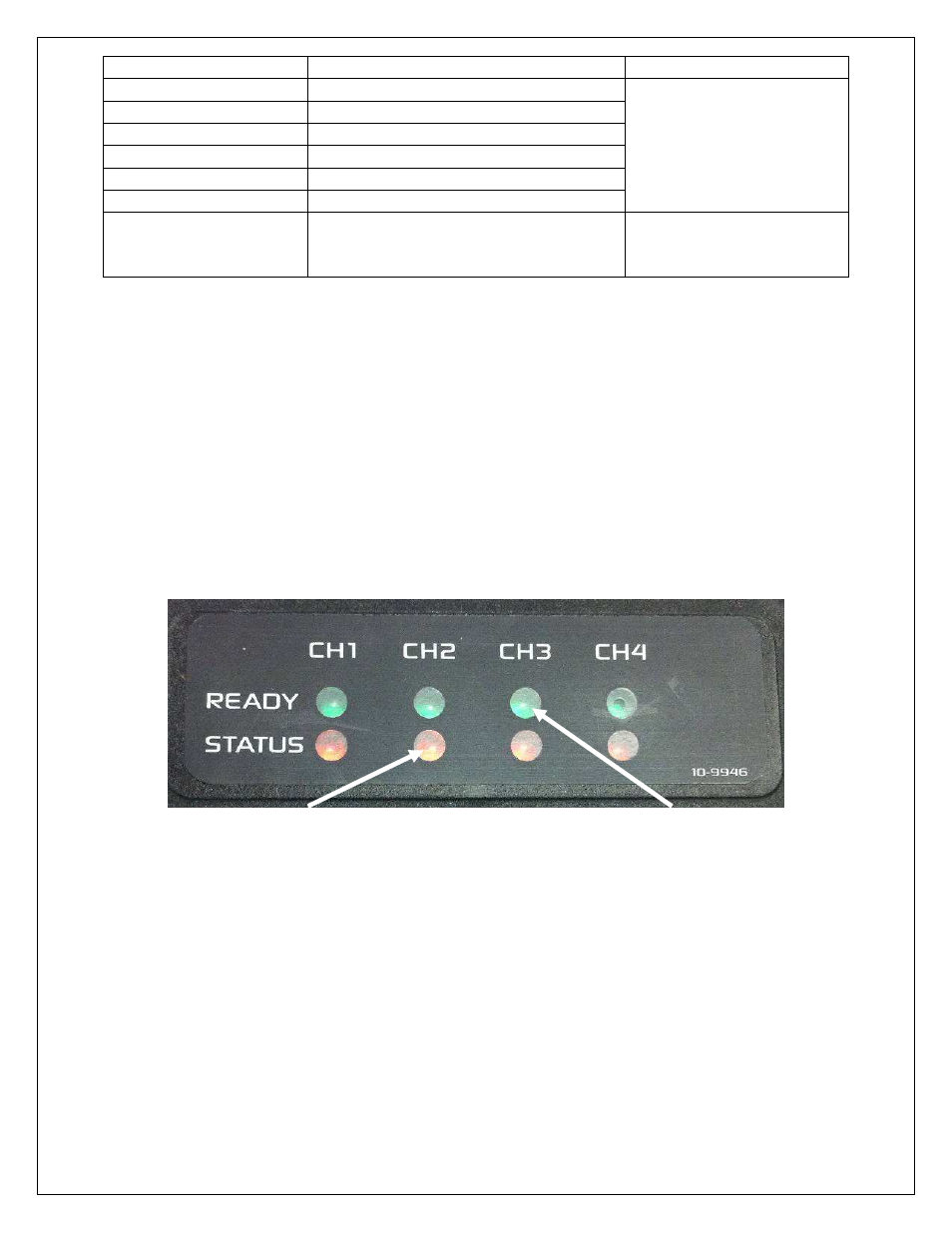

FIGURE 14. Indicator Lights
Status Indicator
LED Ready Indicator
LED
