BNC 970 Portable Multi-Channel Analyzer (MCA) User Manual
Page 9

Model 970 Instruction Manual
6
8.

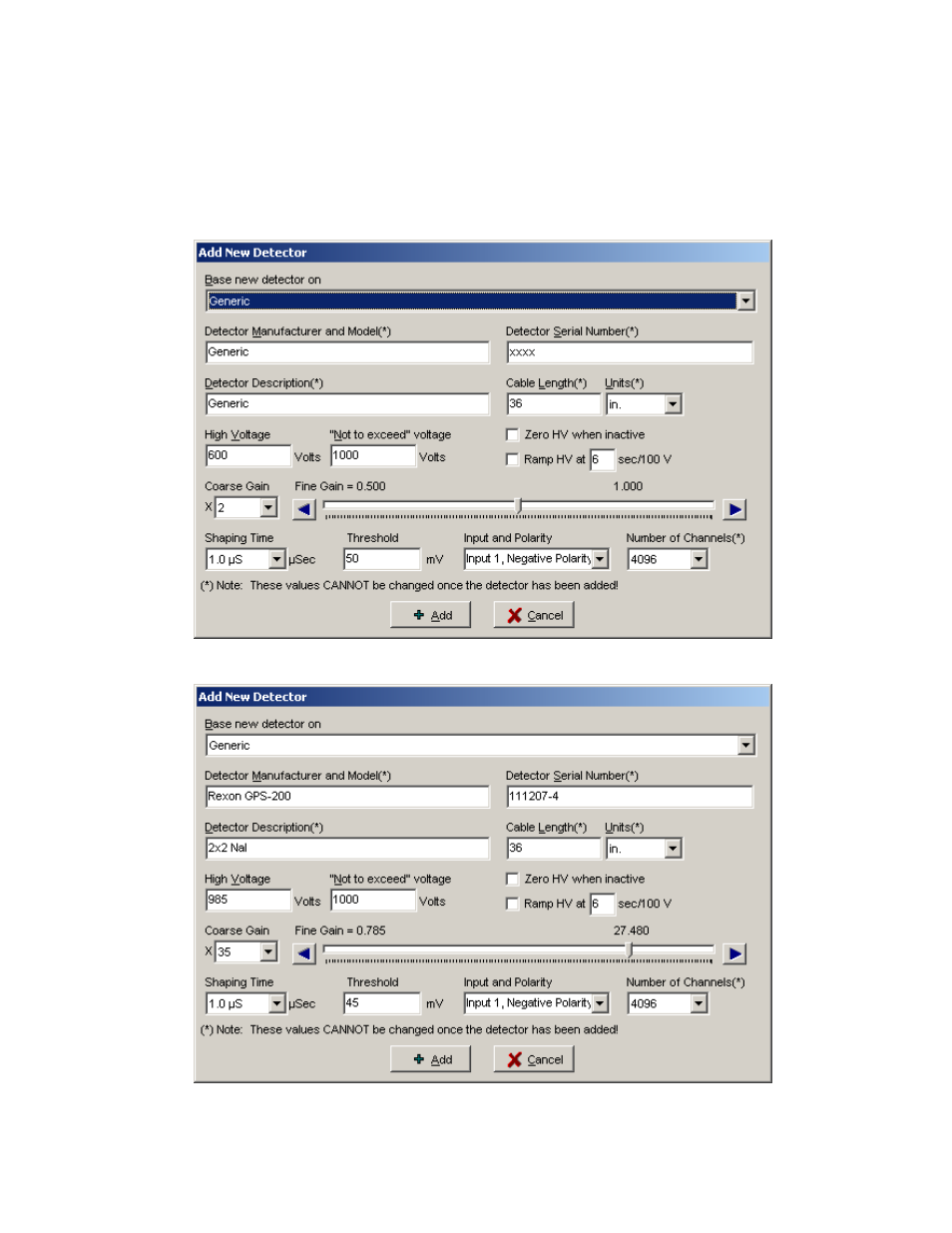

The Add New Detector window will open and contain some default “generic” data the first
time it is used. If you are in a hurry to try out the 970, you can accept these values by
clicking the Add button. It is recommended, that you take a few moments and fill in the
information for the detector you will be using. All fields must contain information. If you click
the Cancel button, SNAP-MCA will revert to the Select Detector window, which will be
blank. Your only options then will be to either close the application or go back to the Add
New Detector
window.
9.
Click the Add button after you have completed entering the information for your detector.
