Model 970 Instruction Manual

10

These items are identical in function to the four buttons along the top of the Acquisition
Controls and Indicators

portion of the screen. Note: No warnings are given if the current

spectrum has not been saved!

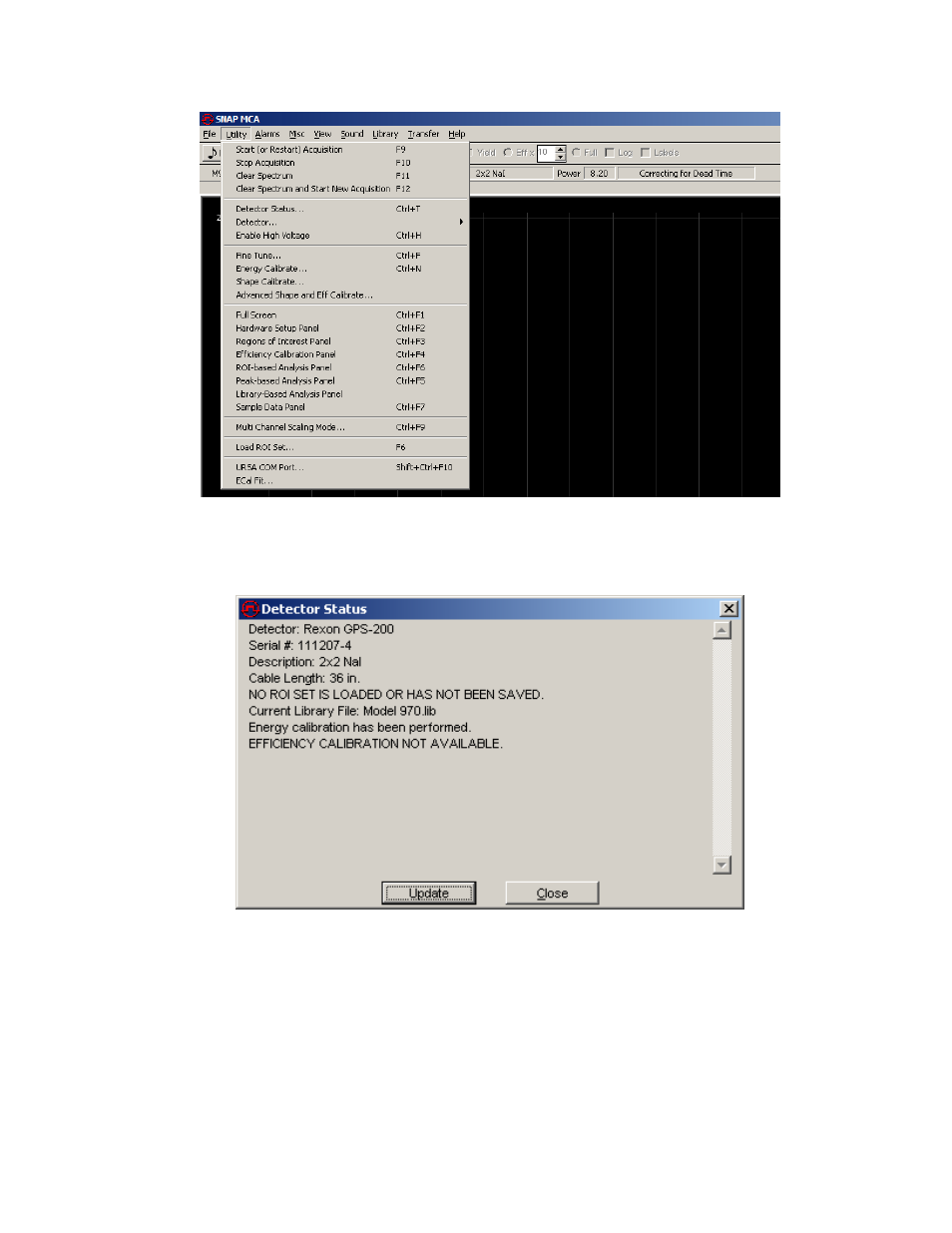

Detector Status

displays a small window displaying current information about the detector

being used, loaded ROI and library files, as well as the state of Energy and Efficiency
Calibrations.

The Detector menu item opens a sub-menu containing various utilities for working with
detectors:

Add

allows new detectors to be added in the same manner as during SNAP-MCA startup,

without the need to shut down and re-start SNAP-MCA.

Remove Detector

allows deletion of any detector entered except the one currently in use.
