User's Manual - MOD745-20 October 2014
Page 9 / 30
4. I
NTERFACES DESCRIPTION
4.1. Front panel

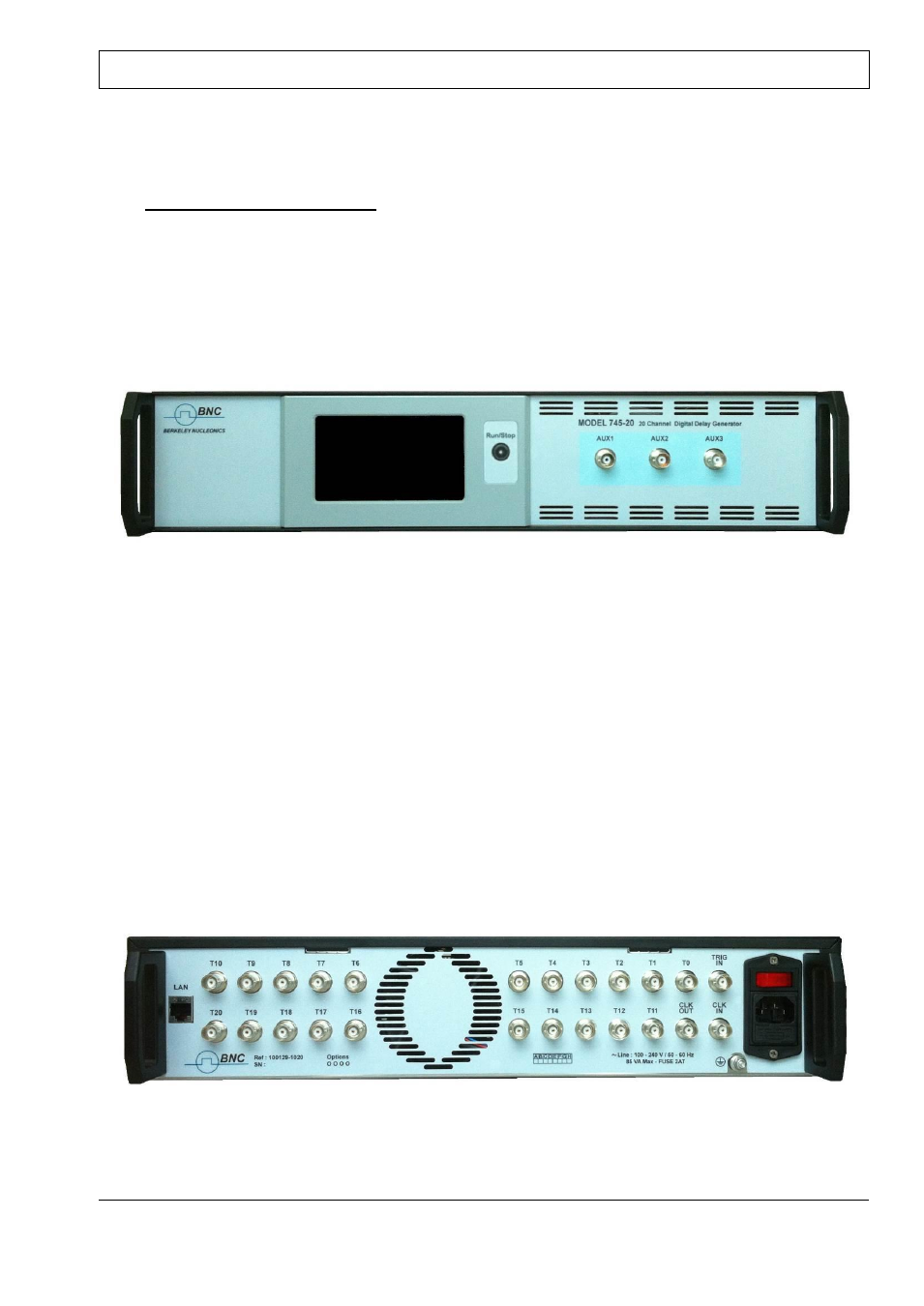

The MOD745-20 front panel is depicted in the following figure.
4.1.1. Local interface
The MOD745-20 is equipped with a touch screen (option) on the front panel for local operation.
4.1.2. AUX 1 to 3
The three BNC connectors located on the front panel are used for extension to 40 channels. They are
unused in the MOD745-20 version.
4.2. Rear panel
All input/output connections on the MOD745-20 are located on the rear panel depicted in the following
figure.
