User's Manual - MOD745-20 October 2014
Page 17 / 30
5.7. Sub-
menu “IP Address”

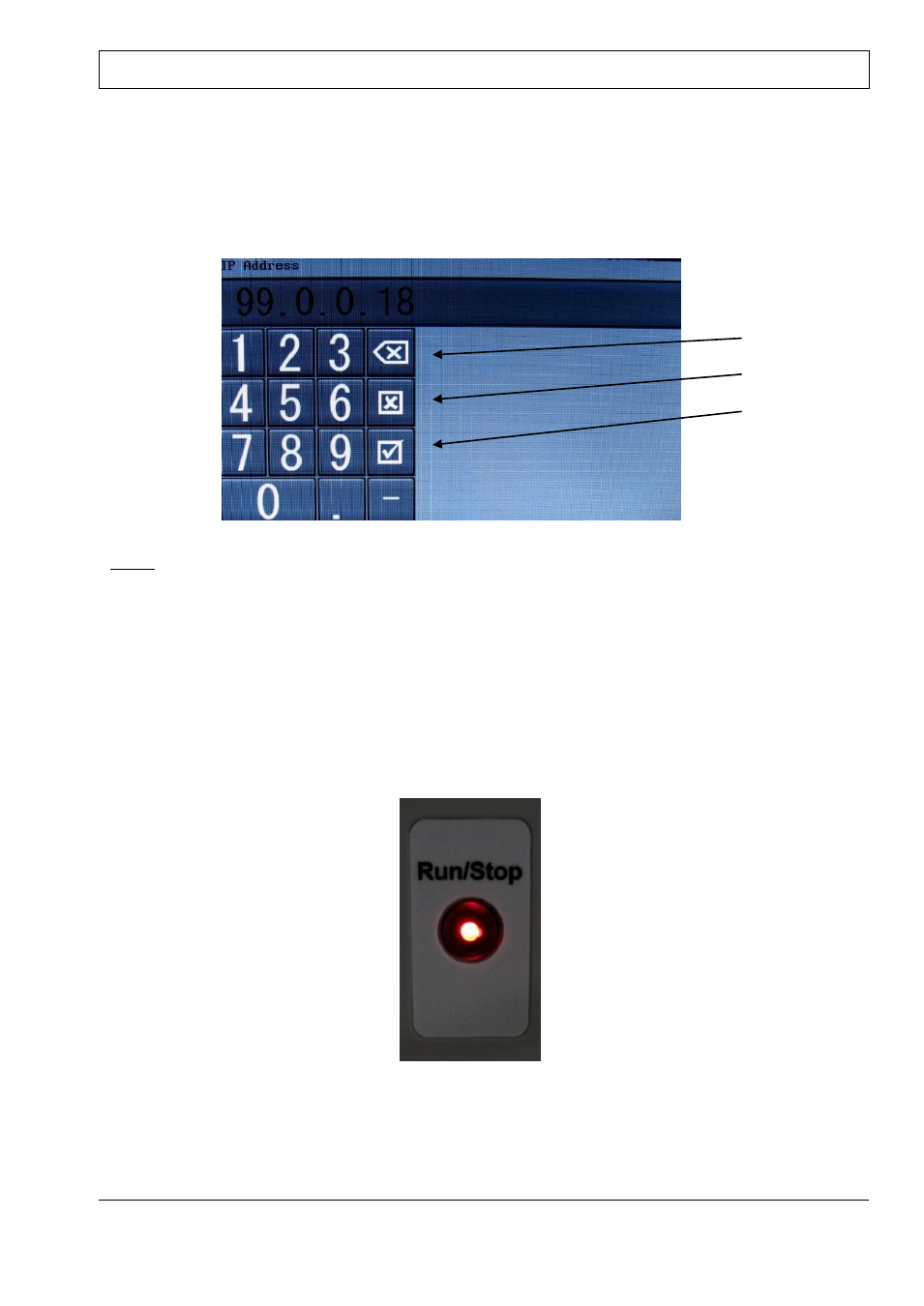

Tapping in the “IP Address” window in the “NETWORK ADDRESS SETUP” sub-menu will open another
sub-menu with the IP address setup as depicted in the following figure.
Erase
Exit sub-menu
Validate
Notes: S ubmenus “NETWORK MASK” and “GATEWAY ADDRESS” are identical.
5.8. Front panel “Run/Stop” button
The front panel ‘Run/Stop’ button enables channels programmed with a single shot trigger source (SS1 or
SS2) to trigger each time a pulse is present on the rear panel ‘TRIG IN’ input.
Each press of the button will change the state alternately.
When in ‘Run’ state, the led inside the button lights in red.
