5. L
OCAL OPERATION
5.1. Main menu

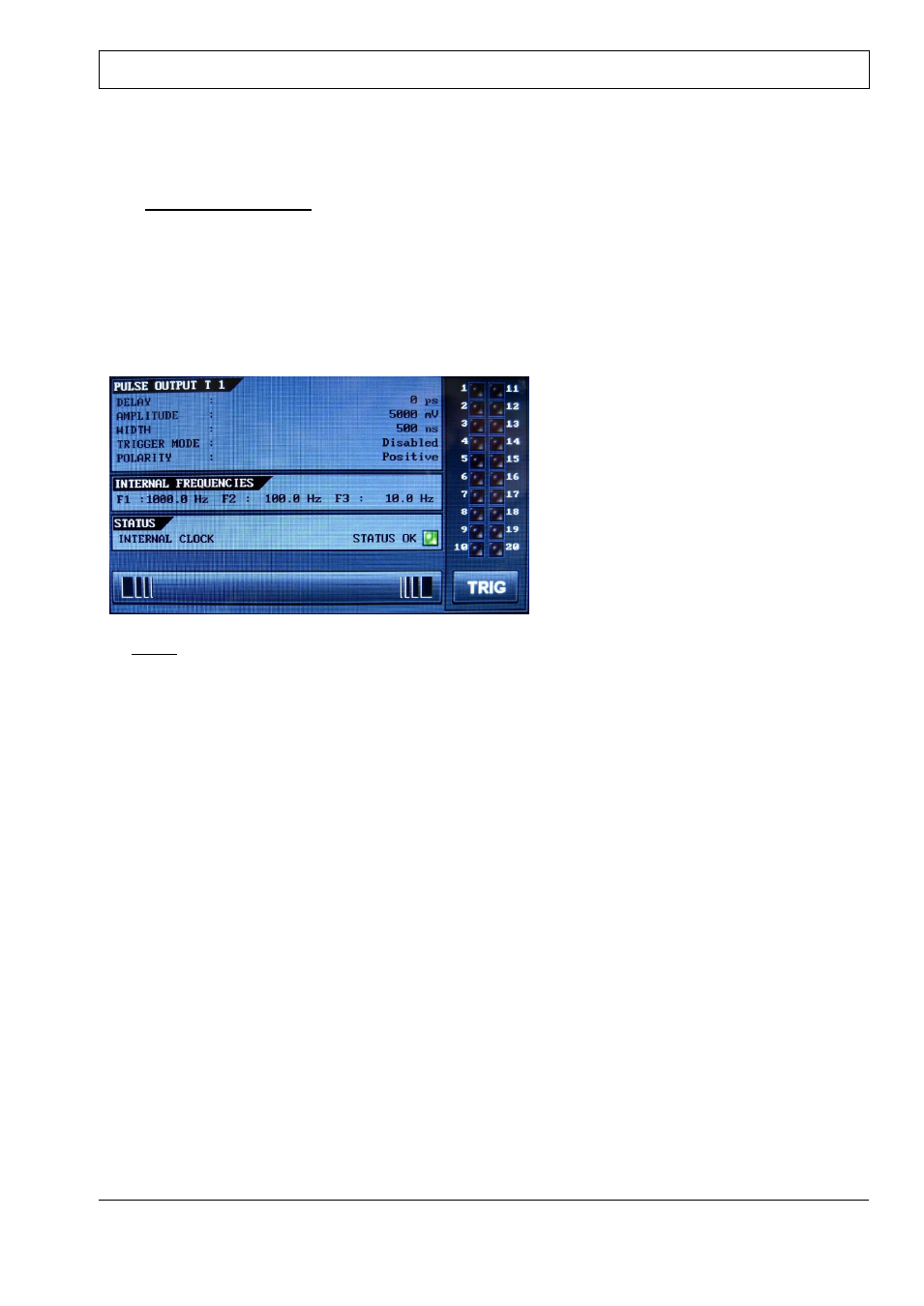

After power on, the main menu appears on the touch screen as depicted below.
PULSE OUTPUT displays the settings of
each channel T0 to T20.
INTERNAL FREQUENCIES displays the
actual set of frequencies F1, F2 and F3.
STATUS displays the status of the
equipment (internal or external clock and
status).
1 to 20 indicators light up in green when the
corresponding channel has been triggered.
TRIG runs a unique single shot sequence.
Notes:
- The displayed channel in PULSE OUTPUT window is set with the scroll bar at the bottom of the
screen.
- The STATUS OK indicator turns red when the equipment is in a default state.
- The 1 to 20 trigger status indicators turn green if the channel has delivered at least one pulse.
- Tapping on the 1 to 20 trigger status indicators will reset them until next trigger.
