User's Manual - MOD745-20 October 2014
Page 7 / 30

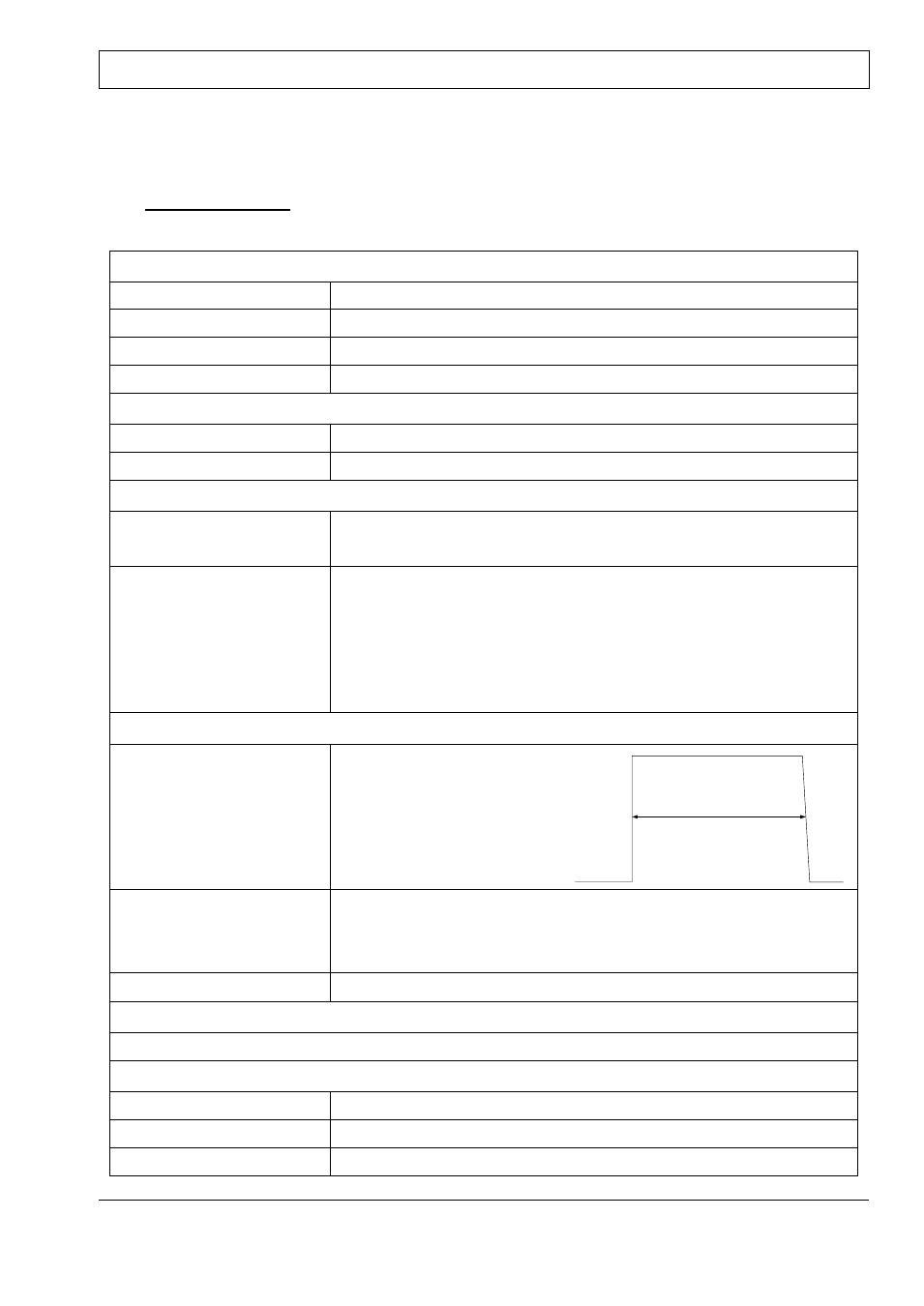

2. S
PECIFICATIONS
Delays
Channels 20 independent delay channels
Range 0 to 10 seconds
Resolution 100 ps (1 ps option)
RMS Jitter < 50 ps + delay x 10
-7
rms
Internal time base
Frequency CLK RF
Stability 10
-8
Trigger
Single shot source SS1 and
SS2 SS1 synchronous with the first occurrence of F3 and SS2 with the second
occurrence of F3.
Synchronous repetitive
triggers 3 frequencies: F1> F2 > F3 in 1, 2 , 5 sequence
F1: 1000, 500, 200, 100, 50, 20, 10, 5, 2 Hz
F2: 200, 100, 50, 20, 10, 5, 2, 1, 0.5 Hz
F3: 50, 20, 10, 5, 2, 1, 0.5, 0.2, 0.1 Hz
Outputs
Delayed output (T1 to T20) Positive or negative pulse into 50

,
Amplitude 3 to 6 V , resolution: 10 mV,
Rise time : < 5 ns,
Fall time: < 10 ns,
Width: 100 ns to 300 ms
Connector type BNC,
Reference output (T0) Positive pulse into 50

, amplitude 3 to 6V, resolution 10 mV
Rise time < 5 ns, fall time < 10 ns, width 100ns to 300 ms
Connector type BNC
CLK RF / 2 (output option) Frequency: CLK RF / 2, > 1V / 50

, Connector type BNC
Interface
Front panel (option), Ethernet 10/100 Mb/s, Internet (Web page)
General
Power Required 90 – 220 V / 50 – 60 Hz / 1 A.
Weight Net: < 10 kg
Dimensions 19’’, 2 U, 320 mm without handles
Level: 3 to 6 V
Width :
100 ns to 300 ms
Tm :
< 3 ns
