5.1. Sub-
menu “Delay”

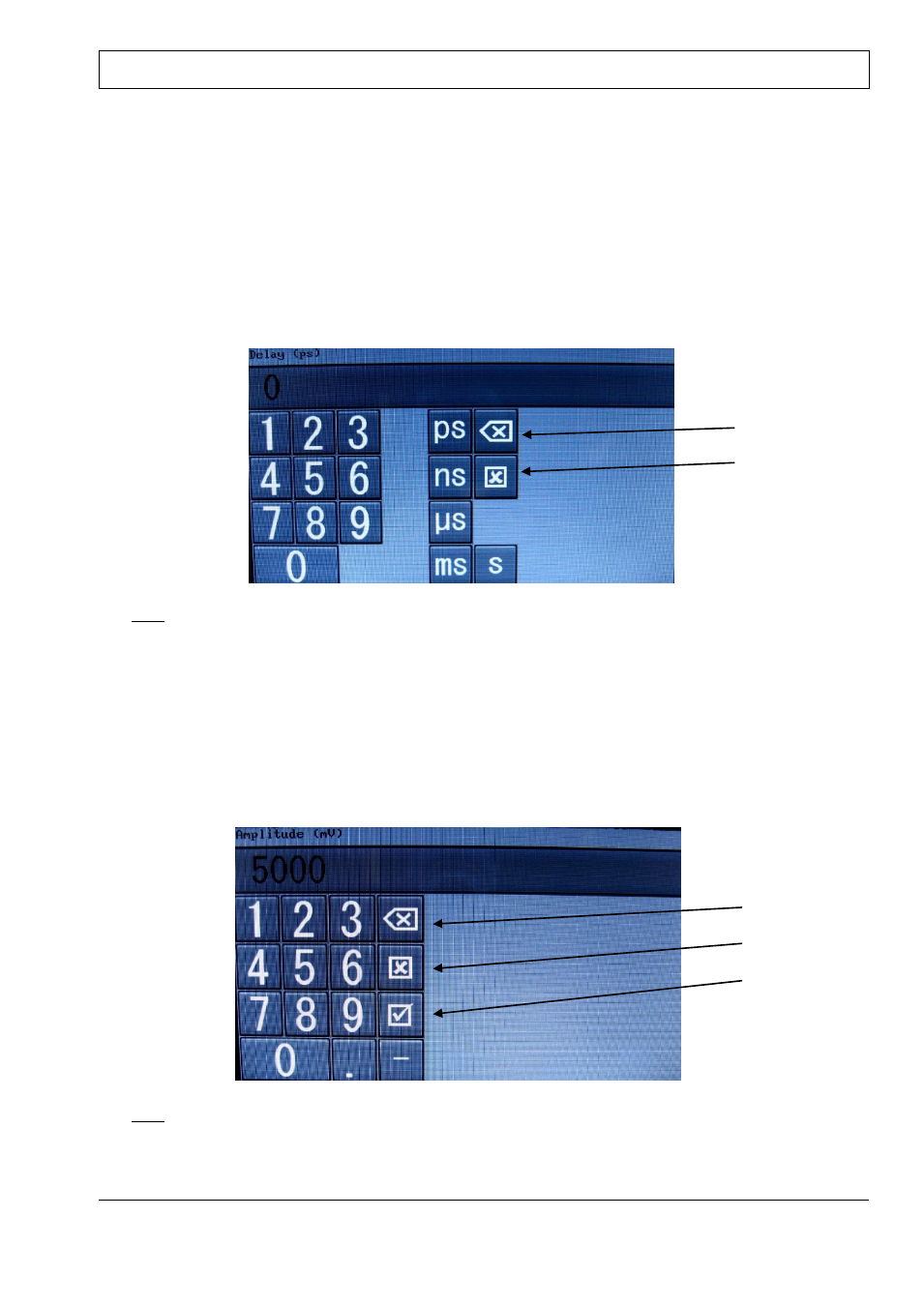

Tapping in the “DELAY” window on the “PULSE SETUP OUTPUT” sub-menu will open another sub-menu
with the delay settings of the channel depicted in the following figure.
To set the channel delay, enter the value with the numbers, then tapping on the unit (ps, ns, µs, ms or s)
will validate the setting.
Erase
Exit sub-menu
Note: Out of range values are rejected.
5.2. Sub- menu “Amplitude”
Tapping in the “AMPLITUDE” window on the “PULSE SETUP OUTPUT” sub-menu will open another sub-
menu with the voltage level settings of the channel depicted in the following figure.
To set the channel level, enter the value with the numbers in millivolts, then tapping on the validate button
will send the setting.
Erase
Exit sub-menu
Validate
Note: Out of range values are rejected.
