Removing and installing ignition
switch/steering lock
•

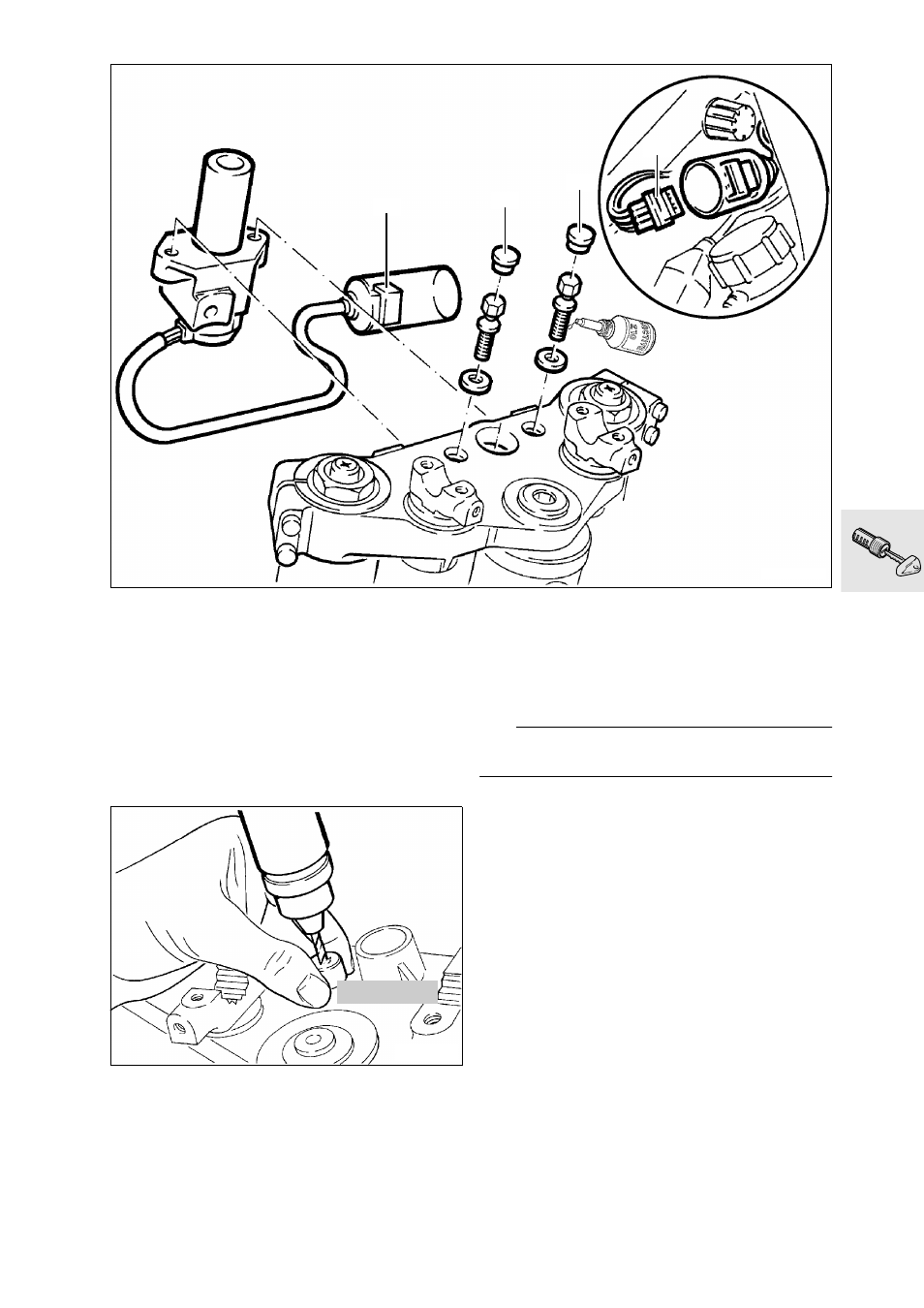

Remove fuel tank.
•
Disconnect plug connection (1) for ignition
switch/steering lock.
•
Detach crash pad on upper fork bridge.
•
Loosen handlebar clamping blocks and place
handlebar on frame.
•
Remove screw plugs (2).
•
Fit drilling bushing (1), BMW No. 51 0 500, in
hole.
•
ith 4 mm drill, drill shear bolt to a minimum depth
of 10 mm.
•
With an 8 mm drill, drill shear bolt to a minimum
depth of 8 mm.
•
Remove lock barrel from below.
•
Install in the reverse order of removal.
e
Caution:
Secure shear bolts with Loctite 270.
X
Tightening torques:
Handlebar clamping blocks.......................... 22 Nm
Shear bolts........................ to shear point (~ 20 Nm)
LT510010
1
2
2
1
51 0 500
LT510020
