32.5
Removing and installing left and
right handlebar fittings

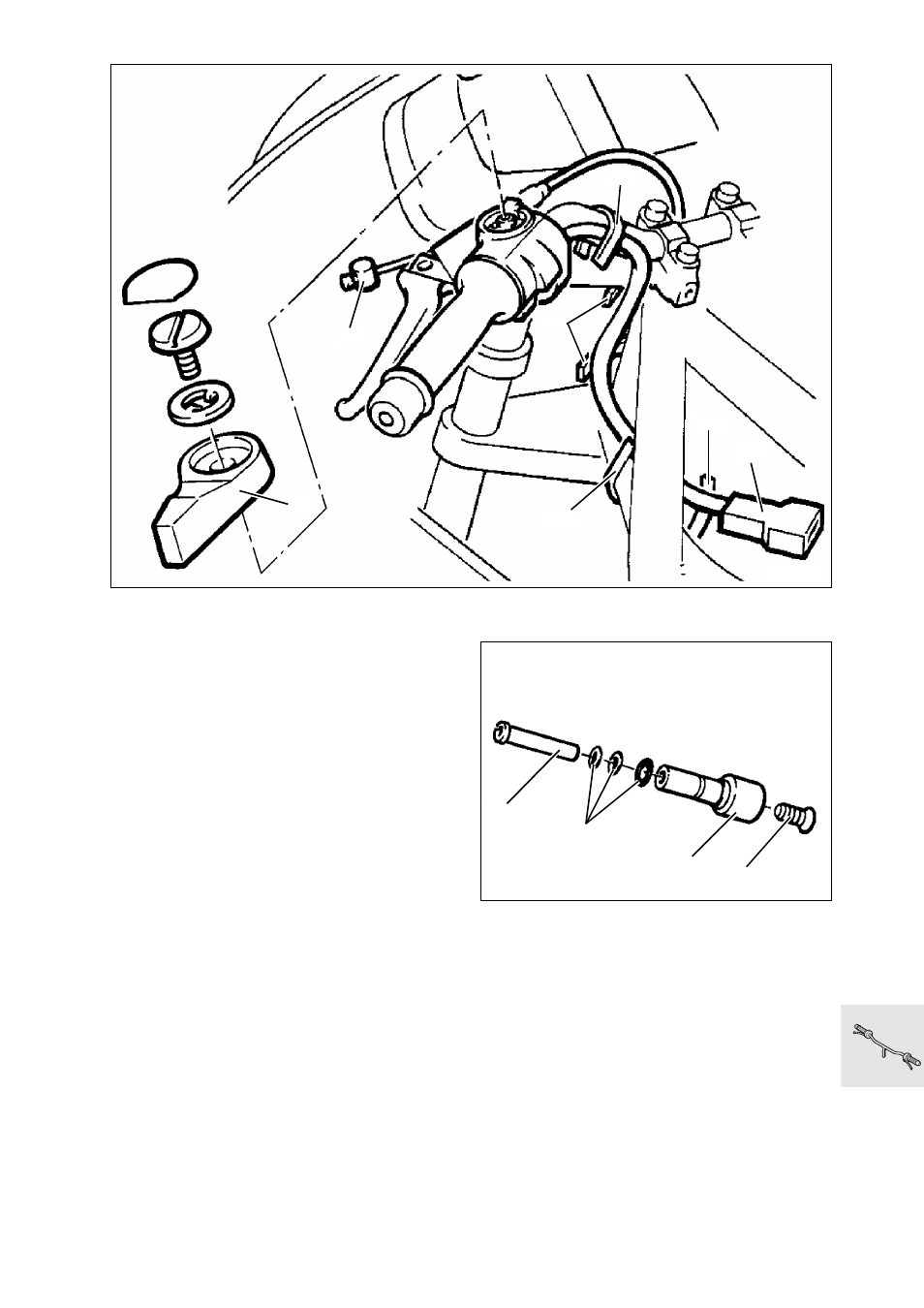

Removing and installing left handlebar
fitting
• Remove fuel tank.
• [LT] Cut through cable clip (1)
• Disconnect plug connection for clutch switch (2).
• Detach cold start operating cable at lever (3).
• Detach clutch cable (4) at clutch release lever,
then at handlebar lever.
Removing and installing handlebar weight
• Release countersunk screw (1)
• Pull out handlebar weight (2).
• Pull out threaded sleeve (3) with screw.
• Note O-ring (4).
LT320010
3
4
2
1
1
1
1
LT320020
1
2
3
4
