23.22

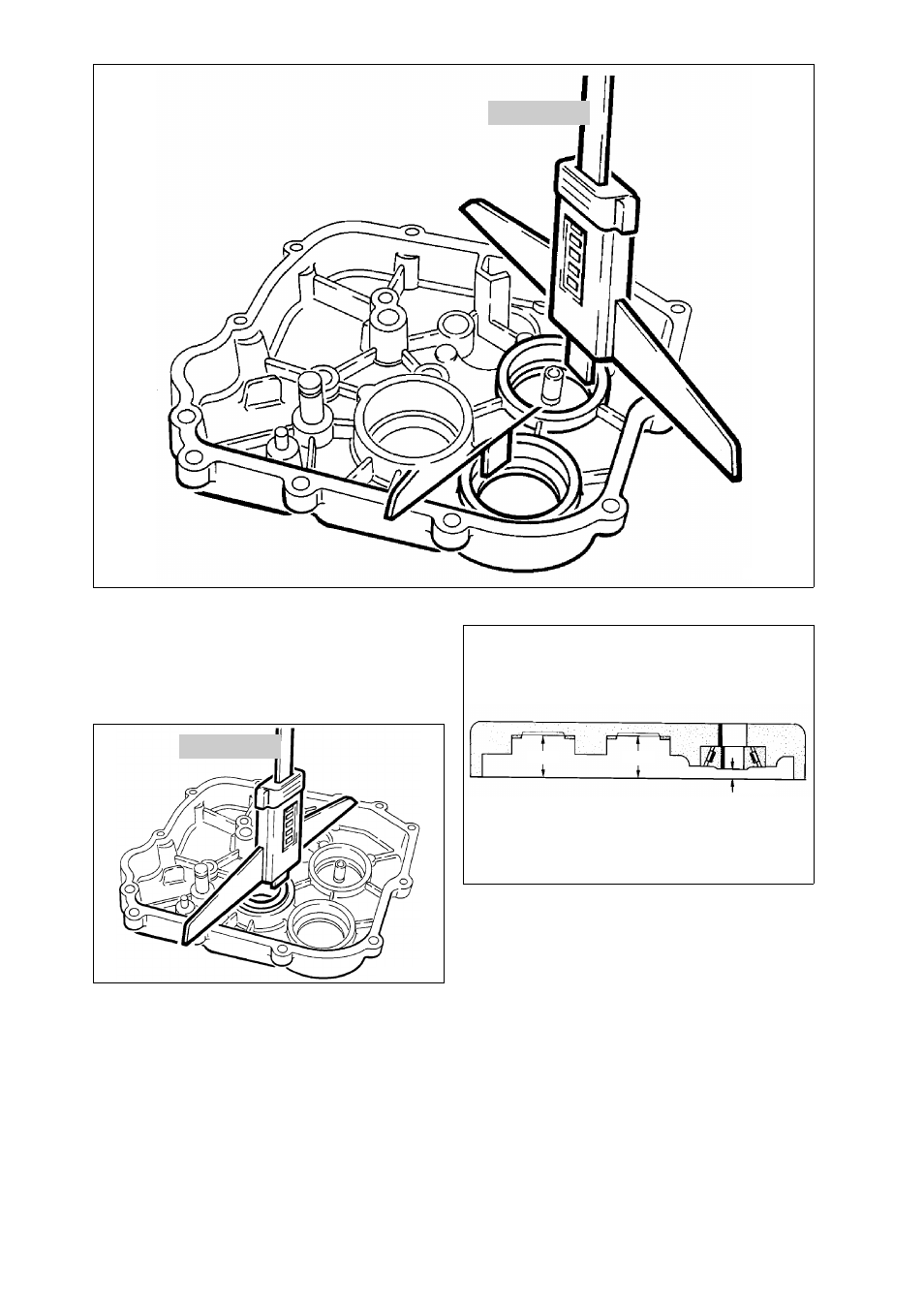

Measuring transmission cover
• Measure from the parting surface of the trans-
mission cover to the base of the bearing seat.
• Only applies to intermediate shaft and output
shaft
• The dimension for the input shaft is measured
with the taper roller bearing installed.
• Measure from bearing inner face to parting sur-
face of transmission cover.
• Enter all measurements in a table, see example.
Dab = Cover dimension output shaft
Dzw = Cover dimension intermediate shaft
Dan = Cover dimension input shaft
Permissible axial clearance:
Intermediate shaft and
output shaft
... 0.05...0.15 mm (0.00197...0.0059 in)
Permissible preload:
Input shaft ... 0.03...0.08 mm (0.00118...0.00315 in)
00 2 550
LT230330
00 2 550
LT230340
LT230350
Dab Dzw
Dan
