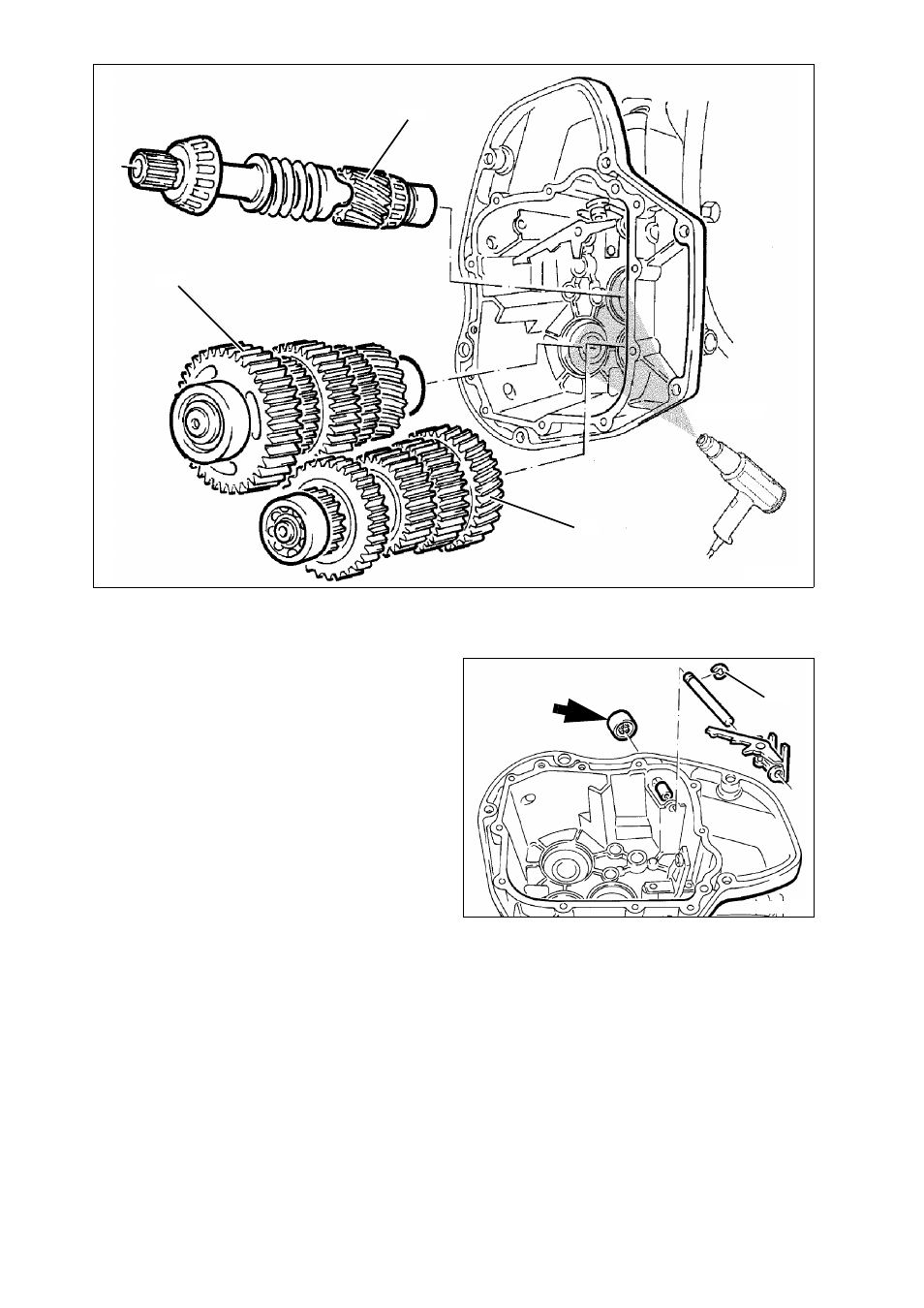

Removing transmission shafts
• Heat bearing seat of input shaft (1) and the inter-
mediate shaft (2) to 100 °C.
• Pull out both shafts together.
• Remove input shaft (3).
Removing pawl
• Using drift, drive out vent (arrow) from the inside.
• Remove retaining ring (1) on guide rod.
• Pull out guide rod.
• Remove pawl retaining bracket together with
pawl.
• Remove retaining ring on pawl shaft.
• Remove pawl from pawl retaining bracket.
