32.7
Removing and installing right handle-
bar fitting

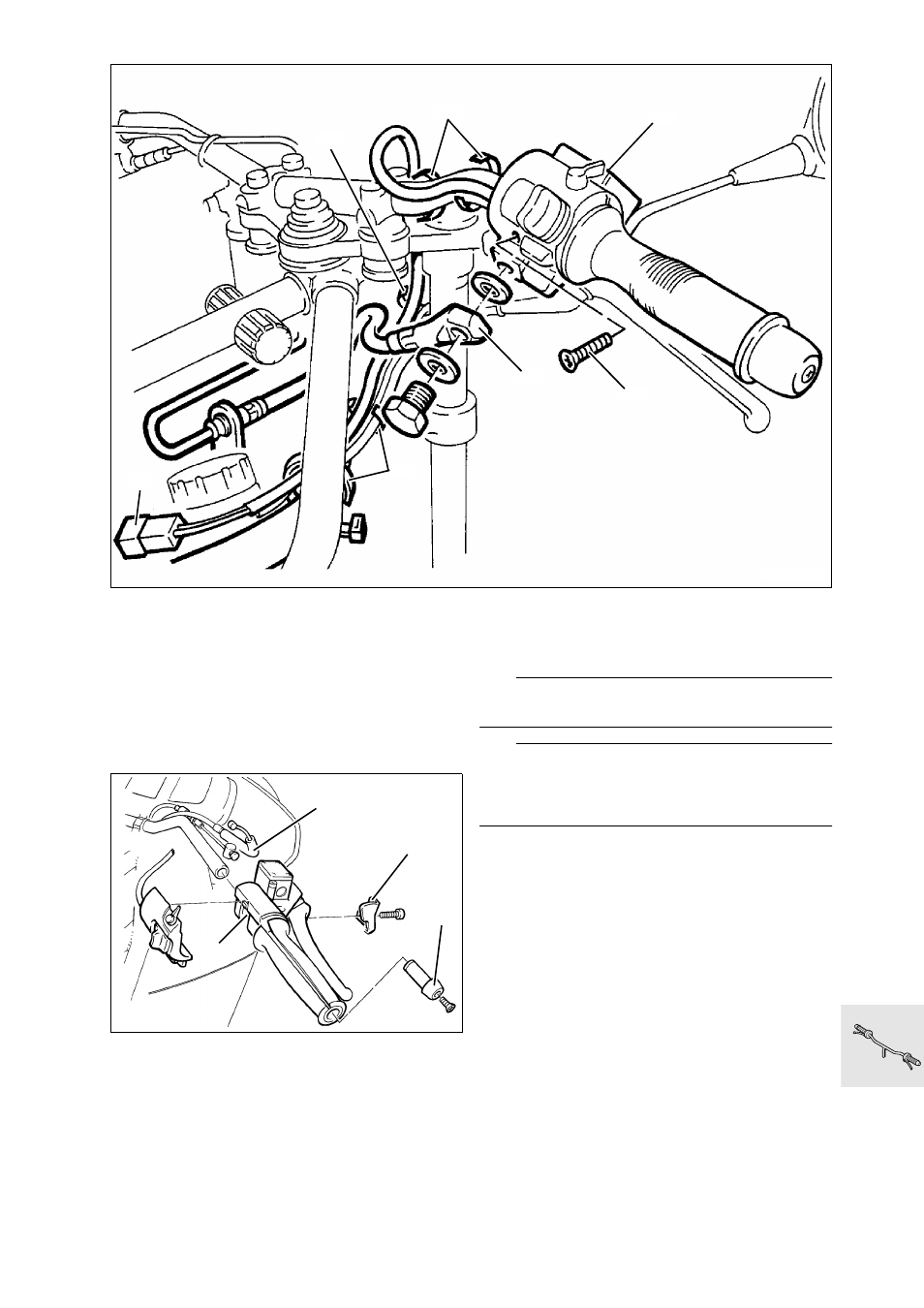

• Remove fuel tank.
• [LT] Cut through cable clip (1).
• Disconnect plug connection (2) for brake light
switch.
• Release brake line (3) and close off.
• Release multifunction switch (4).
• Loosen cover (5) for accelerator cable.
• Detach accelerator cable (6).
• Remove handlebar weight (7).
• Loosen clamping screw (8) from fitting housing.
• Remove fitting.
• Cut through rubber grip and remove.
• Install in the reverse order of removal.
e
Caution:
Top up brake fluid, vent system!
L
Note:
Turn connection piece (3) of the brake line such that
the brake line does not chafe at any point when the
handlebar is turned.
X
Tightening torques:
Brake line ........................................................7 Nm
Bleed screw.....................................................7 Nm
Clamping screw...............................................5 Nm
Setting:
Accelerator cable play ............. 0.75 mm (0.0295 in)
