ASYNC ROUTER AR-P, AR-5, AND SYNC ROUTER USER’S MANUAL
83
- Remote server not found (IPX) (Section C.4.6)
- No connection slots available (IPX) (Section C.4.7)
- Misconfigured networks (IPX) (Section C.4.8)
• Client operating problems (Section C.5)
- Router does not answer when client calls (Section C.5.1)
- Router answers client call but connection fails (Section C.5.2)
C.1 LED descriptions
C.1.1 A SYNC R OUTER AR-P LED S

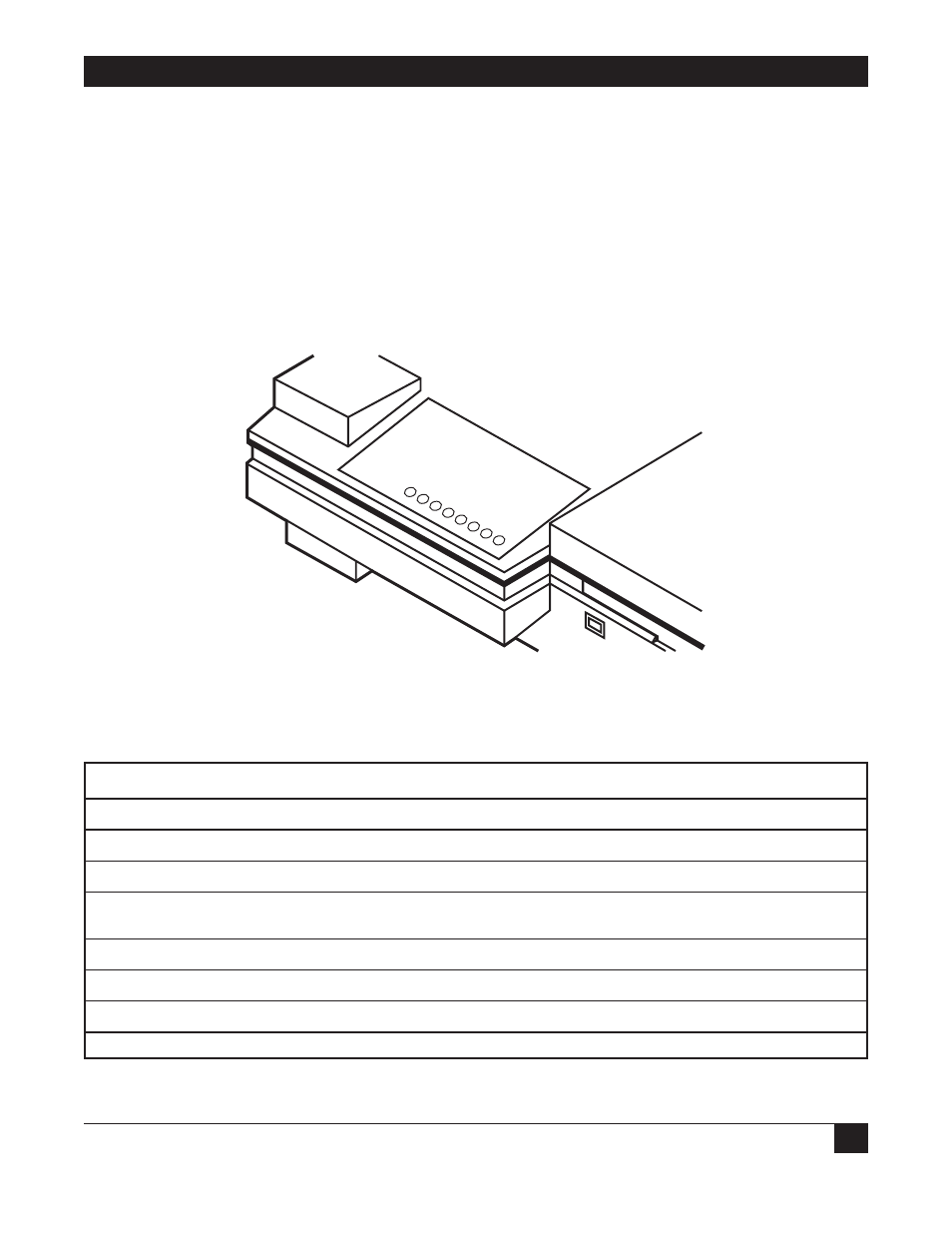

Figure C-1. LEDs on the Async Router AR-P.
Table C-1. Descriptions of the LEDs on the Async Router AR-P.
Label Indicates If the LED is on
PWR Power Router is receiving power
ERR Error System error is detected
LNK Link status Ethernet connection is functional
NWK or NET Network activity Router is receiving or transmitting data over Ethernet
connection
DTR Data terminal ready Modem0 is ready to transmit
DCD Data carrier detect Modem0 is receiving carrier signal from remote modem
TX Transmit Modem0 is transmitting
RX Receive Modem0 is receiving
All LED lamps light as they are tested when the Router starts. They remain lit for 10 seconds before
resuming normal operation.
A S YN
C RO
U T ER
A R-P PWR
LNK
NET
DTR
DCD
Tx
Rx ERR
