4.2.3 PC U SING S ERIAL T ERMINAL U TILITY

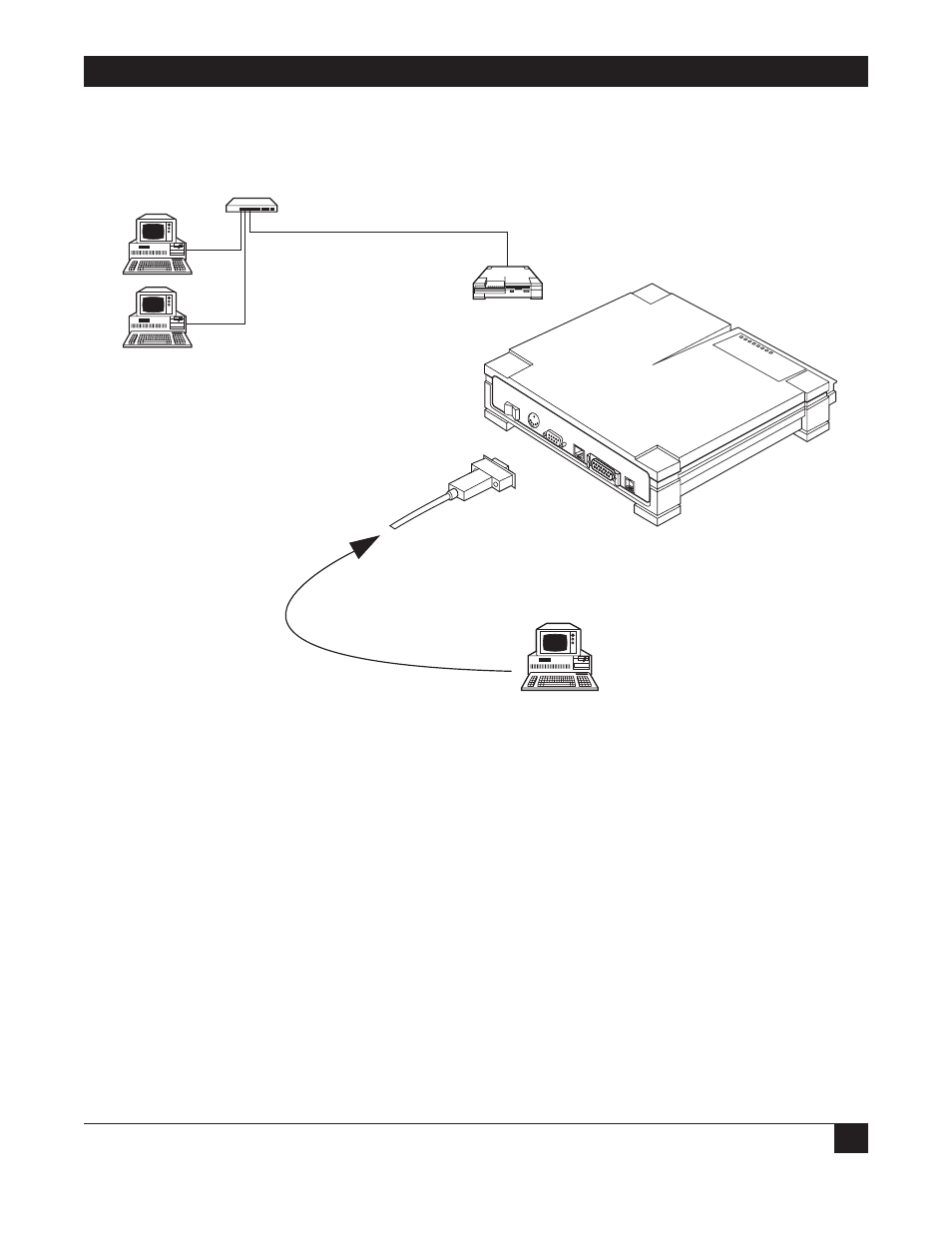

Figure 4-5. PC Using Serial Terminal Utility.
You can configure the Router by using a PC operating with a serial terminal emulator such as Windows
Terminal.
The PC emulating the terminal should only be used by the system administrator when installing,
maintaining or debugging the Router or its network connections.
The PC emulating the terminal should not be used by users to gain access to local or remote networks.
This method of access is illegal.
POWER
SERIAL CONSOLE
10 BaseT
AUI
M odem
0
I
O
Ethernet Hub
10BASE-T, AUI
Router
CONSOLE
PC/Terminal
serial
cable
serial port
Host
Serial terminal
utility (terminal
emulation)
