Barco R9002120 - Manual (Page 42)

Service Mode
7 - 4 5975977 BARCODATA 708 280597
Change Projector Address
Every projector requires an individual address between O and 255.
This address can be software installed.
To change that address, push the control disk up or down to highlight
'Change Porjector Address' and press
ENTER . The Change Projec-
tor Address menu will be displayed and the actual address will be
filled in.
Select with or
then
to return.

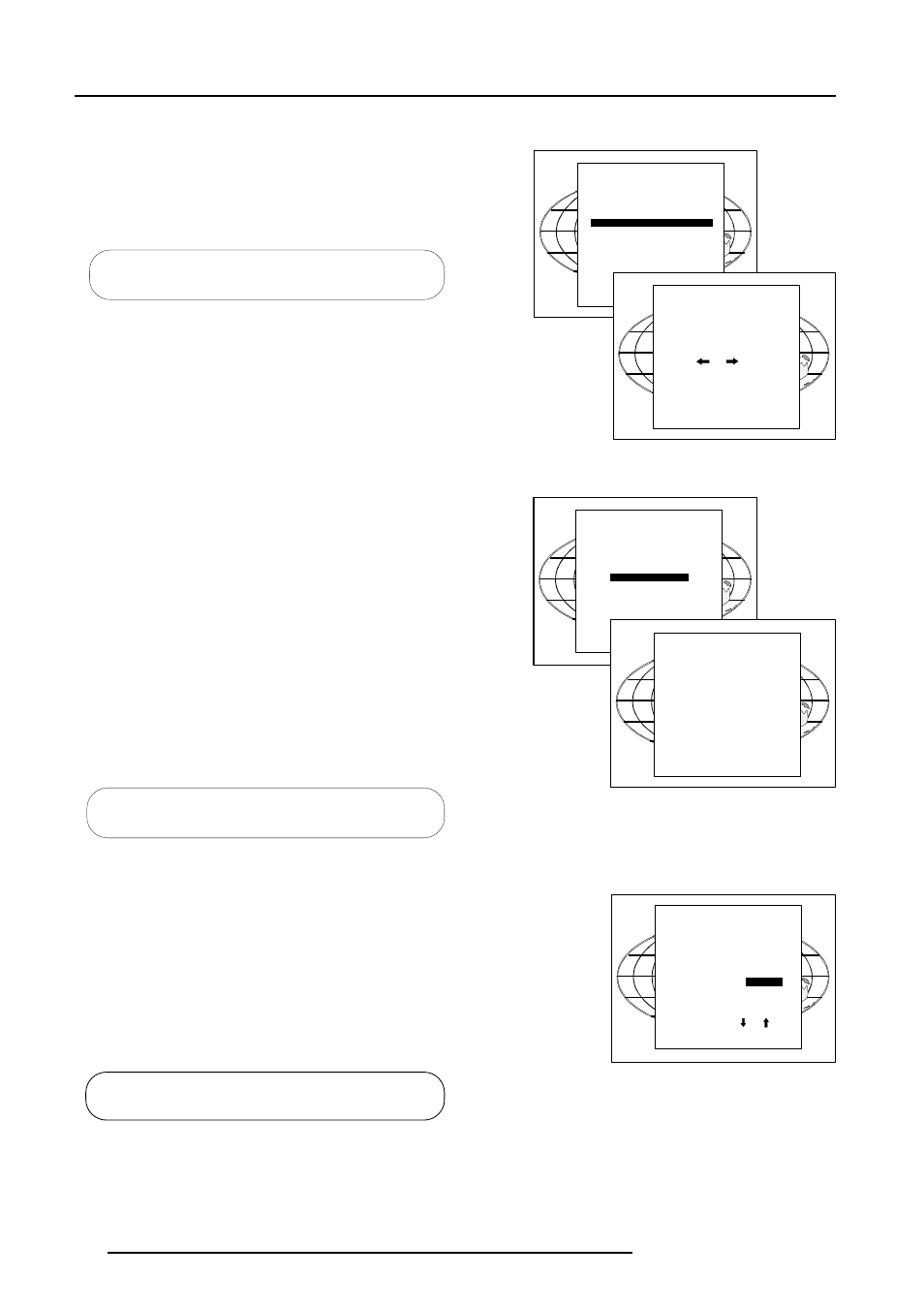

PROJECTOR SET-UP
IDENTIFICATION
TOTAL RUN TIME
CHANGE PASSWORD
CHANGE LANGUAGE
CHANGE PROJECTOR ADDRESS
CHANGE BAUDRATE
POWER UP MODE : operating
BARCO LOGO
ENTER displays the 'Change Projector Address' menu.
EXIT returns to the Service mode main menu.
The first digit is highlighted. Select the individual digits by pushing the
control disk to the right or to the left. Reprogram with the digit keys
on the RCU.
Press
ENTER to confirm.
Press EXIT to return to the projector set up menu.
to confirm
to return.
PROJECTOR ADDRESS
Enter new projector
address :
0 0 0
Use and to select,
and reprogram
with numeric keys.
Highest address is 255
Change baudrate
The communication speed between projector and computer has 8
possible speeds. The baud rate speed can be software set up.
Highlight 'Change Baudrate' by pushing the control disk up or down
and press
ENTER to display the Baud rate menu.
The following baud rates are available :
- 9600
- 4800
- 2400
- 1200
- 600
- 300
- 150
- 110
The actual baud rate will be highlighted. To change the baud rate,
push the control disk up or down or to the left or to the right to select
the desired baud rate and press
ENTER to accept this baud rate.
Select with or
then
to return.
PROJECTOR SET-UP
IDENTIFICATION
TOTAL RUN TIME
CHANGE PASSWORD
CHANGE LANGUAGE
CHANGE PROJECTOR ADDRESS
CHANGE BAUDRATE
POWER UP MODE : operating
BARCO LOGO
to accept
to return.
BAUDRATE
Select new
baudrate :
9600 4800
2400 1200
600 300
150 110
Select with arrow
keys ;
ENTER to accept the selected baud rate.
EXIT to return without changing the baud rate.
Power up mode
When pressing the power switch, the projector can start up in
'operating mode' or in 'stand-by mode'.
Operating mode : the projector start up and displays image .
Stand-by mode : the projector start up in stand-by and waits until the
stand-by button or a digit key is pressed.
To change the Power up mode, select Power Up mode by pushing
the control disk up or down and press
ENTER to toggle between
'Operating' and 'Standby'.
Select with or
then
to return.
PROJECTOR SET-UP
IDENTIFICATION
TOTAL RUN TIME
CHANGE PASSWORD
CHANGE LANGUAGE
CHANGE PROJECTOR ADDRESS
CHANGE BAUDRATE
POWER UP MODE : operating
BARCO LOGO
ENTER to toggle between operating and standby.
EXIT to return to the Service menu.
