Controlling
4-2 5975977 BARCODATA 708 260597
The projector can be controlled with
a. The RCU
b. The hardwired RCU (cable not included)
c. The local keypad.
Controlling the projector with the RCU and the hardwired RCU is
the same.

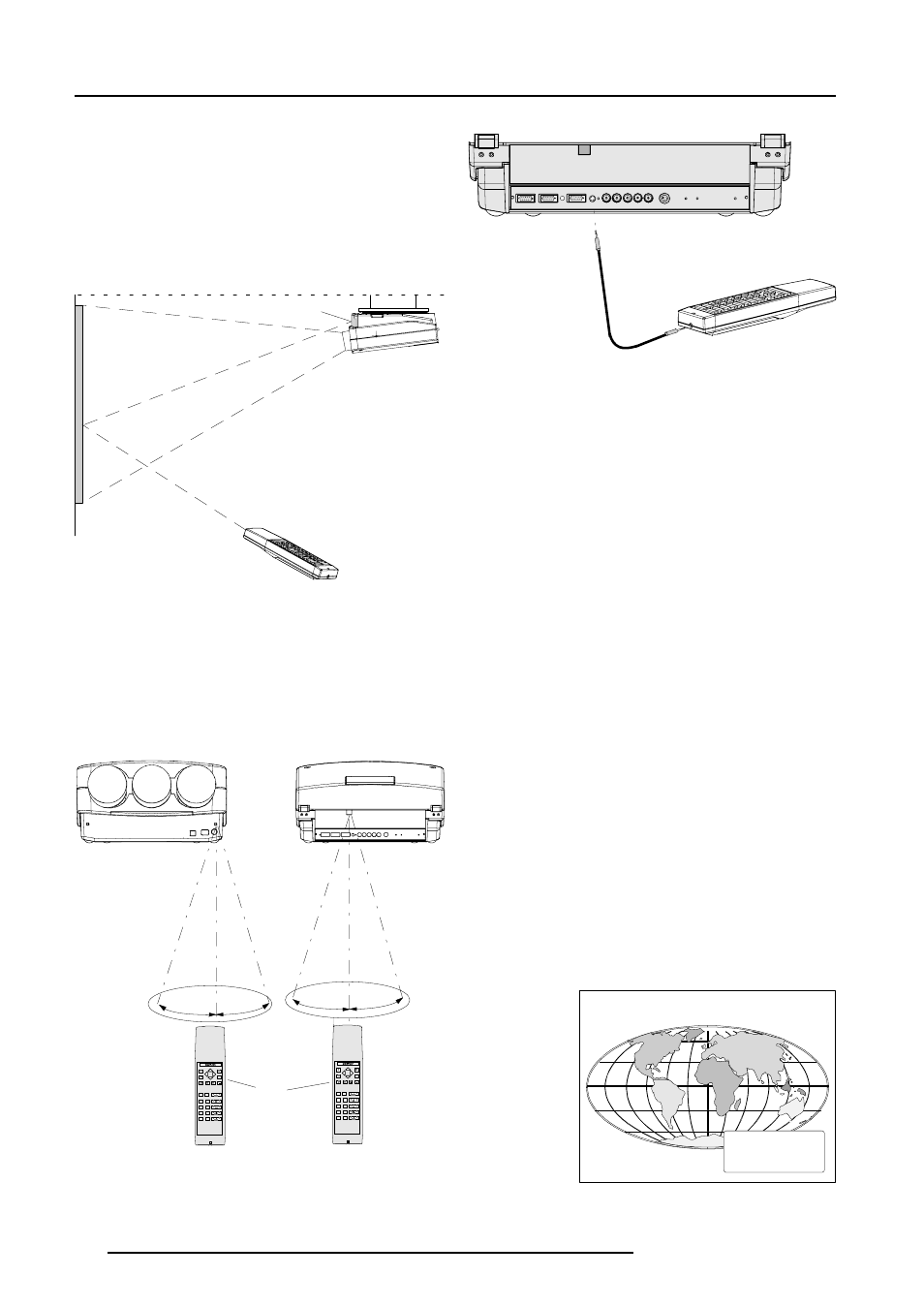

How to use the RCU
a) Point the front of the RCU towards the reflective screen surface
Ceiling
Screen
IR sensor
RCU700
b) Point the front of the RCU towards one of the IR sensors in the
projector.
When using the wireless remote control, make sure you are within the
effective operating distance (30m, 100ft in a straight line). The
remote control unit will not function properly if strong light strikes the
sensor window or if there are obstacles between the remote control
unit and the projector's IR sensor.
FREEZ
0 9
7 8
6 5 4 3
2 1
ENTER
FREEZ
0 9
7 8
6 5
4 3
2 1
ENT ER
Front of projector Rear side of projector
RCU
45° 45°
45° 45°
c) RCU used in a hardwired configuration.
CO MM PO RT
(800 peri pherals) REMOTE R G (S ) B S VIDEO S- VIDEO
219
RS 232O UT RS23 2IN IR
Plug one end of the remote cable in the connector on the bottom of
the RCU and the second side in the connector in the rear panel of the
projector labelled '
REMOTE '.
Projector address
a. Software set up of the projector address.
See 'Change Projector Address' in chapter 'Service mode'.
Every projector requires an individual address between 0 and 255
which is set in the Service mode. Only projectors with addresses
between 0 and 9 can be controlled with the RCU.
b. How to control the projector.
The projector's address may be set to any value between 0 and 255.
When the address is set, the projector can be controlled with :
- the RCU for addresses between 0 and 9.
- Computer, e.g. IBM PC (or compatible), Apple MAC, etc. for
addresses between 0 and 255.
Note : A projector will respond to an RCU set to an address of '0'
regardless of what address is set in the projector itself.
c. Using the RCU.
Before using the RCU, it is necessary to enter the projector address
into the RCU (only when that address is between 1 and 9). The
projector with the corresponding address will listen to that specific
RCU.
When address 0, 'zero address' is programmed into the RCU, every
projector, without exception will listen to the commands given by this
RCU.
How to display a projector address?
Press the ADDRESS key (recessed key on the RCU) with a pencil.
The projector's address will be displayed in a 'Text box'. This text box
disappears after a few seconds.
PROJECTOR
ADDRESS
001
