Location and Function of Controls
2-2 5975977 BARCODATA 708 260597
Control panel terminology
a. The local keypad
Gaining access

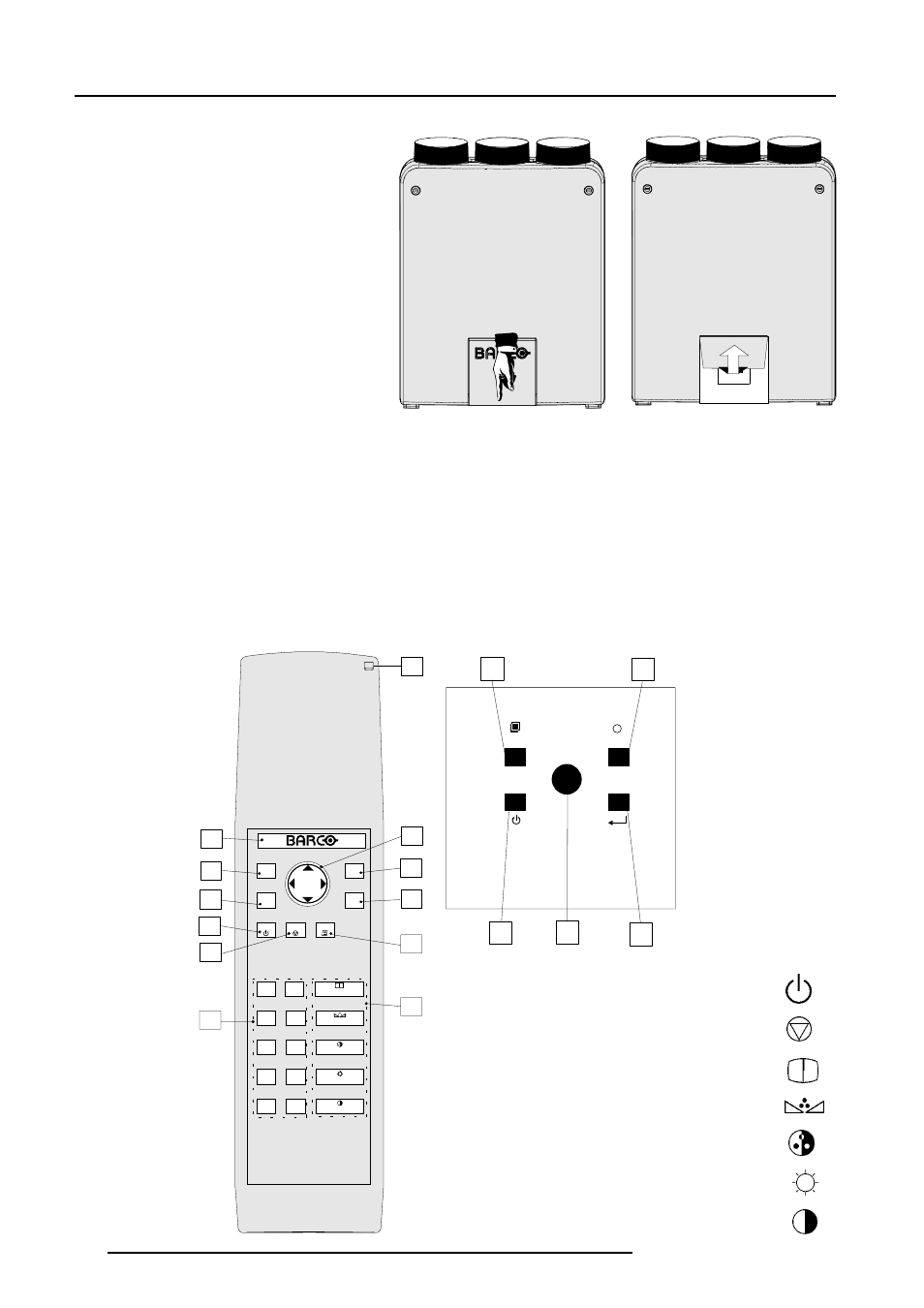

The local keypad is covered by a door on
which the projector logo is screened.
To open this door, push as indicated on
next drawing and turn it to the front side
of the projector.
ADJ UST
STANDBY ENTER
EXIT
b. RCU control panel terminology
This remote control includes a battery powered infrared (IR) transmitter that allows the user to control the projector remotely.
This remote control is used for source selection, control, adaptation and set-up. It includes automatic storing of :
- picture controls (Brightness, Sharpness,....)
- picture geometry adjustments
- convergence adjustments
Other functions of the remote control are:
- switching between standby and operational modes
- switching to "pause" (blanked picture, full power for immediate restarting)
- direct access to all connected sources
- variable adjustment speed : when pushing continuously on the arrow keys or the picture keys, the adjustment will be executed in an
accelerated fashion.
- +
- +
- +
- +
- + 0 9
7 8
6 5
4 3
2 1
ENTER
11
10
9
7
1
2
3
4
5
6
12
32c
PAUSE
8
TEXT
EXIT ADJ
STBY
SHARPNESS
TINT
COLOR
BRIGHTNESS
CONTRAST
ADJUST
STANDBY ENTER
EXIT
2
4 11 9
10 RCU Local keypad
stand-by
sharpness
pause/park
tint
color
brightness
contrast
