Connections
3 - 2 5975977 BARCODATA 708 260597
Source No Projector input Press digit button
1 Comp. Video 1
2 S-Video*/Comp. Video 1 2
3 RGBS or RGsB** 3
3 RGB3S or RG3sB*** 4
3 (R-Y)Y(B-Y)S or
(R-Y)Ys(B-Y)**** 5
3 (R-Y)Y(B-Y)3S or
(R-Y)Y3s(B-Y)*****
6

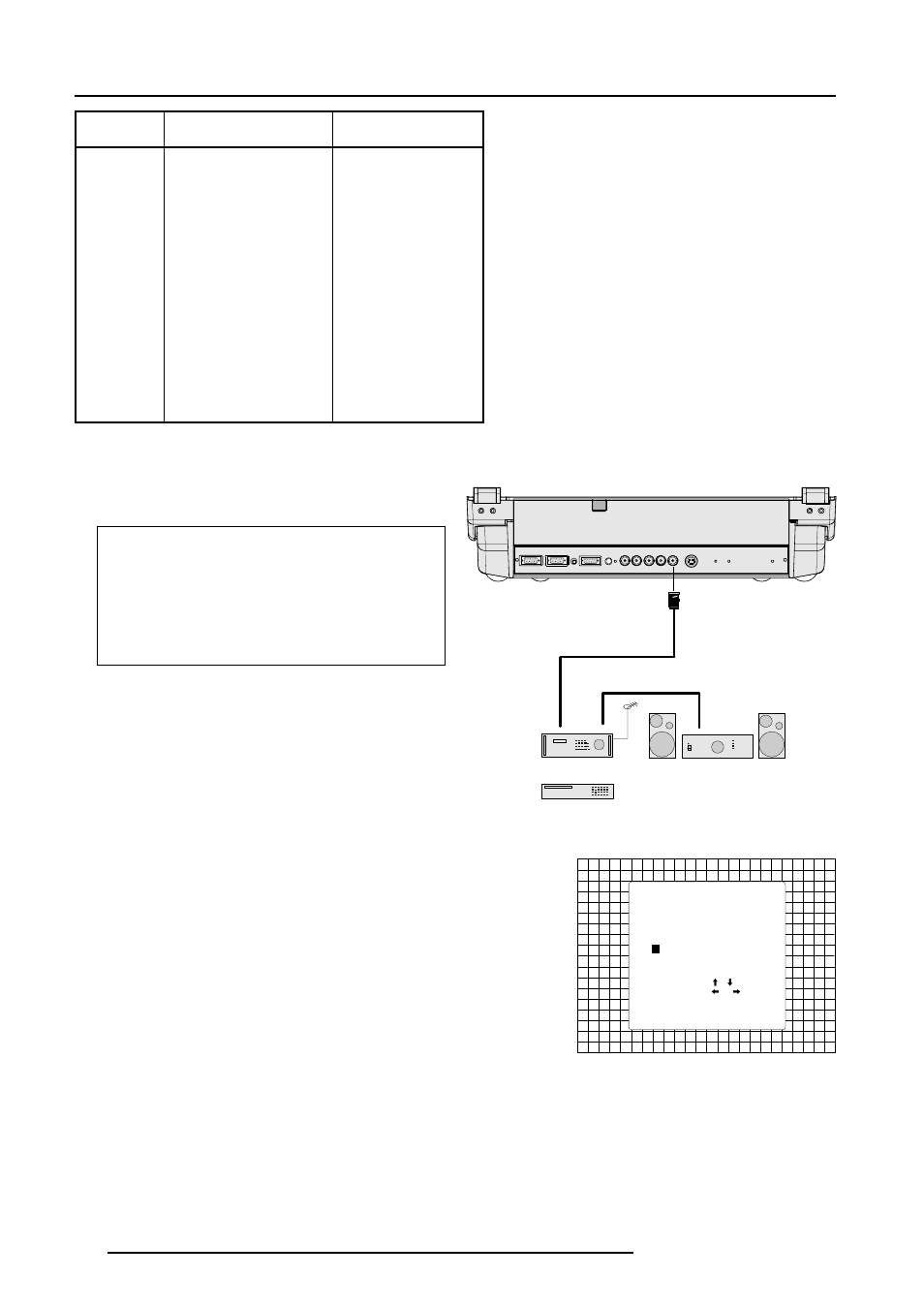

Connecting a Composite Video source.
Composite video signals from a VCR, OFF air signal decoder,
etc..
TV tuner, e.g. TVDM40 stereo
VCR
Audio amplifier
Composite
video
COMM PORT
(800 peripherals) REMOTE R G(S) B S VIDEO S-VIDEO R-Y Y(S) B-Y RS232 OUT RS232 IN
If a line doubler is built in :
the default position of this line doubler is ON (active), the
video input signal will be displayed as a non interlaced image
(= improved image stability).
To enable or to disable this line doubler function, enter the
adjustment mode and change the position of the ON/OFF
toggle switch (see Picture tuning in chapter 'Guided' adjust-
ment mode or 'Random access' adjustment mode).
Video input selection :
a. with the RCU : press digit button 1 or
b. with the local keypad.
(for access to the local keypad, see 'Local keypad' in chapter
'Location and function of controls'.)
- press ADJUST key, the General access menu is displayed
on the screen.
GENERAL ACCESS
Select with ,
or
then .
to return
SHARPNESS
TINT
COLOR
BRIGHTNESS
CONTRAST
5 6
3 4
1 2
Enter ADJUST
- use the control disk to highlight 1 .
- press ENTER to select the highlighted source.
* Input signal Y/C (luma/chroma)
** Input signal : R, G and B with composite sync on G or
separate composite sync
*** Input signal : R, G and B with Tri level sync on G or
separate Tri level sync.
**** Input signal : R-Y, Y and B-Y with composite sync on Y
or separate composite sync
***** Input signal : R-Y, Y and B-Y with Tri level sync on Y or
separate Tri level sync.
1 Video or S-Video : switchable in the Picture Tuning
menu.
