Random Access Adjustment Mode
6-11 5975977 BARCODATA 708 260597

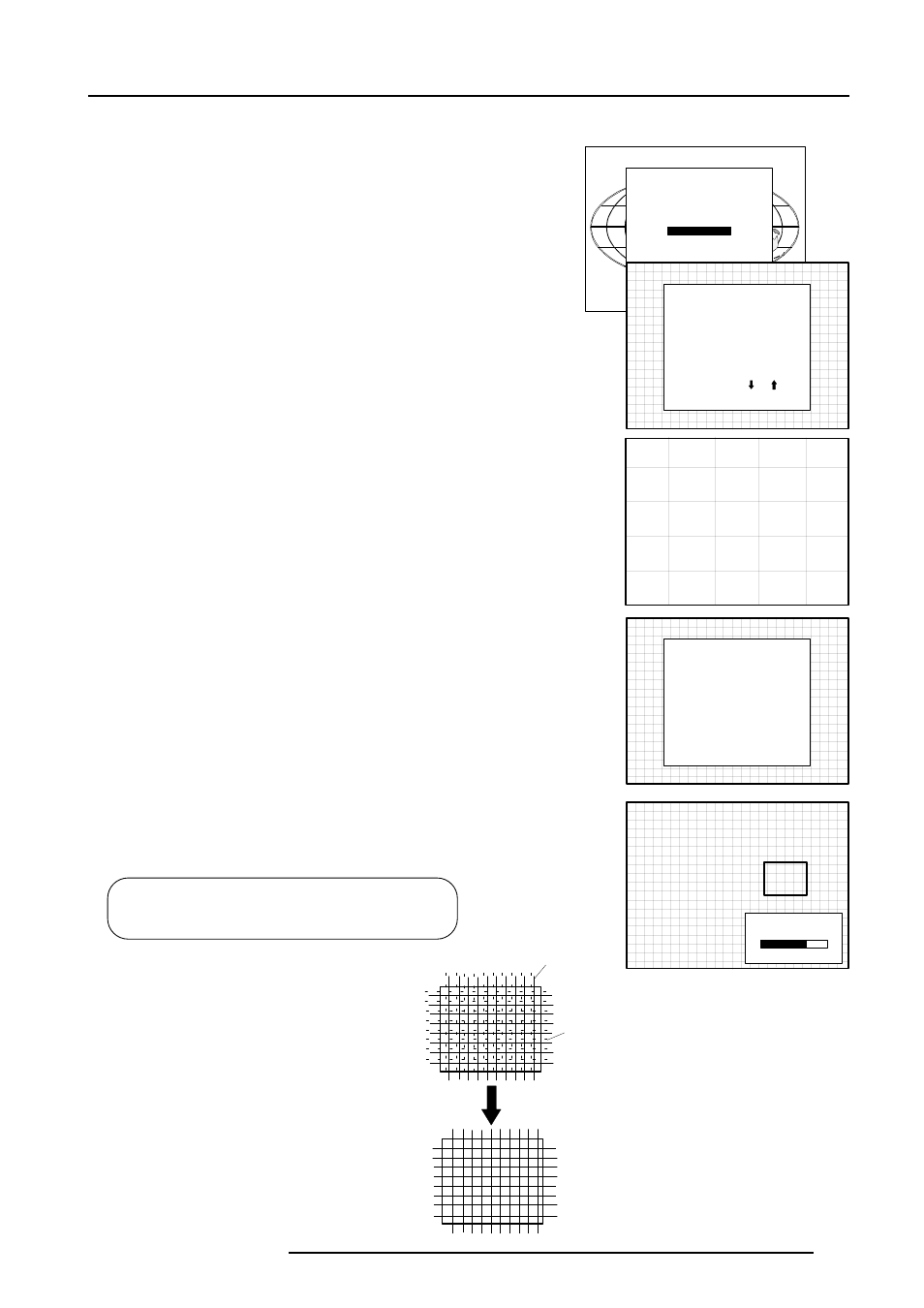

Convergence Adjustment
Convergence adjustments affect both the horizontal and vertical
lines of the setup pattern. These adjustments are performed on the
red image while superimposed on the green image and then on the
blue image while superimposed on the green image.
Note : the green convergence adjustments can be added as an
option. When these are available, start always with 'green only'. This
option will also be indicated on the convergence menu.
Highlight first 'Green only' when available by pushing the control disk
up or down and press ENTER to display the convergence adjustment
menu.
Select with or
then
to return.
CONVERGENCE
Select with or
then
to return.
GREEN ONLY
RED ON GREEN
BLUE ON GREEN
The screen area is divided into 25 areas.
25 23 9 15 17
24 22 8 14 16
5 4 1 2 3
20 18 6 10 12
21 19 7 11 13
RANDOM ACCESS
ADJUSTMENT MODE
PICTURE TUNING
GEOMETRY
CONVERGENCE
COLOR SELECT
CONVERGENCE
SEL : select area
using
arrow keys
ADJ : adjust area
using
arrow keys
Toggle between
SEL and ADJ
with
continue
to return
CONVERGE
ADJUSTMENT
70
Use the control disk to move the box to the desired zone and then
press
ENTER to begin the convergence adjustment. Start the
convergence adjustment with zone one and continue as mentioned
in the diagram hereafter.
Use the control disk to make horizontal or vertical convergence
adjustments in the selected zone and then press
ENTER to move the
box to another zone or EXIT to return to the Convergence menu.
ENTER toggles the control disk between zone selection and
zone adjustment .
EXIT returns to convergence menu
red image
green image
