Connections

3 - 4

5975977 BARCODATA 708 260597

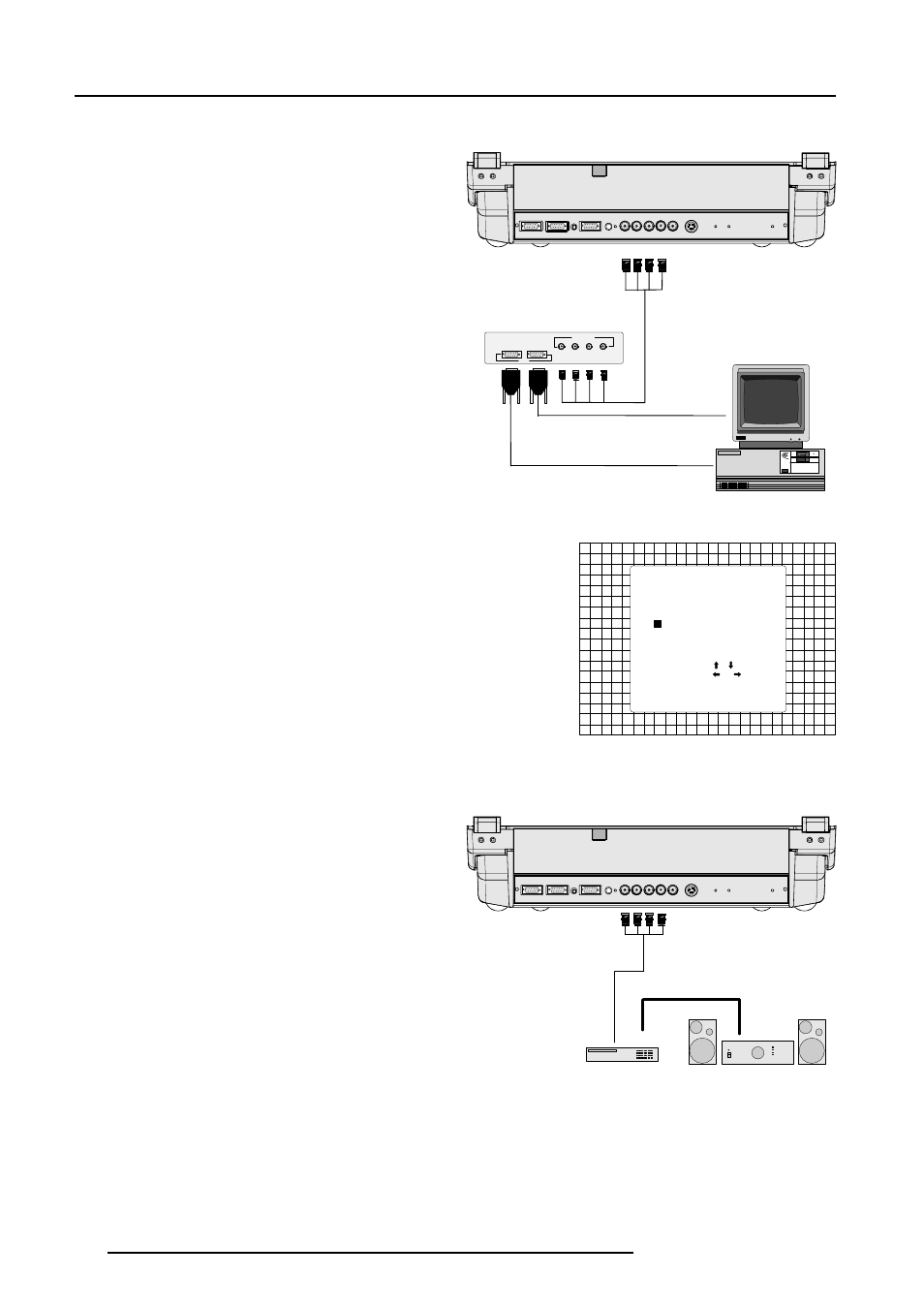

Connecting a RGB Analog source with composite sync.

RGB analog input terminals with composite sync input or with
sync on green. The projector detects automatically where the
sync signal is located.
Always use an interface when a computer and local monitor
have to be connected to the projector. Examples of interfaces
which can be applied :

Universal analog interface

R9826100

RGB 120 MHz Analog Interface

R9826570 (230V)

Multifunctional Analog Interface Kit

R9828120 (230V)

(MAGIK)

R9828129 (120V)

VGA interface

R9828070 (230V)
R9828079 (120V)

MAC interface

R9828050 (230V)
R9828059 (120V)

COMM PORT

(800 peripherals)

REMOTE

VIDEO

S-VIDEO

AAAA

ANALO G O UT

I NP UT

G( S)

R-Y

Y(S)

B-Y

RS232 OUT

RS232 IN

RGBS or RGsB input selection

a. Press digit button 3 on the RCU or

b. With the local keypad :

(to gain access to the local keypad, see 'Local keypad' in chapter
'Location and function of controls'.)

- Press

ADJUST

key, the General access menu is displayed on

the screen.

- Use the control disk to highlight

- Press

ENTER

to select the highlighted source.

GENERAL ACCESS

Select with ,
or
then .

to return

SHARPNESS

TINT

COLOR

BRIGHTNESS

CONTRAST

5 6

1 2

Enter ADJUST

Connecting a RGB Analog source with Tri-level sync.

RGB analog input terminals with Tri level sync input or with Tri-
level sync on green. The projector detects automatically where
the sync signal is located.
