Connections
3 - 3
5975977 BARCODATA 708 260597

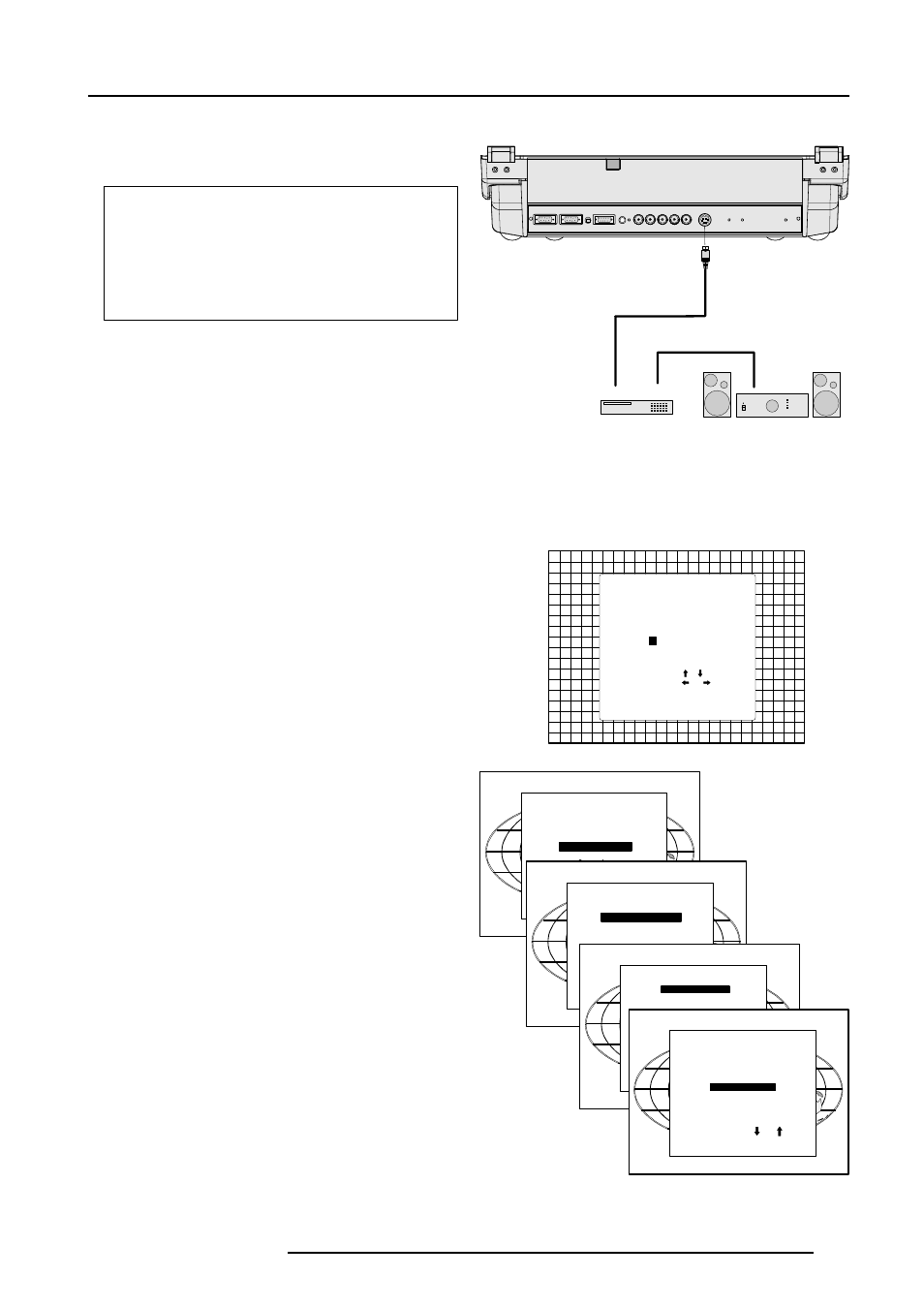

Connecting a S-Video or Video source to port 2.
Separate Y-luma/C-chroma signals for higher quality playback of
Super VHS signals.
COMM PORT
(800 peripherals)
REMOTE
S
VIDEO
S-VIDEO
VCR S-VHS
Audio amplifier
Luma/Chroma
R
G(S)
B
R-Y
Y(S)
B-Y
RS232 OUT
RS232 IN
If a line doubler is built in :
the default position of this line doubler is ON (active), the video
input signal will be displayed as a non interlaced image (=
improved image stability).
To enable or to disable this line doubler function, enter the
adjustment mode and change the position of the ON/OFF
toggle switch (see Picture tuning in chapter 'Guided' adjust-
ment mode or 'Random access' adjustment mode).
Input selection
a. with the RCU : press digit button 2 or
b. with the local keypad.
(for access to the local keypad, see Local keypad in chapter
Location and function of controls.)
- press
ADJUST
key, the General access menu is displayed on the
screen.
- use the control disk to highlight
2
.
- press
ENTER
to select the highlighted source.
GENERAL ACCESS
Select with ,
or
then
SHARPNESS
TINT
COLOR
BRIGHTNESS
CONTRAST
5 6
3 4
1
2
Enter ADJUST
Select with or
then
ADJUSTMENT MODE
Select a path from below :
GUIDED
RANDOM ACCESS
INSTALLATION
SERVICE
IRIS
Source 02
Select with or
then
Choose a setup pattern
from below :
SELECTED SOURCE
GENLOCKED PATTERN
INTERNAL # PATTERN
Source 02
Select with or
then
RANDOM ACCESS
ADJUSTMENT MODE
PICTURE TUNING
GEOMETRY
CONVERGENCE
FOCUSING
COLOR SELECT
ORBITING
CONTR. MODULATION
SOFT EDGE
Select with or
PICTURE TUNING
COLOR BALANCE
SYNC : FAST
PORT2 : S-VIDEO
LINE DOUBLER : ON
Depending on the priority setting in the 'Picture Tuning menu', Video
or S-Video can be displayed.
If the setting is not correct, start up the adjustment mode by pushing
on the
ADJUST
key.
Select 'Random Access' and press
ENTER
.
Select 'Selected source' and press
ENTER
.
Highlight 'Picture Tuning' and press
ENTER
.
Highlight 'Port 2 : Video' and press
ENTER
to toggle between VIDEO
and S-VIDEO.
Press
EXIT
to return.
Press
ADJUST
to return to operational mode.
