Accessories for Control Panels and Keypads | Expansion Modules | 71

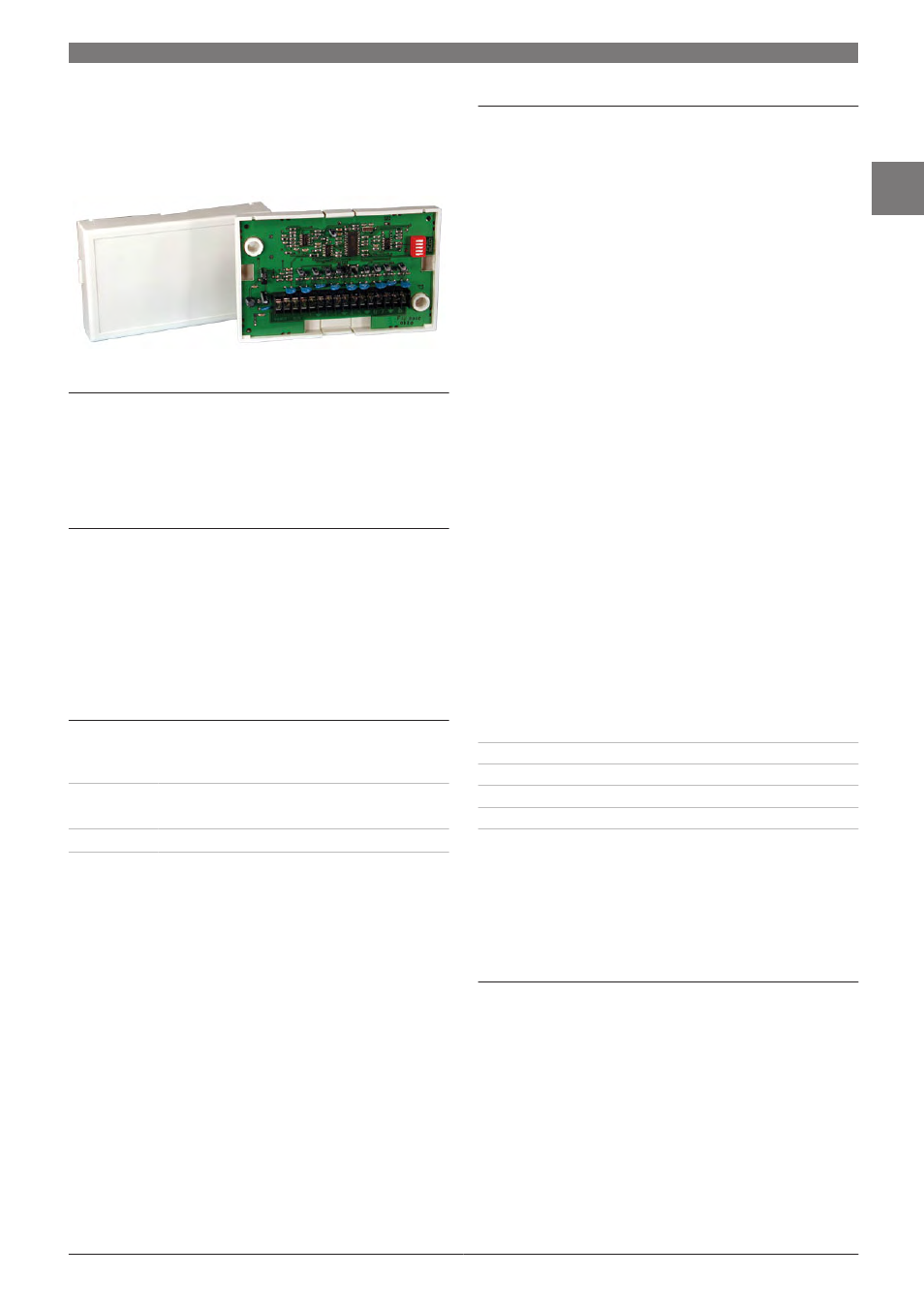

DS7432 Series Eight‑input
Remote Modules
Features
▶ Address up to eight input loops
▶ Serial dual end-of-line (EOL) wiring with tamper status
(DS7432E)
The DS7432 Series Eight-input Remote Modules include the
DS7432 and the DS7432E. Both modules address up to
eight input loops of conventional contacts to the multiplex
bus of the control panel. The DS7432E has an additional
serial dual end-of-line (EOL) wiring configuration. The
DS7432E addresses up to sixteen input contacts (alarm and
tamper for each loop).The DS7432 uses one 47 kΩ resistor
per input. The DS7432E uses 22 kΩ + 47 kΩ per input.
Certifications and Approvals
Region Certification
Europe CE DS7432
DS7432E
Belgium INCERT
USA UL DS7432: AMCX: Central Station Alarm
Units (UL1610, UL1635), AOTX: Local
Alarm Units (UL464, UL609), APAW:
Police Station Alarm Units (UL365,
UL464), NBSX: Household Burglar Alarm
System Units (UL1023), UOXX: Control
Unit Accessories, System (UL864, 9th
edition), UTOU: Control Units and
Accessories - Household System Type
(UL985)
CSFM DS7432: 7165-1615: 113, 7165-1615:
119, 7170-1615: 144, and 7170-1615:
145
NYC-MEA DS7432: 274-94-E, Vol. IV
DS7432: 274-94-E, Vol. III
Installation/Configuration Notes
Compatibility Information
The DS7432 Series modules can only connect to the
following control panels with an attached multiplex
expansion module.
Control Panels D9412GV2 Control Panel
D7412GV2 Control Panel
D9412G Control Panel
D7412G Control Panel
DS7400XiV4 Control Panel
DS7400Xi Control Panel
Multiplex Modules D8125MUX Multiplex Bus Interface
DS7430 Multiplex Expansion Module
DS7436 Multiplex Expansion Module
Note The DS7432E is compatible with the
D9412GV2, D9412G, D7412GV2, and D7412G
when the PCB jumper is set to DS7432 mode.
Number of Modules
The number of DS7432 Series Modules connected to a
system depends on the control panel.
Control Panel Number of Multiplex Expansion
Modules
DS7400Xi
DS7400XiV4
D9412GV2, D9412G
D7412GV2, D7412G
Up to 15
Up to 30
Up to 30
Up to 8
Wiring
Refer to the multiplex expansion module’s reference guide
for multiplex wiring requirements.
Maximum Impedance: 4.05 Ω at +20°C (+68°F) nominal
Distance (approximate)
Size
76 m 0.65 mm
193 m 1.02 mm
250 ft 22 AWG
600 ft 18 AWG
The recommended wiring to the control panel is quad (four-
wire) cable. Do not use shielded or twisted pair cable.
Note If used in fire applications, 18 AWG wire is
required.
Parts Included
Quantity Component
1
Eight-input remote module
1 Literature pack
www.boschsecurity.com Bosch Security Systems B.V.
