Detectors and Accessories | Magnetic Contacts Recessed Mount | 247

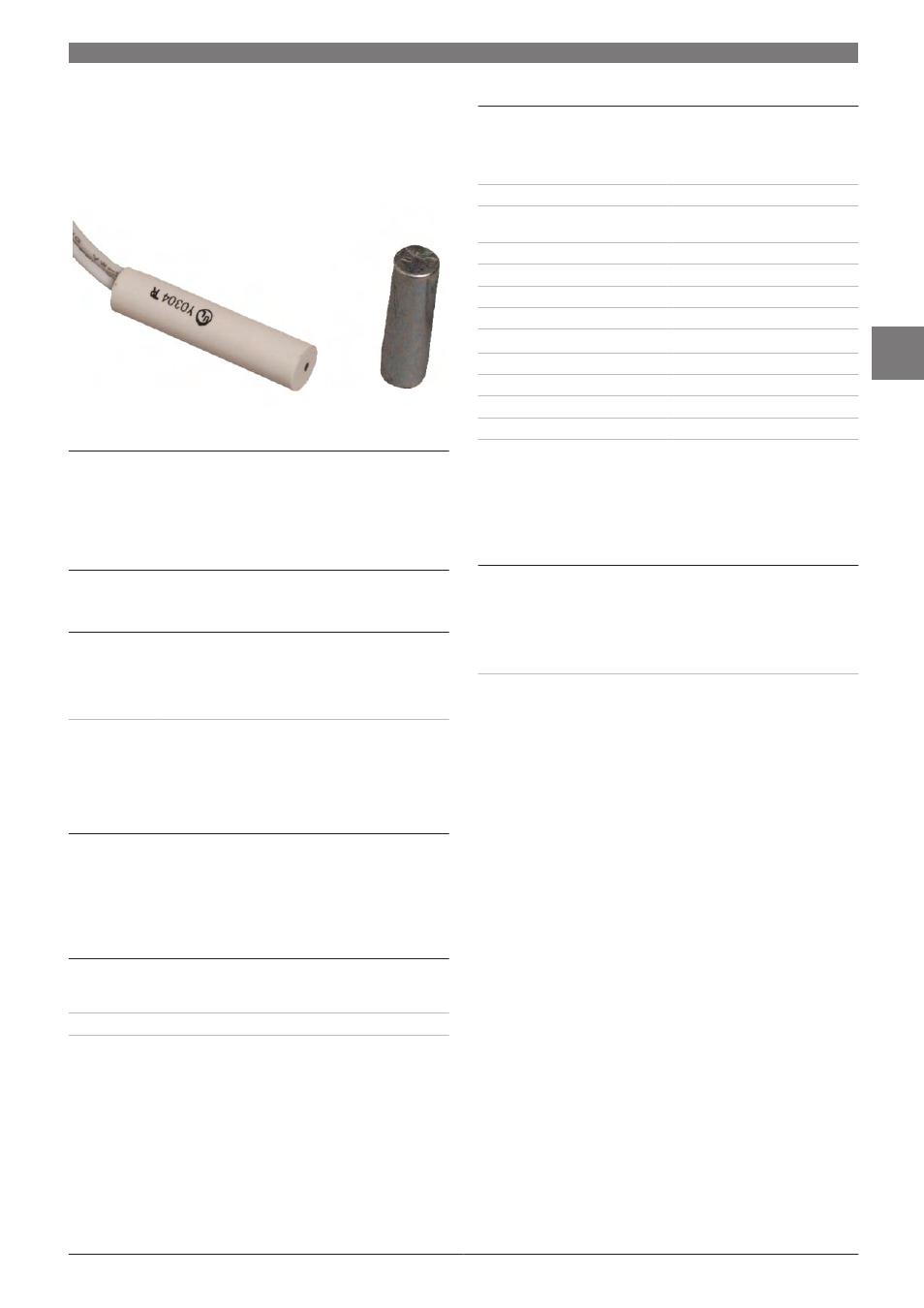

ISN‑CTAP‑15 Contacts
(6.35 mm)
Features
▶ Closed loop
▶ Long leads available
The contacts are available in brown or white.
Certifications and Approvals
UL and X
Region Certification
Europe CE 73/23/EEC and 93/68/EEC, EN50131:
1997, EN50131-6: 1997, EN60950:
2000, EN60335-1: 1994 +A1: 1996
Annex B
Installation/Configuration Notes
Compatibility Information
All contact models are compatible with control panel
models that accept contact inputs.
Parts Included
Quantity Per Package Component
10 Contacts
10 Magnets
Technical Specifications
Specifications for All Models
Gap Width: 19 mm (0.75 in.)
Contact Dimensions: 6.35 mm x 25 mm (0.25 in. x 1 in.)
Wire Lead Type: 0.8 mm (0.029 in.) 22 AWG, 7 strand-
ed
Wire Lead Length: 46 cm (18 in.) standard leads
Switch Configuration Type: Single pole single throw (SPST)
Maximum Contact Resistance: 150 μΩ (micro-ohm)
Minimum Breakdown Voltage: 250 VDC
Insulation Resistance: 10 10 Ω
Electrostatic Cap: 0.3 PF
Contact Capacity: 10 VAC
Maximum Conductive Current: 1.0 A
Maximum Voltage: 100 V
Operating Temperature Range: 7.2°C to -95.56°C (-45°F to -140°F)
Package Information
ATTENTION! Each package contains ten contacts and ten magnets.
Ordering Information
Brown Contact with Standard Magnet
Brown recessed contact with
6.35 mm (0.25 in.) diameter. Includes a stand-
ard magnet. Package contains ten contacts
and ten magnets.
ISN-CTAP-15B
White Contact with Standard Magnet
White recessed contact with
6.35 mm (0.25 in.) diameter. Includes a stand-
ard magnet. Package contains ten contacts
and ten magnets.
ISN-CTAP-15W
www.boschsecurity.com Bosch Security Systems B.V.
