Detectors and Accessories | Magnetic Contacts Recessed Mount | 261
EMK 46 Z Built-in magnetic
contact
Features
▶ Conventional flush-mount magnetic contact
▶ VdS class B
▶ Head-on or parallel flush mounting
▶ Conventional perimeter protection
▶ Can be used in the SPE blocking element (installed on
frames/doors) according to VdS Class B
Conventional magnetic contacts are used for opening
surveillance of windows and doors.
Certifications and Approvals
Region Certification
Europe CE EMK 46 Z
Germany VdS G 191563, B EMK 46
Installation/Configuration Notes
Installation notes
• Installation is head-on or parallel in door or window
frames.
•
Installation can be completed with or without a plastic
sleeve. If no plastic sleeve is used, the components
should be fixed in the bores.
• Installation in ferromagnetic materials is not
permissible.
•
The supply lines need to be measured electrically
before connection.

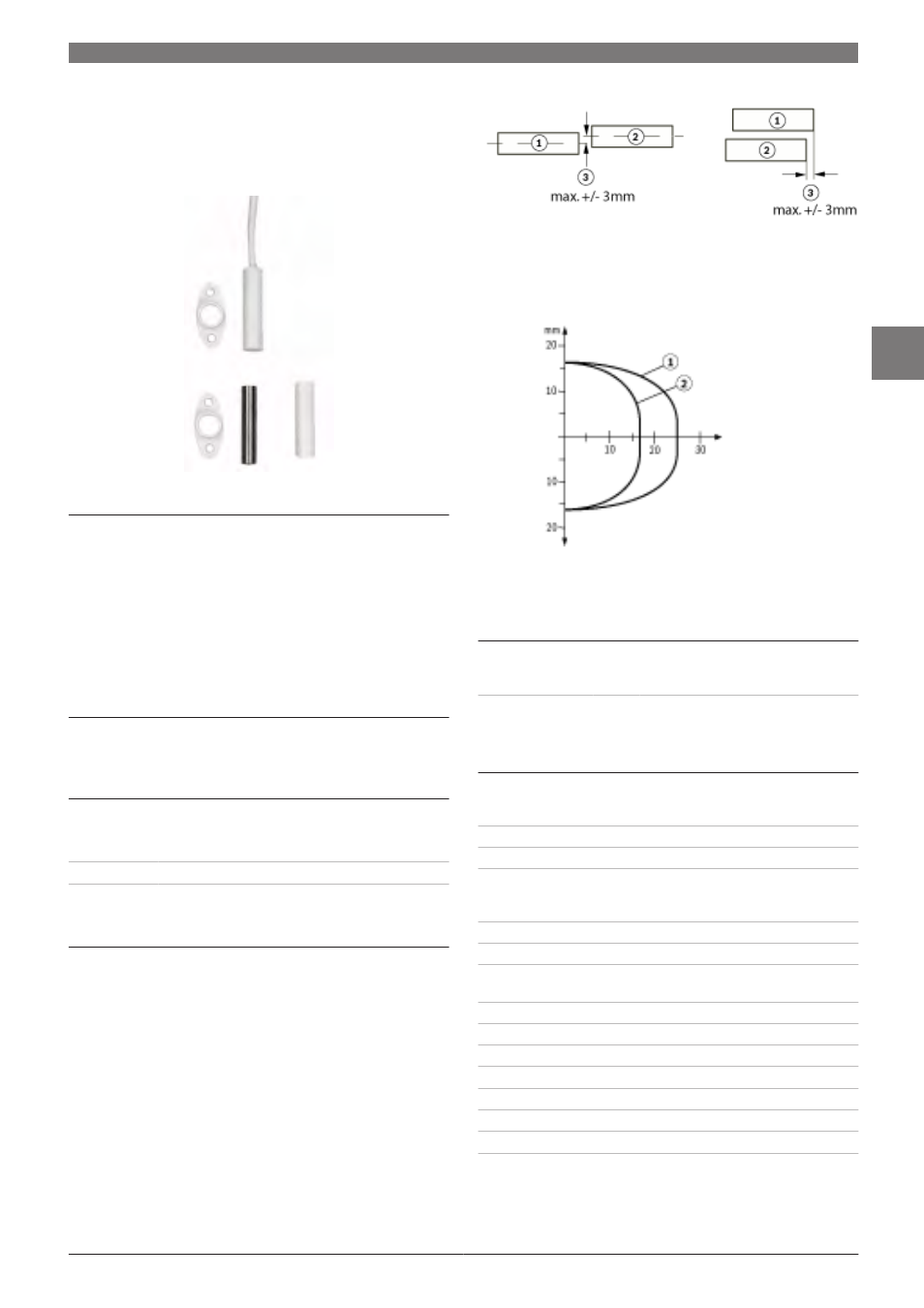

1 Contact
2 Magnet
3 Installation offset
Distances diagram
1 Extraction
2 Proximity switch part
Parts Included
Type Qty. Component
EMK 46 Z 1 Recessed mount magnetic contacts
incl. flange and sleeves
Technical Specifications
Type of installation Flush, head-on or parallel
Permissible operating voltage Max. 40 V_
Contact type 1-pin (normally) open contact
Permissible contact load 6 VA
Max. 100 V
Max. 500 mA
Protection category IP 67
VdS environmental class IV
Permissible
ambient temperature
-25 °C to +70 °C
Housing
•
Material ABS
• Color White
Dimensions
•
Contact 6 x 30 mm (Ø x L)
•
Magnet 6 x 30 mm (Ø x L)
• Plastic sleeve 8 x 31 mm (Ø x L)
•
Connection cable Ø 3.2 mm, 6 m long
www.boschsecurity.com Bosch Security Systems B.V.
