DSRF Premises Wireless | Bosch DSRF Transmitters | 481

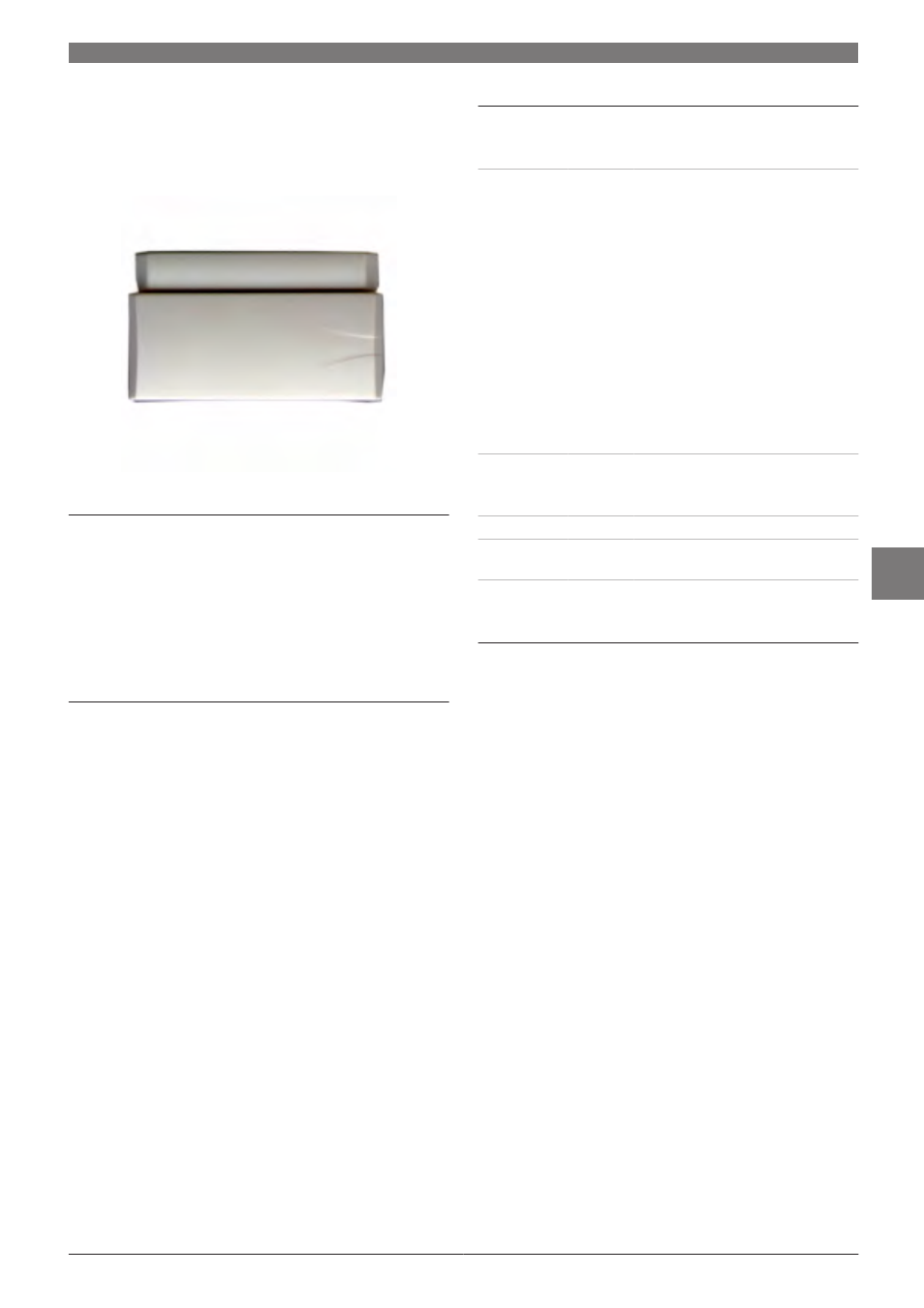

RF3401 Series RF Point
Transmitters
Features
▶ Supervised sensor loop
▶ Internal reed switch
▶ Supervisory signal at regular intervals
▶ Complete status sent with every transmission
▶ Cover tamper
The RF3401 Series Point Transmitters includes the
following models:
Model Supervision Signal Frequency
RF3401 65 minutes 304.00 MHz
RF3401E 15 minutes 433.42 MHz
Each transmitter model is magnetic and dry contact
wireless, and appropriate for monitoring doors, windows or
other dry contact devices. The models each have a cover
tamper switch and RF supervision. They also have the
capability to accept a supervised dry contact input from an
external device.
If there is no other activity, a low power level signal is
transmitted to the receiver to provide supervision. Each
transmission sends battery status information to the panel.
Certifications and Approvals
Region Certification
Europe CE RF3401E: 1999/5/EC, EN60950 1992
(2nd edition) +A1 (1993) +A2 (1993) +A3
(1995) +A4 (1997), EN55022-1 Class B
(1999), EN55024 (1998), EN50130-4
(1995) +A1 (1998) +A2 (2003),
EN61000-4-2 (1995), EN61000-4-3
(1997), EN61000-4-4 (1995),
EN61000-4-5 (1995), EN61000-4-6
(1997), EN61000-4-8 (1994),
EN61000-4-11 (1994), EN301489-3
(2000), ETS300683 (1997),
EN300222-1 (1997-99), EN300220-3
(1997-99)
RF3401E: 1999/5/EC, EN60950: 1993
+A1 +A2 +A3 +A4, EN300220-1: 1997,
EN300683: 1997
USA UL RF3401: AMQV: Connectors and Switches
(UL634)
FCC RF3401: ESV-0407-1
Canada IC RF3401: 12491021017
China CCC RF3401E and RF3401-CHI:
2005031901000075
Brazil ANATEL RF3401E: 1220-05-1855
Installation/Configuration Notes
For convenience, a quick install mounting base plate is
included.
Compatibility Information
The RF3401 Series RF point Transmitters are compatible
with the following combinations of receivers and control
panels:
Detector Receivers Control Panels
RF3401 RF3212 Solution Ultima 844, 862, and 880 con-
trol panels, CC488 control panels
RF3213 VR-8 control panel
RF3222 DS7400XiV4 control panels
RF3224 DS7240, DS7220, D6412, D4412
RF3401E RF3212E Solution Ultima 844, 862, and 880 con-
trol panels, CC488 control panels
RF3213E VR-8 control panel
RF3222E DS7400XiV4 control panels
RF3227E DS7240, CC7240-A Solution 40 control
panel
RF3228E Marise control panels
RF3249E DA (Abacus) control panels
