350 | LSN Peripherals | LSN Magnetic Contacts

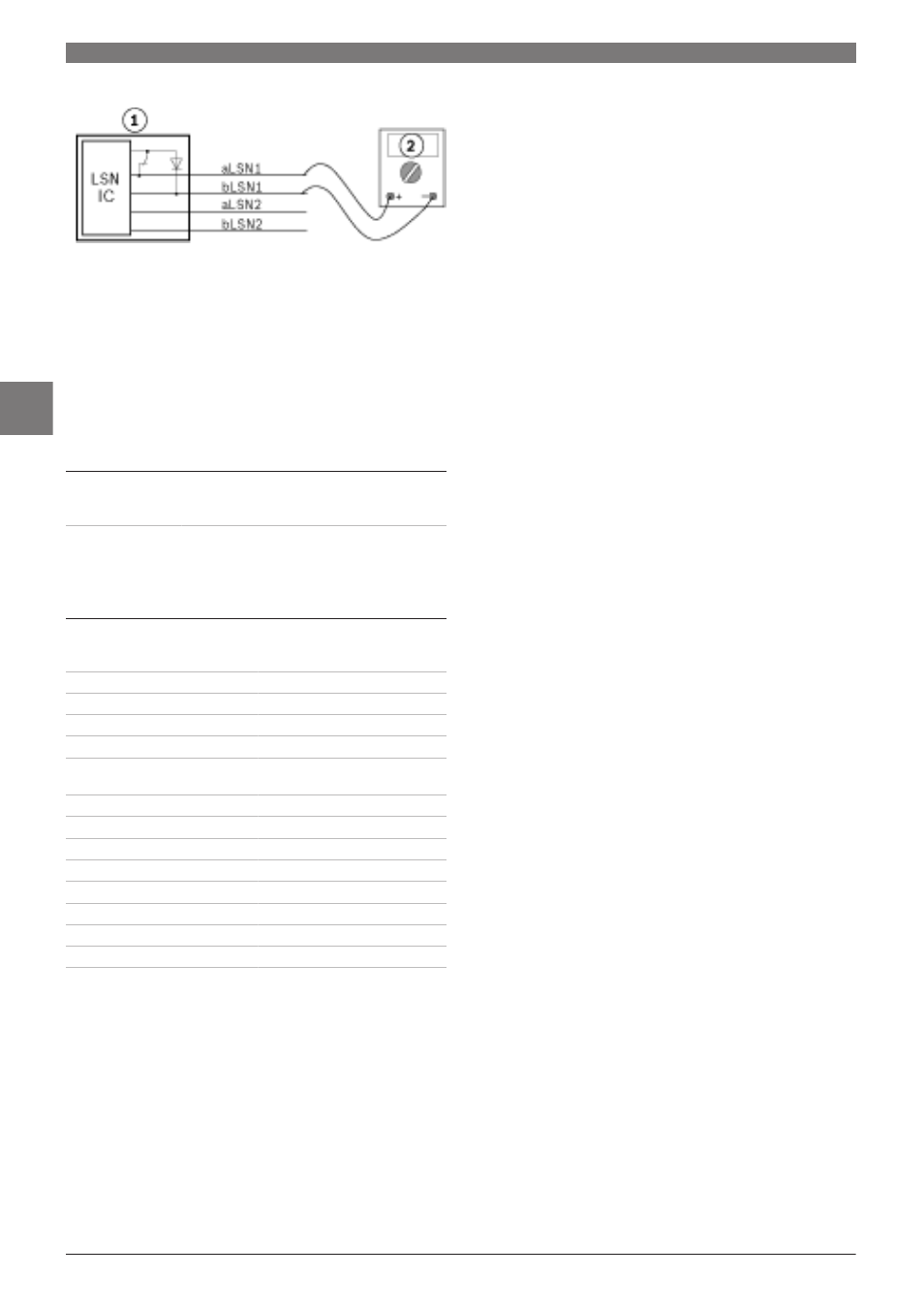

1 Detector
2 High-Ohm multimeter
Contact open: approx. 3 MOhm
Contact closed: approx. 1 megaohm
Note Only the intrusion contact can be checked in
this way. The tamper switch of the Class C
magnetic contact can be checked by the LSN
control panel or with the LSN testing device
(software version 3.x onward).
Parts Included
Type Qty. Component
MK 36 S LSN 1 Surface-mount magnetic contact
incl. flange, sleeves, and surface-mounting
housing with accessories
Technical Specifications
Type of installation Surface mount/parallel
LSN operating voltage 15 V to 33 V
Current consumption 0.4 mA
VdS environmental class III
Protection category IP 67
Permissible
ambient temperature
-25 °C to +70 °C
Housing
• Material ABS
•
Color White
Dimensions
• Contact 8 x 35 mm (Ø x L)
• Magnet in plastic sleeve 8 x 20 mm (Ø x L)
•
Connection cable Ø 3.2 mm, length 4 m
•
Surface mounting housing 54 x 13 x 12.5 mm
Wire colors aLSN1: orange
bLSN1: brown
aLSN2: orange
bLSN2: yellow
