Connecting up
8
En
Chapter 3
Connecting up

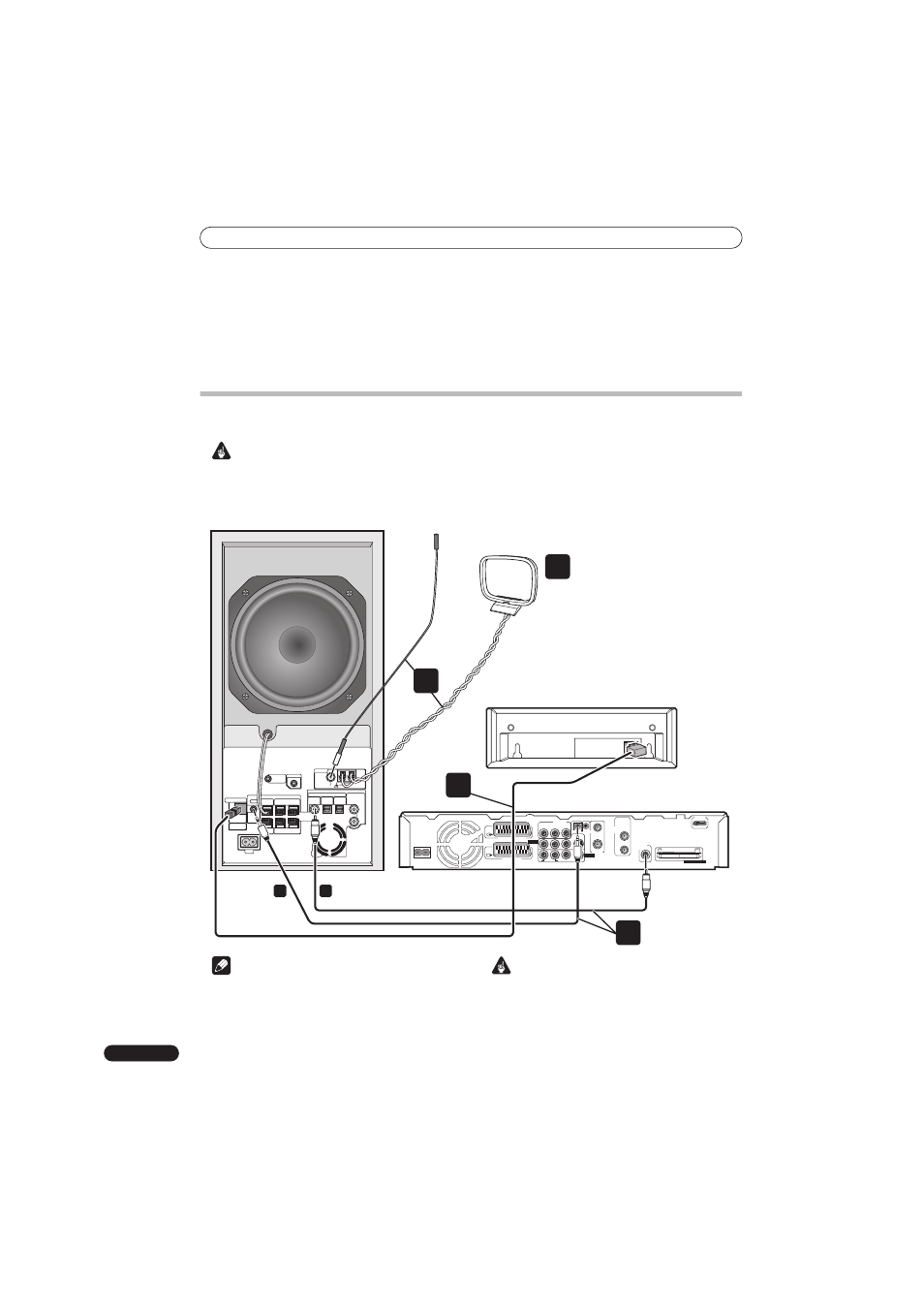

Basic connections
Important
• When connecting this system or changing connections, be sure to switch power off and disconnect the power
cord from the wall socket.
After completing all connections, connect the power cords to the wall socket.
Note
• When using the display unit in a wall-mounted
location, take full precautions to prevent the unit
from accidentally falling.
• Screws and other fixtures for use in wall mounting
are not included.
WARNING
• Pioneer bears no responsibility for accidents
resulting from faulty assembly or installation,
insufficient mounting strength of walls, mounting
fixtures (or other building fixtures), misuse or natural
disasters.
HDMI OUT
ANTENNA
IN
OUT
DIGITAL AUDIO OUT
COAXIAL
ANTENNA (DIGITAL)
IN
OUT
VIDEO L R
P R
COMPONENT VIDEO OUT
S-VIDEO
OUTPUT
INPUT3
IN
CONTROL G-LINK
AV 1 (RGB) – TV
AV 2 (INPUT 1/DECODER) AC IN
COMMON INTERFACE AUDIO
P B Y
SYSTEM CONNECTOR SPEAKERS DVD/DVR 2 (OPTICAL) SUB WOOFER
AC IN
CENTER
SURROUND DVD/DVR 1 (COAXIAL)
DIGITAL AUDIO INPUT
ANTENNA
FM UNBAL AM LOOP ANTENNA 75 Ω
ANALOG DIGITAL (OPTICAL) R L
R
L
FRONT R L
CONTROL
OUT
CONTROL IN MCACC SETUP MIC
USE ONLY WITH DISPLAY UNIT
AM loop antenna
Display unit
Receiver subwoofer (SX-SW505HX)
3
Display cable
2
FM antenna
4
DVD Recorder
(DVR-545HX-S)
Coaxial cable Control cable
1
a b
